Mission Specialist
Underwater robot designed for greater control, heavier payloads and demanding intervention
Thrusters
Depth Rating
(Deep Config)
Different Mission
Capabilities
Mission Specialist
Underwater robot designed for greater control, heavier payloads and demanding intervention
Thrusters
Depth Rating
(Deep Config)
Different Mission
Capabilities
Depth Rating
305 metres
(1000m Deep Config)
Max Tether Length
1500 metres
Navigation

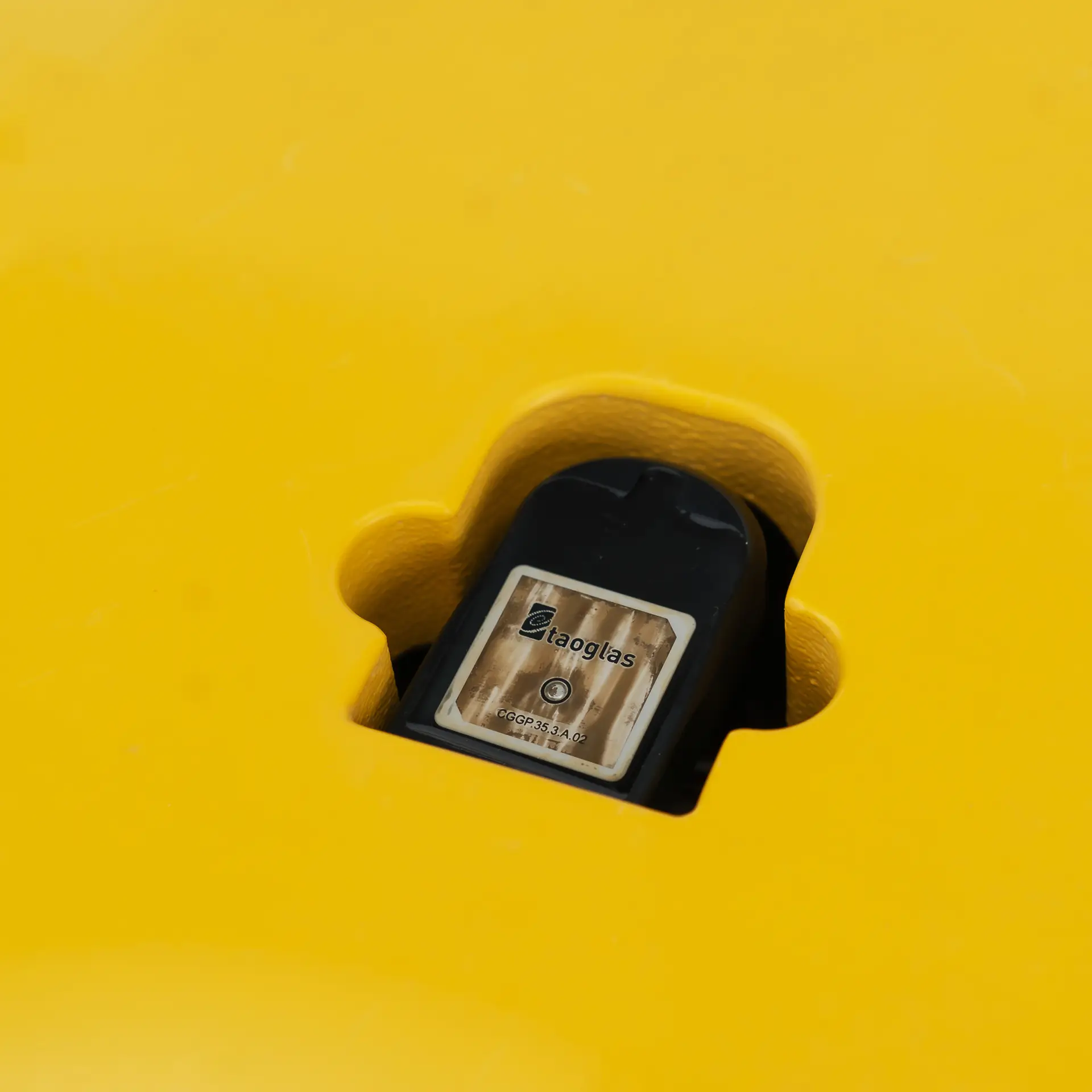

Autopilot DVL & GPS
Mobility
6-axis: Surge, Heave, Yaw,
Sway, Pitch, & Roll
Weight
17.2kg (38lbs)
Size (L x W x H)
71 x 40 x 24 cm
Thanks to its six-axis control and powerful thruster configuration, the Defender allows users to maintain accurate positioning in difficult environments—reducing operator fatigue and improving mission success rates.

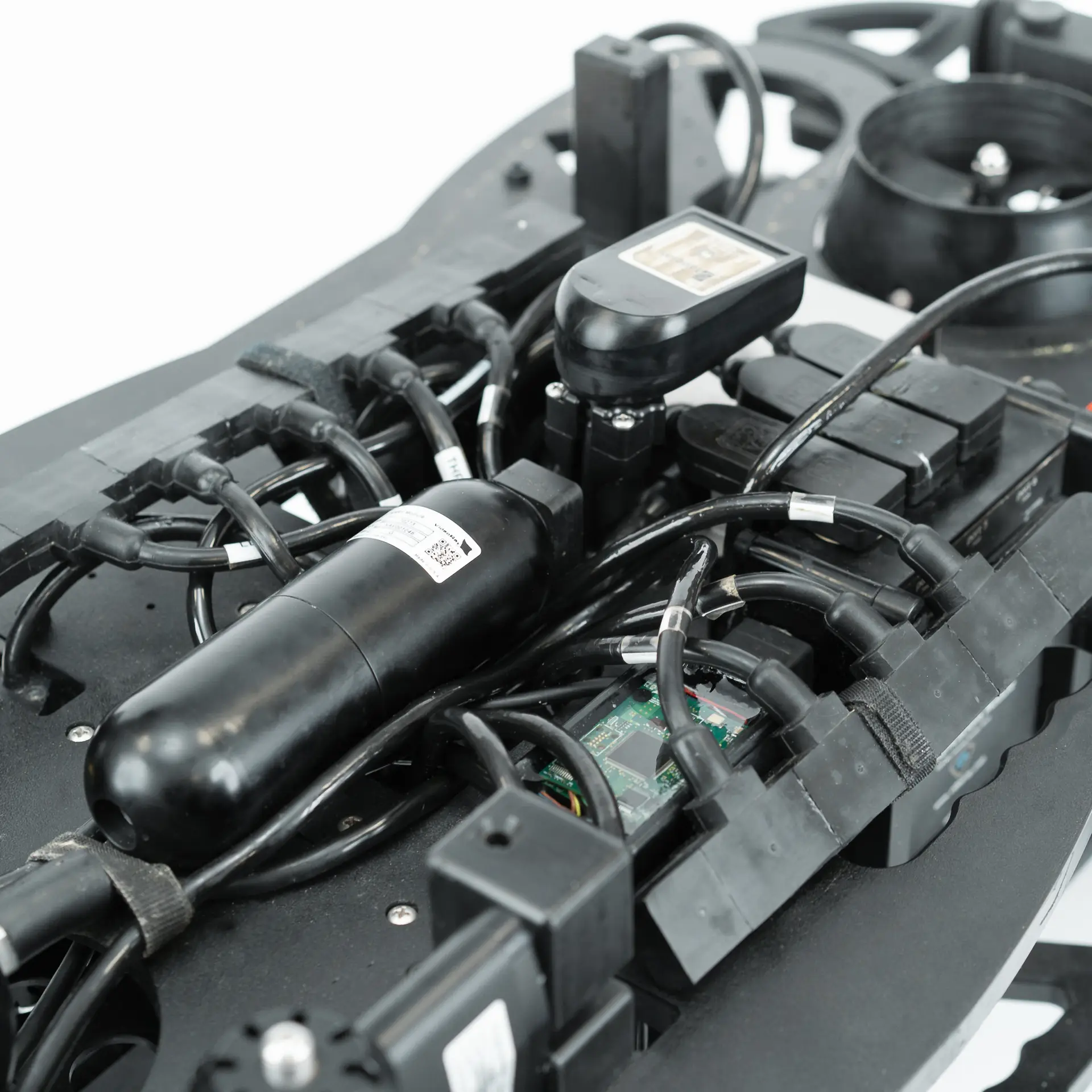

The Defender’s modular architecture allows rapid configuration for a wide range of tasks. Components like cameras, sensors, and manipulators can be easily swapped or upgraded, reducing downtime and expanding capability across multiple missions.
With the option for long-range fibre optic tethers and on-board battery power, the Defender can access hard-to-reach sites without relying on complex surface power setups—unlocking operational flexibility wherever the work takes you.

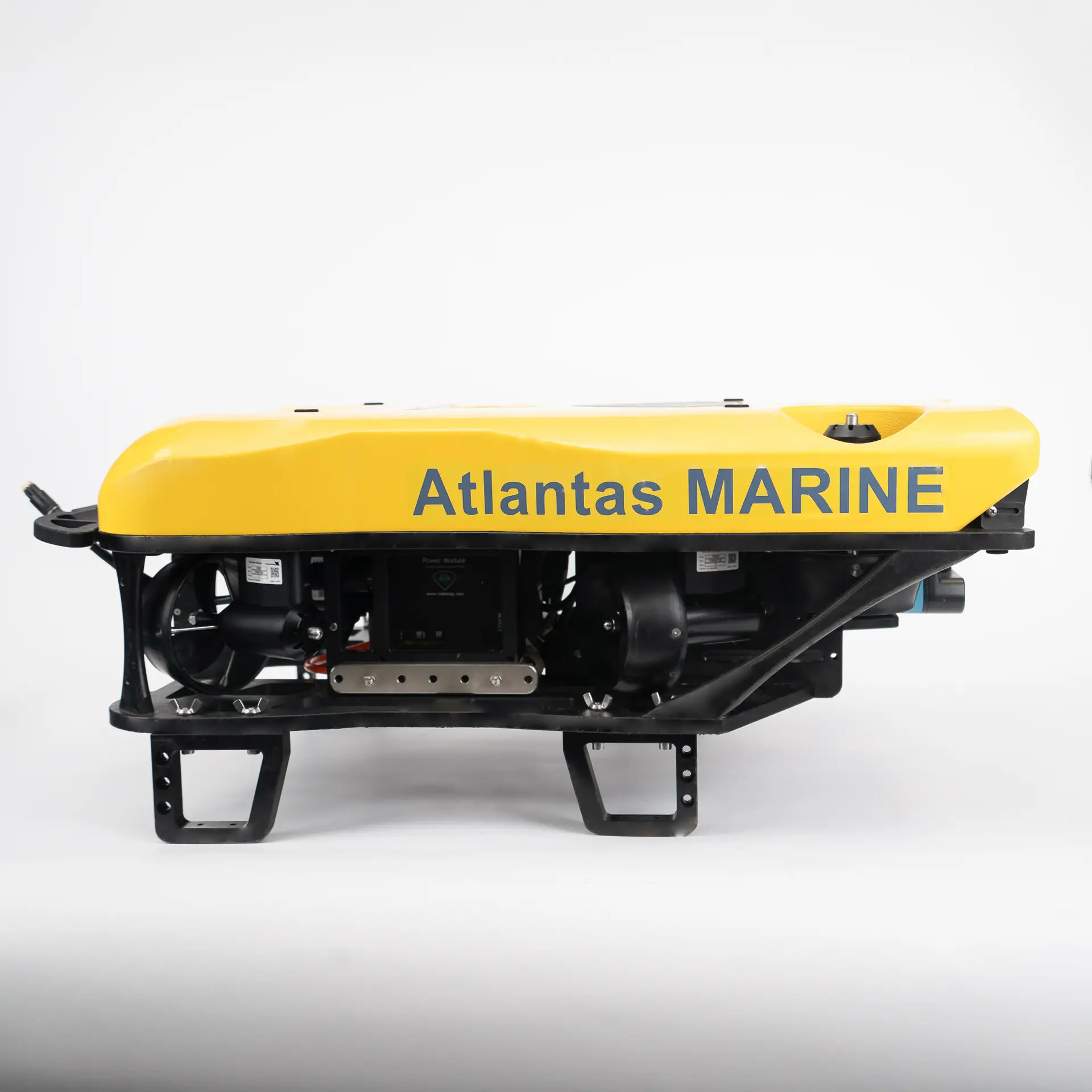

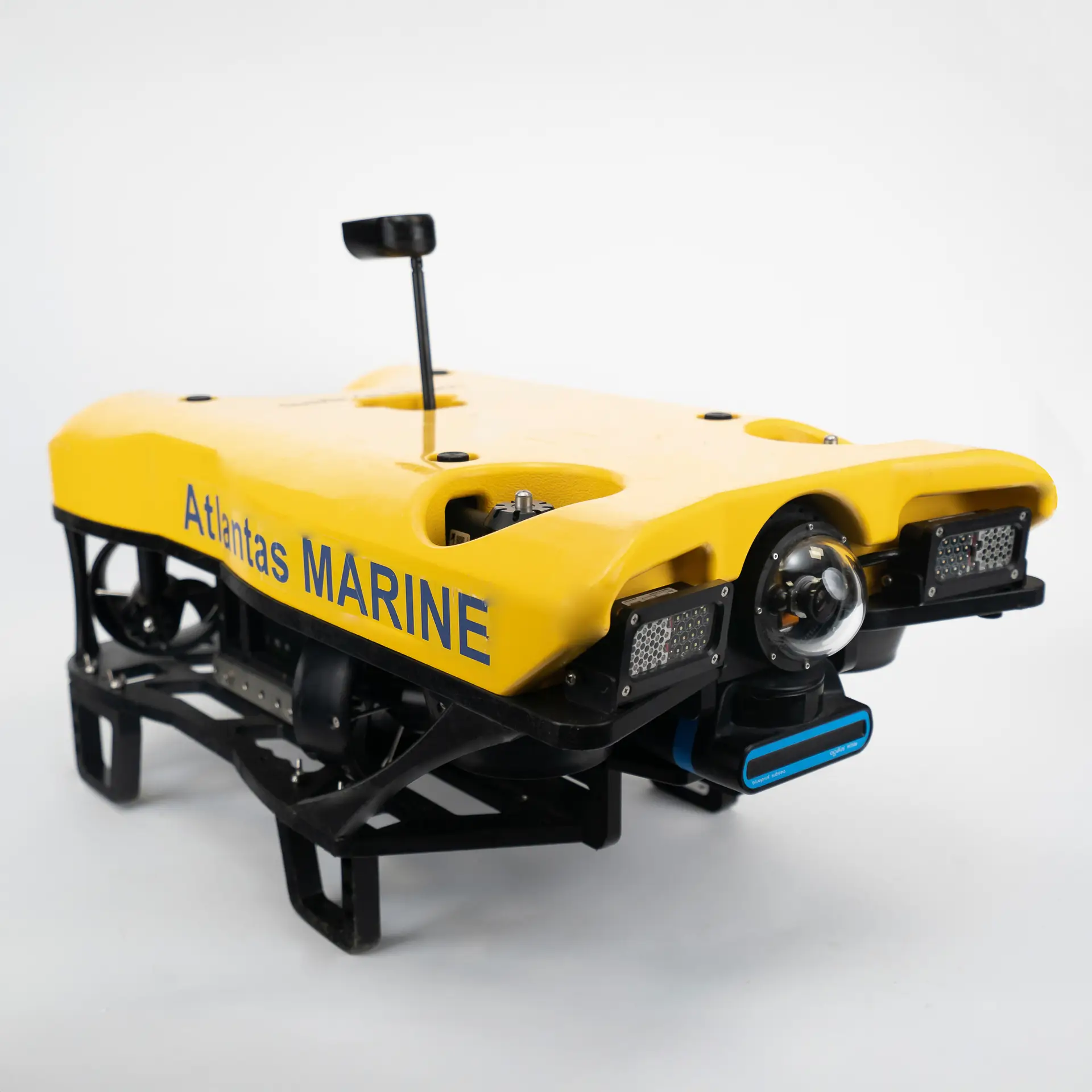

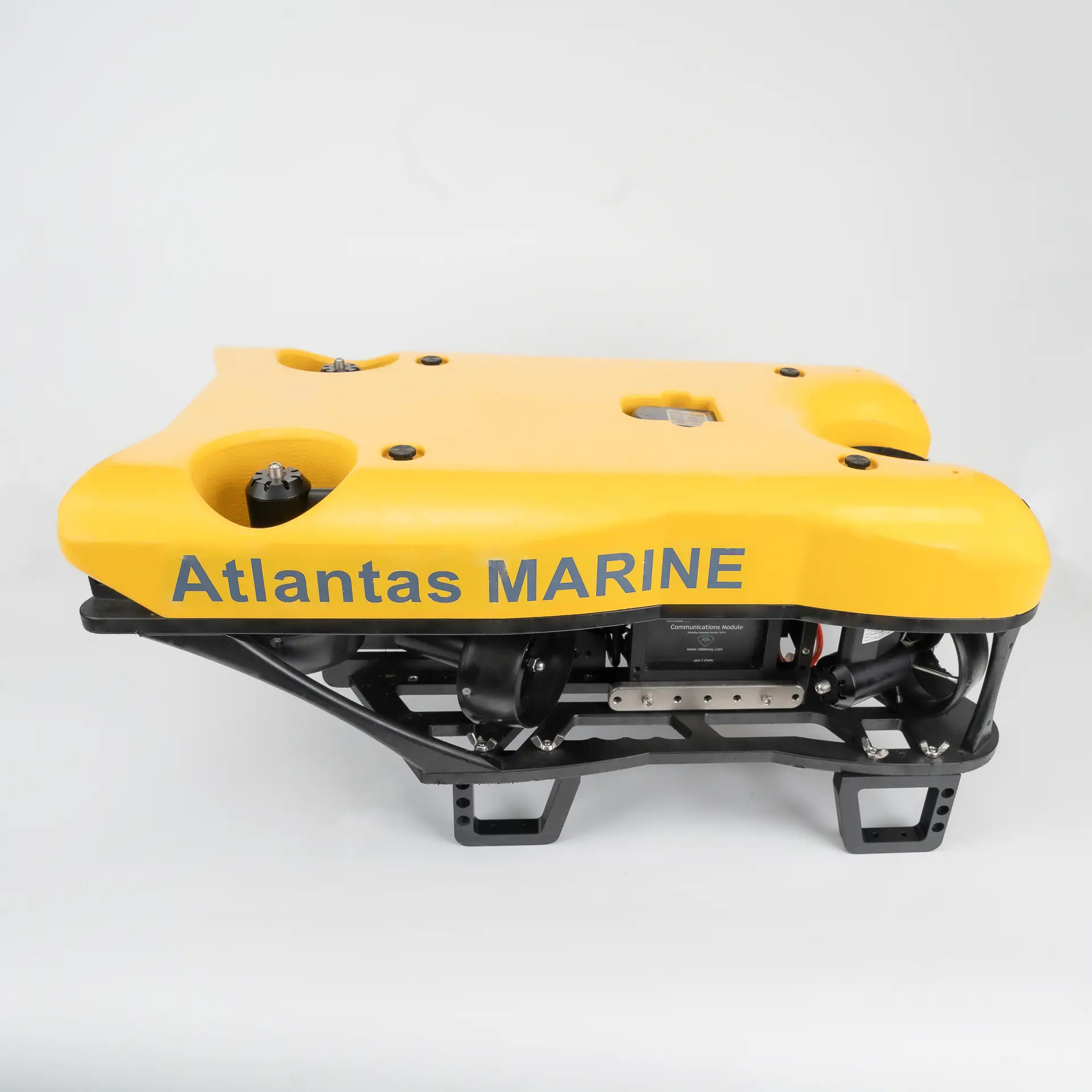

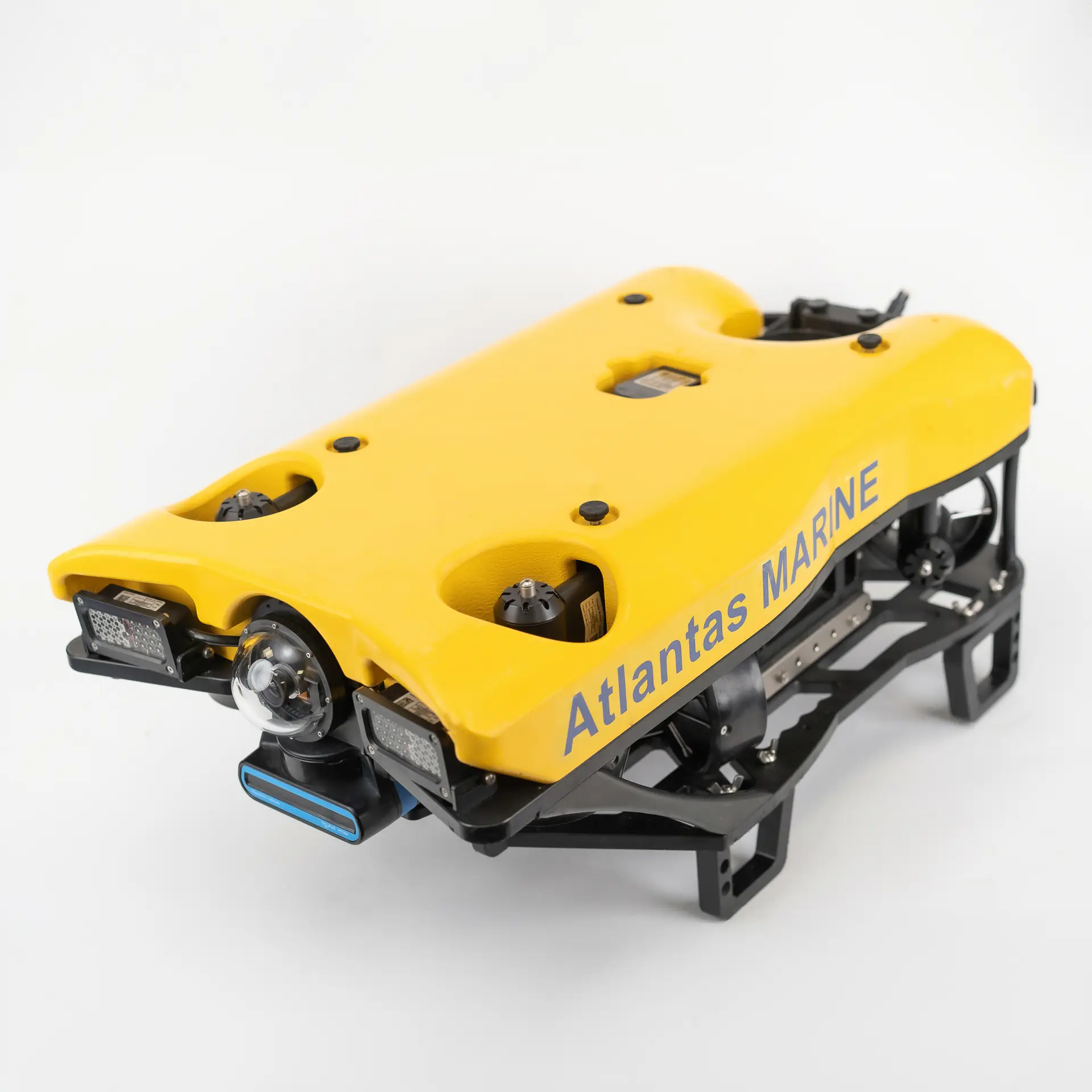

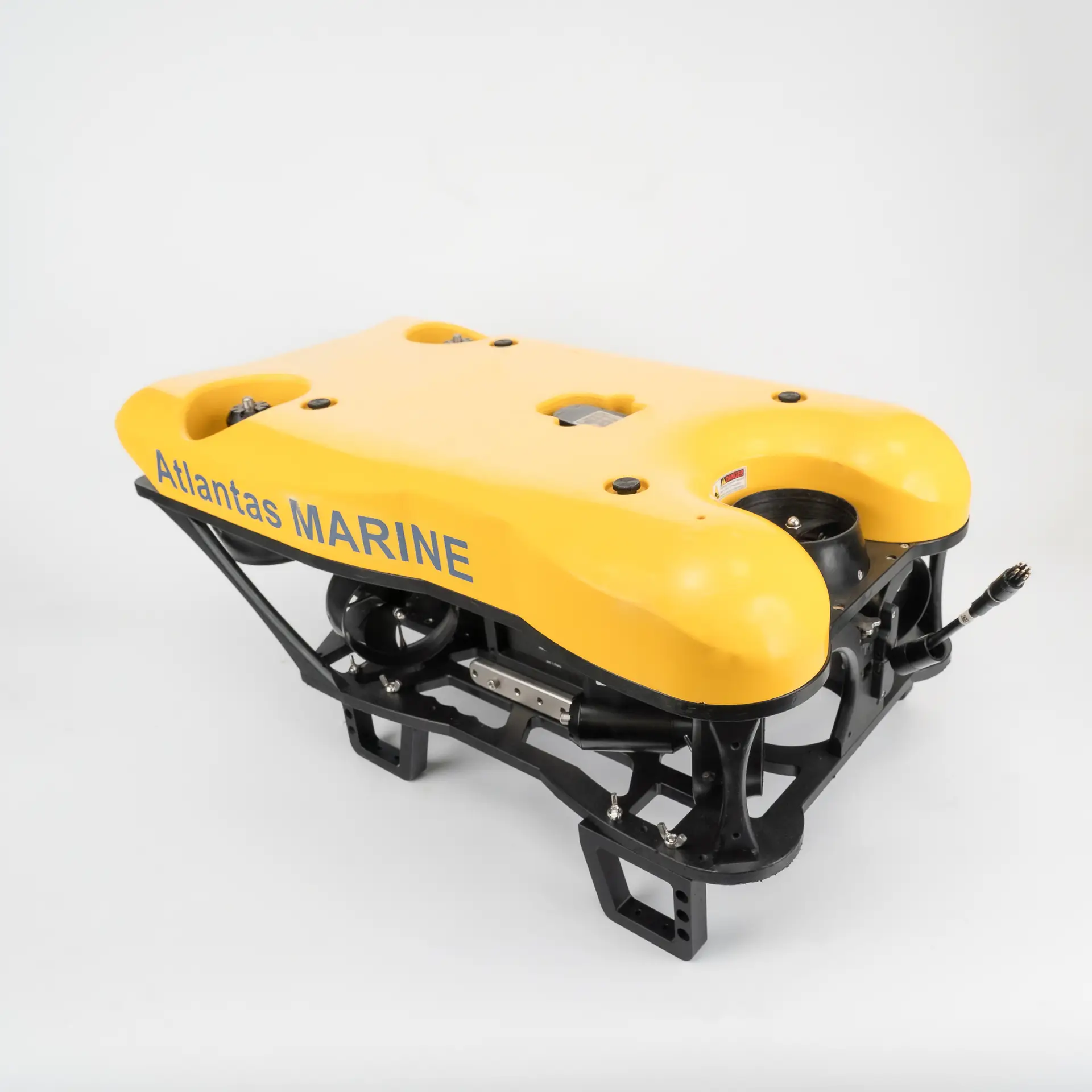

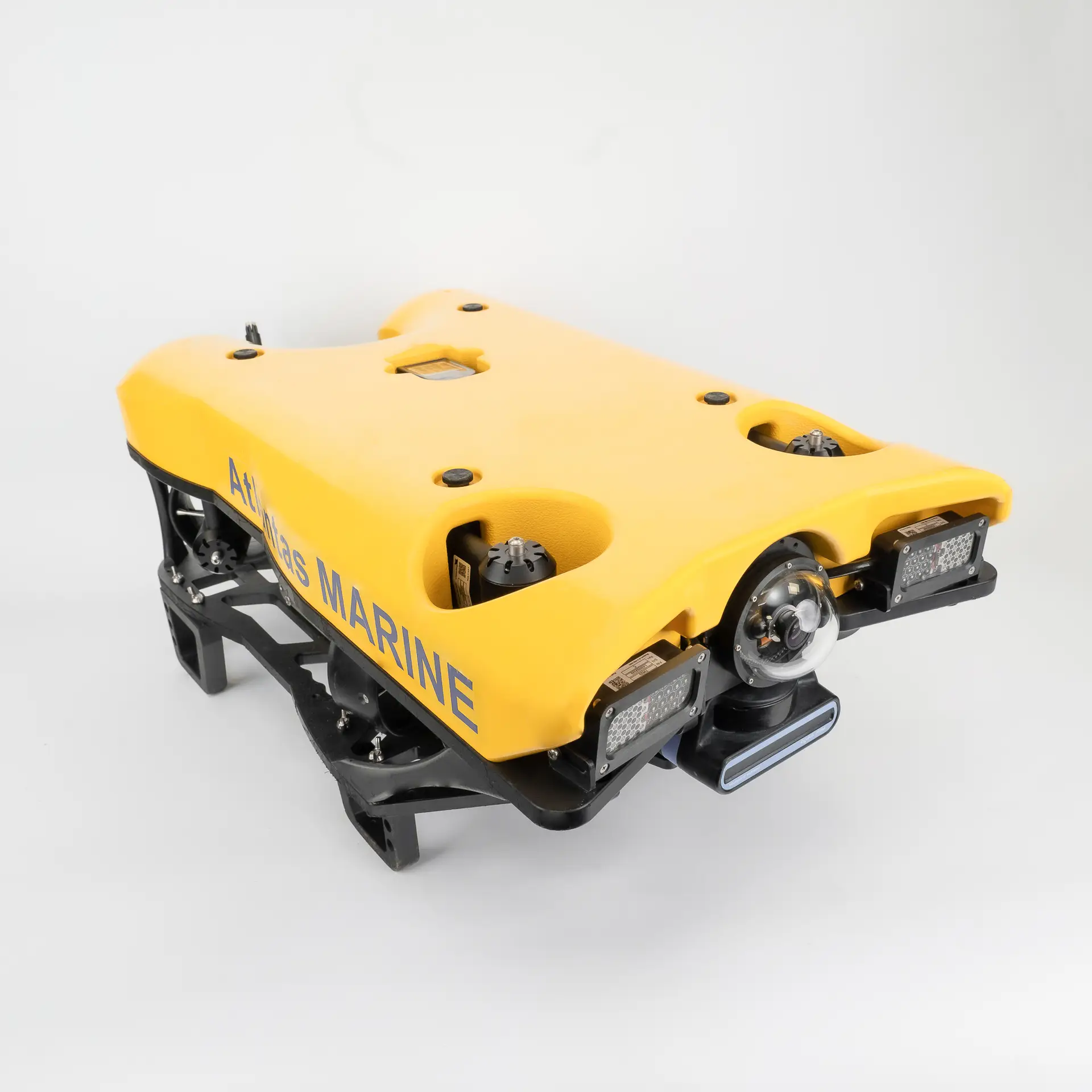

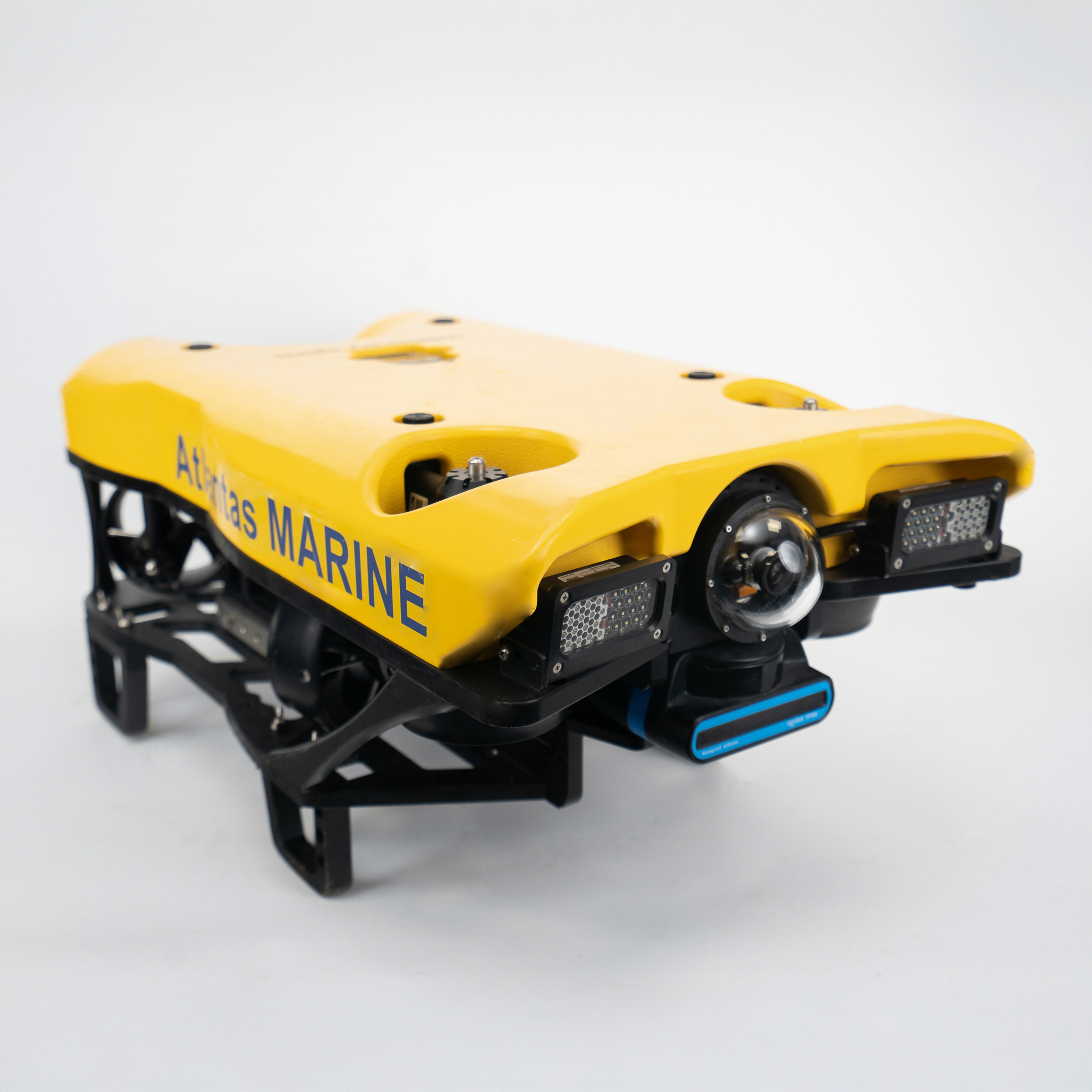

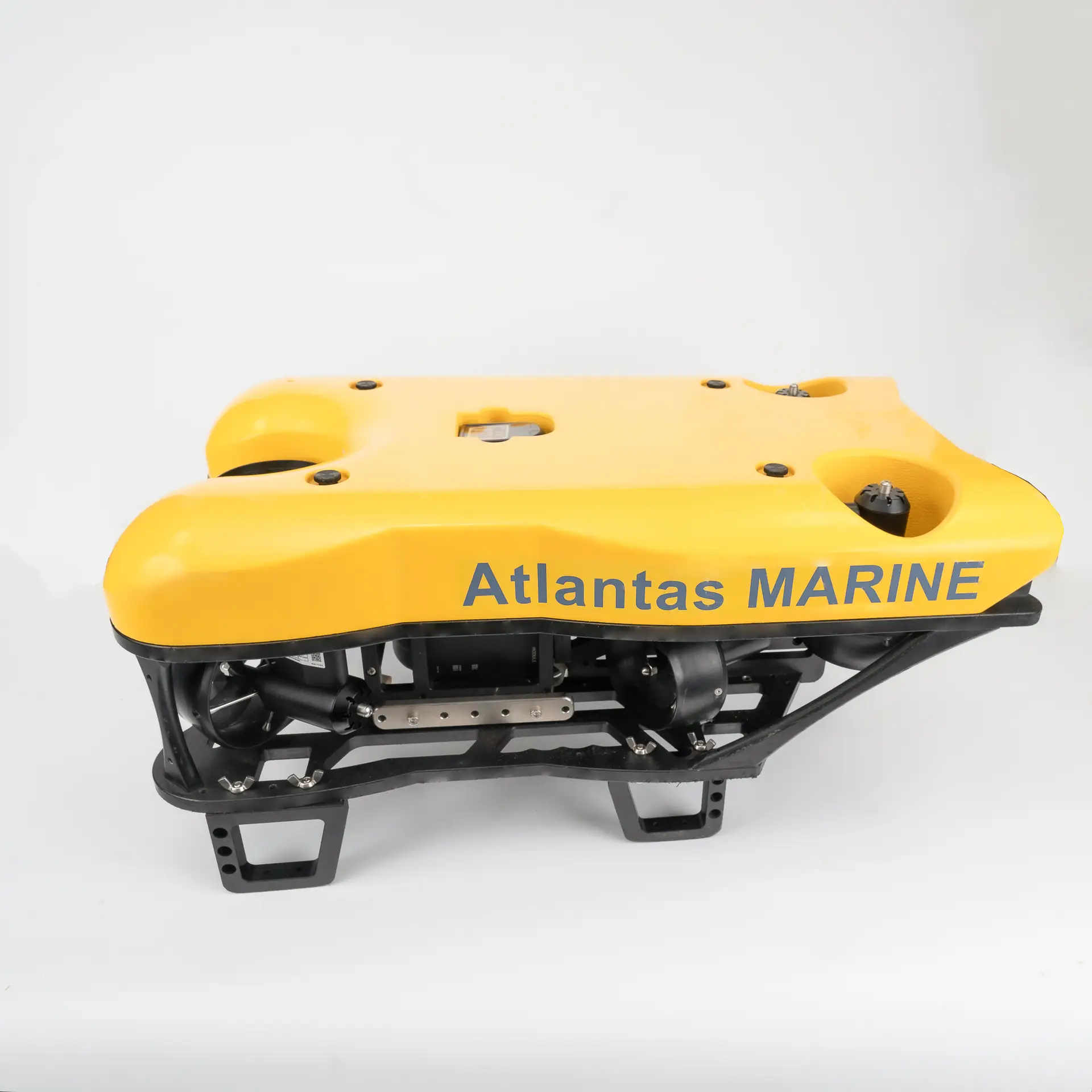

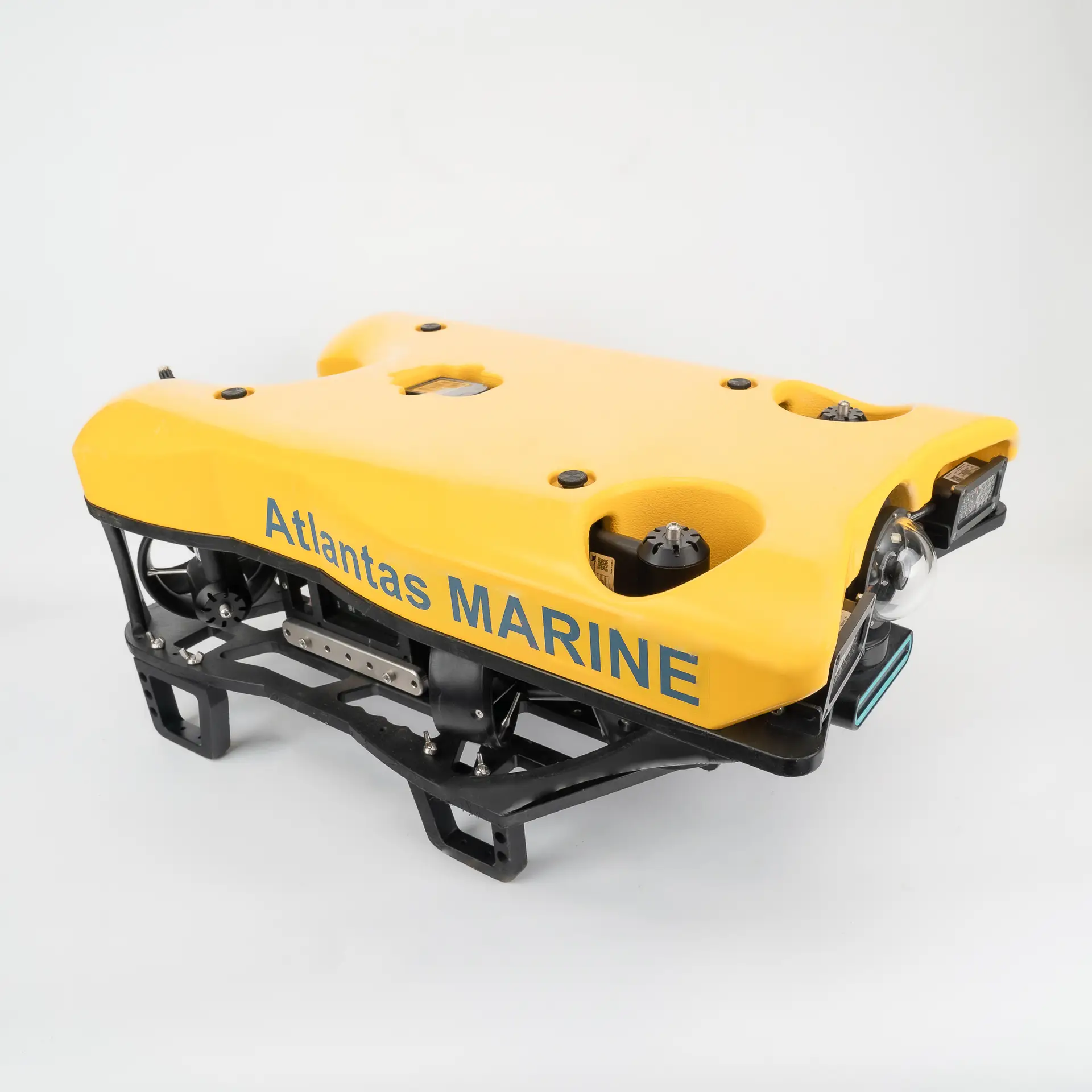

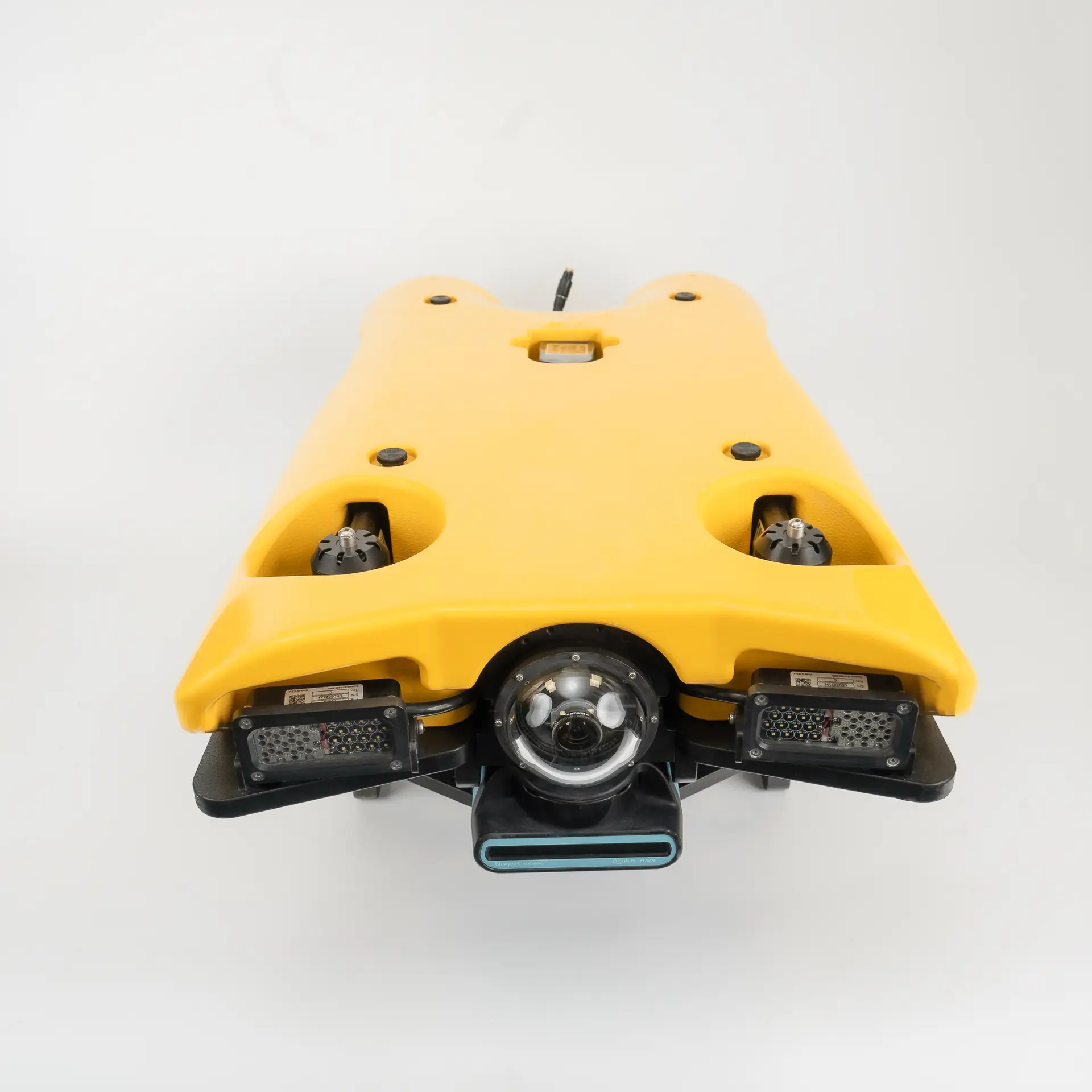

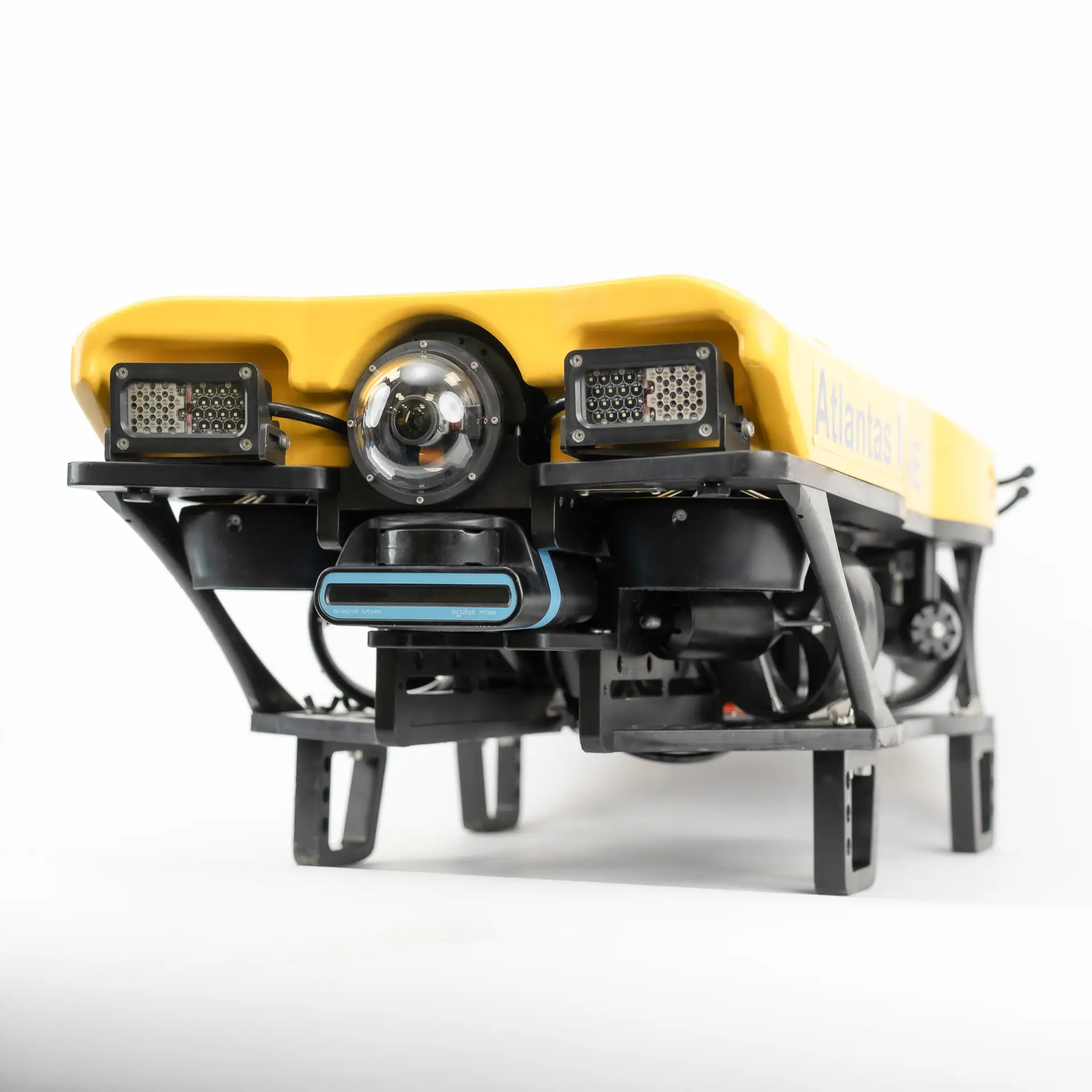

The Defender pairs robust construction with a modular design to deliver high-performance results in demanding underwater environments. Its full HD camera, integrated navigation sensors, and seven thrusters ensure precise control, clear visuals, and reliable data capture across a wide range of subsea tasks.
Easily configurable platform with swappable components for rapid setup and mission flexibility.
Provides full six-axis control for superior manoeuvrability in strong currents and confined spaces.

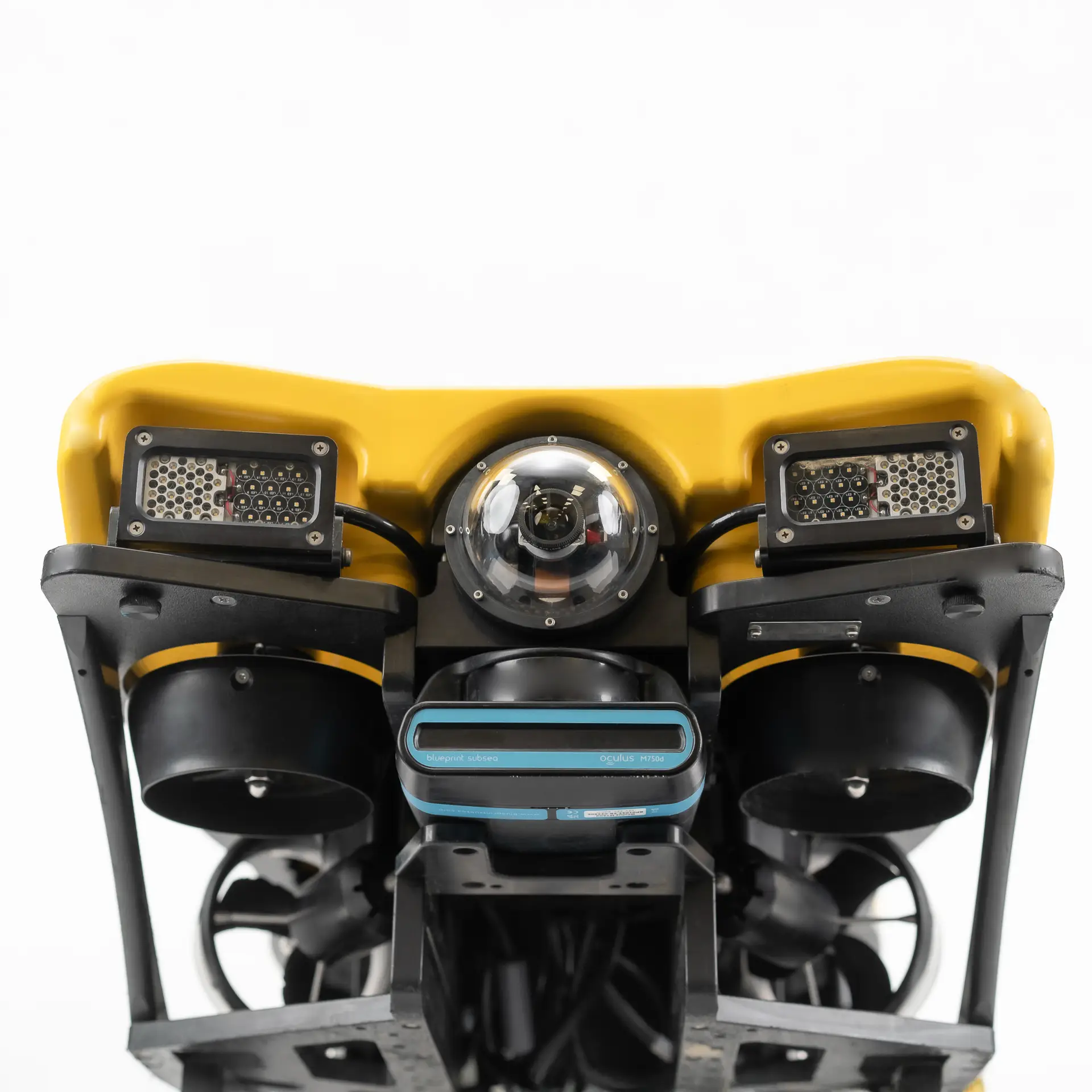

Delivers sharp, low-light imagery with a wide field of view—ideal for detailed inspections.

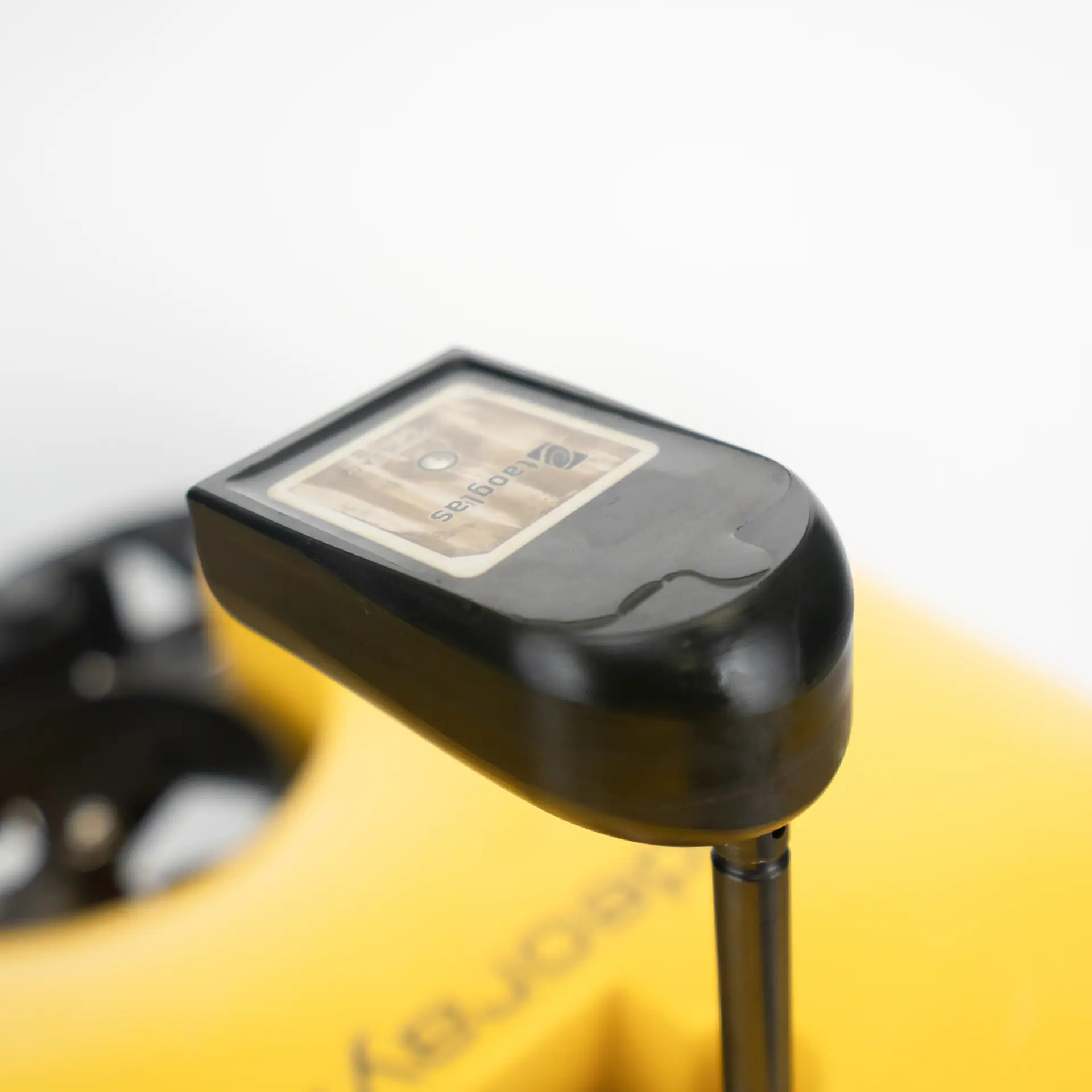

Includes depth, heading, and optional DVL sensors for precise positioning and control.
Operates up to 1,500 metres with fibre optic tether for long-range missions.

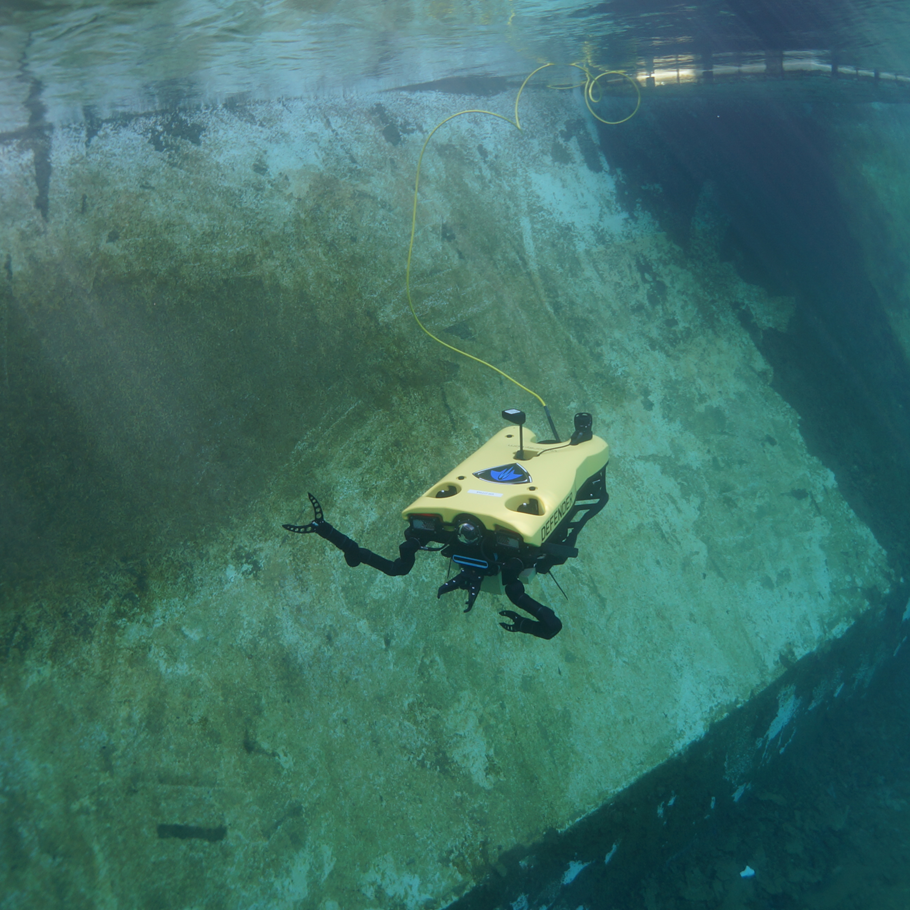

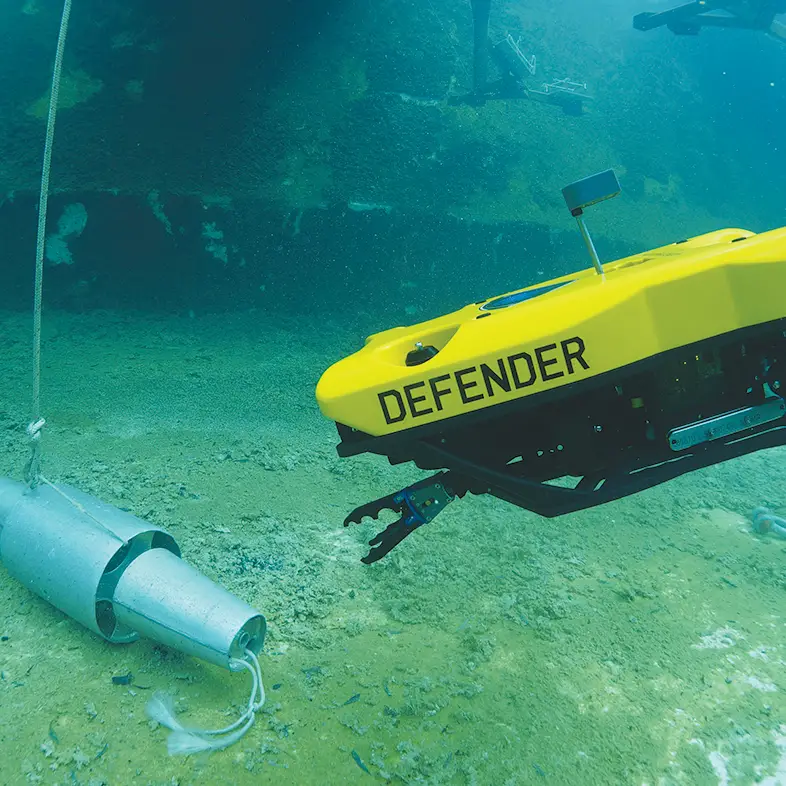

Supports a wide range of tools and sensors, including sonar, manipulators, and Atlantas Marine’s Storm camera.
VideoRay Mission Specialist Series vehicles are designed and built with flexibility in mind. The modular design enables easy maintenance and seamless integration with a variety of tools for a custom solution to your underwater challenges.

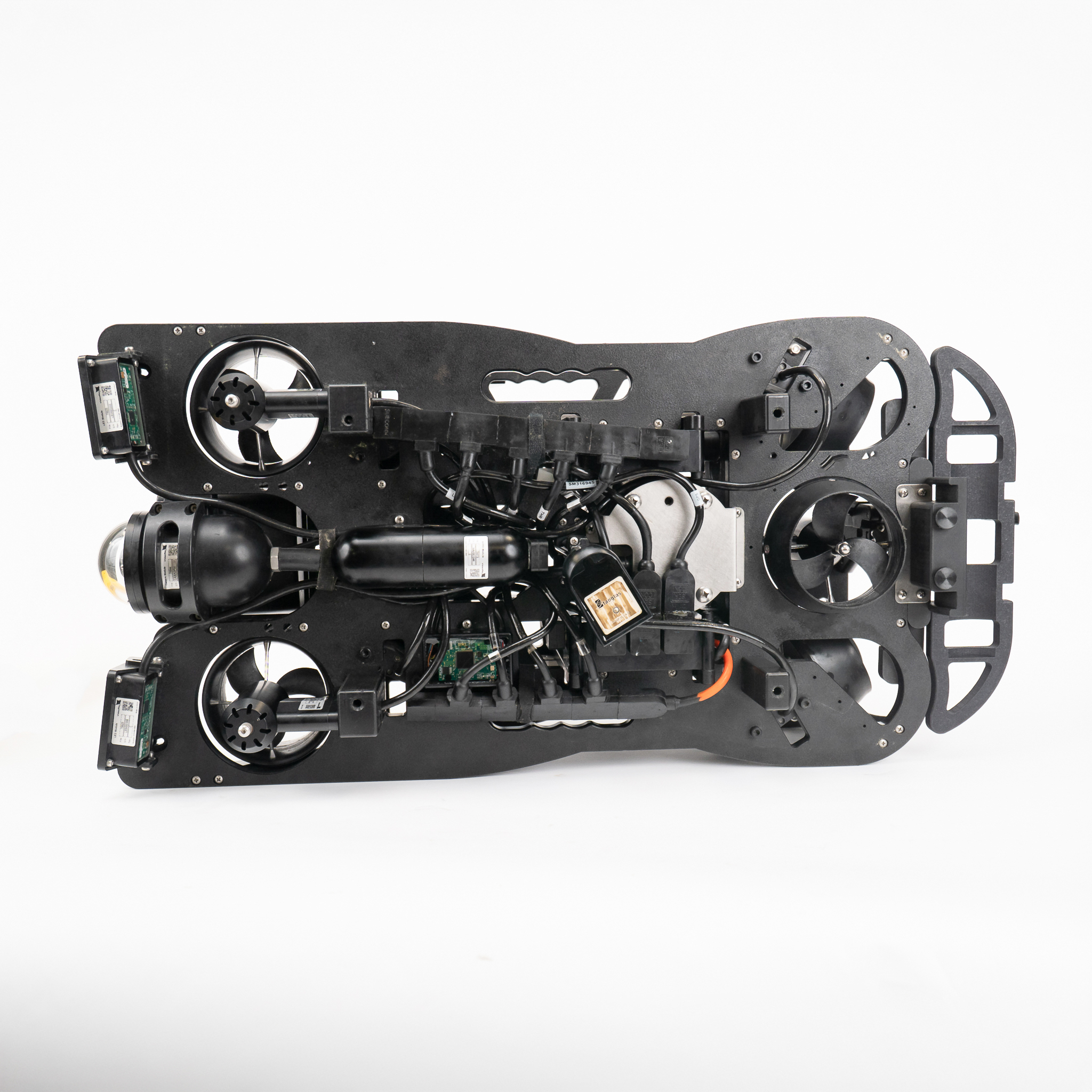

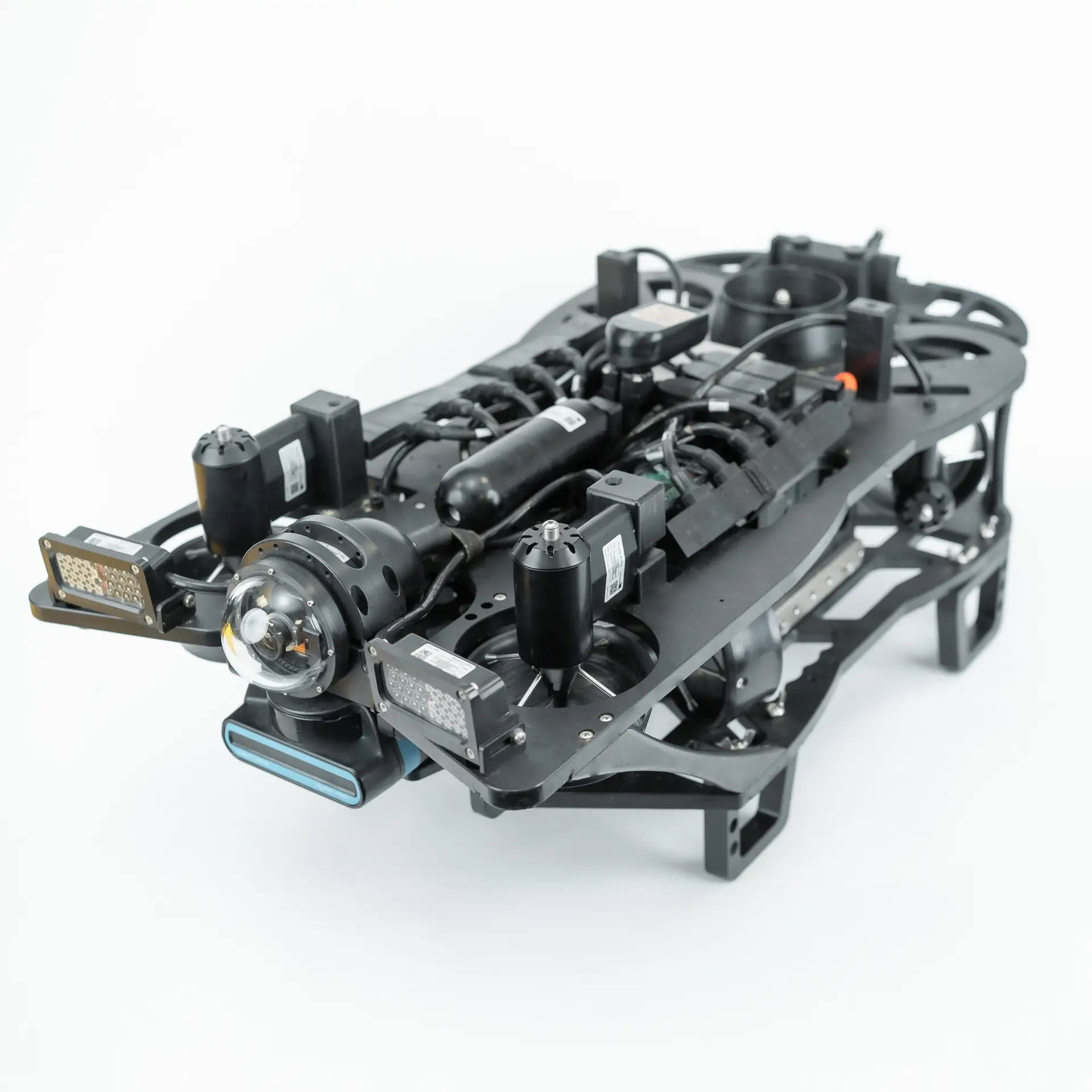

Modular Design - Easy to Maintain

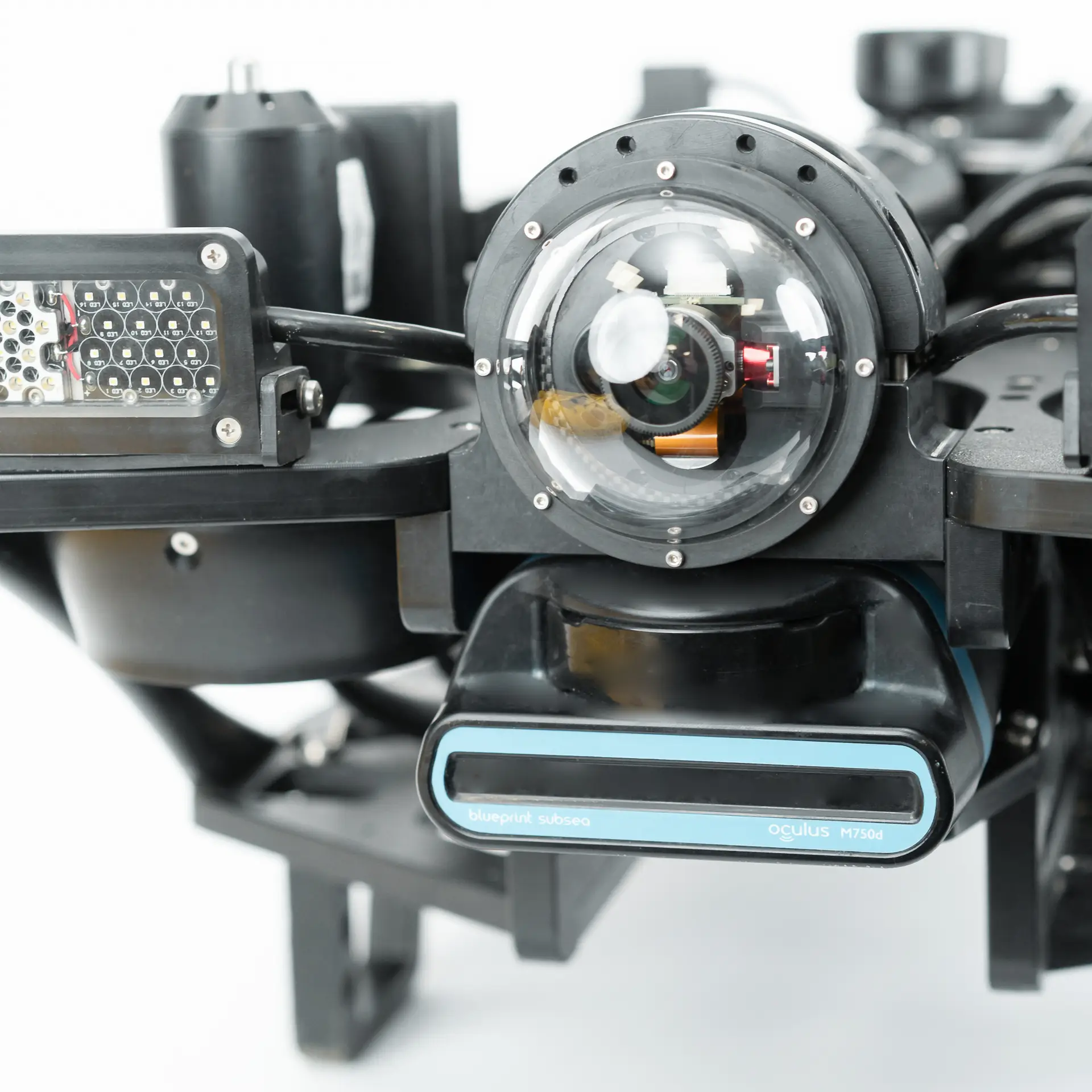

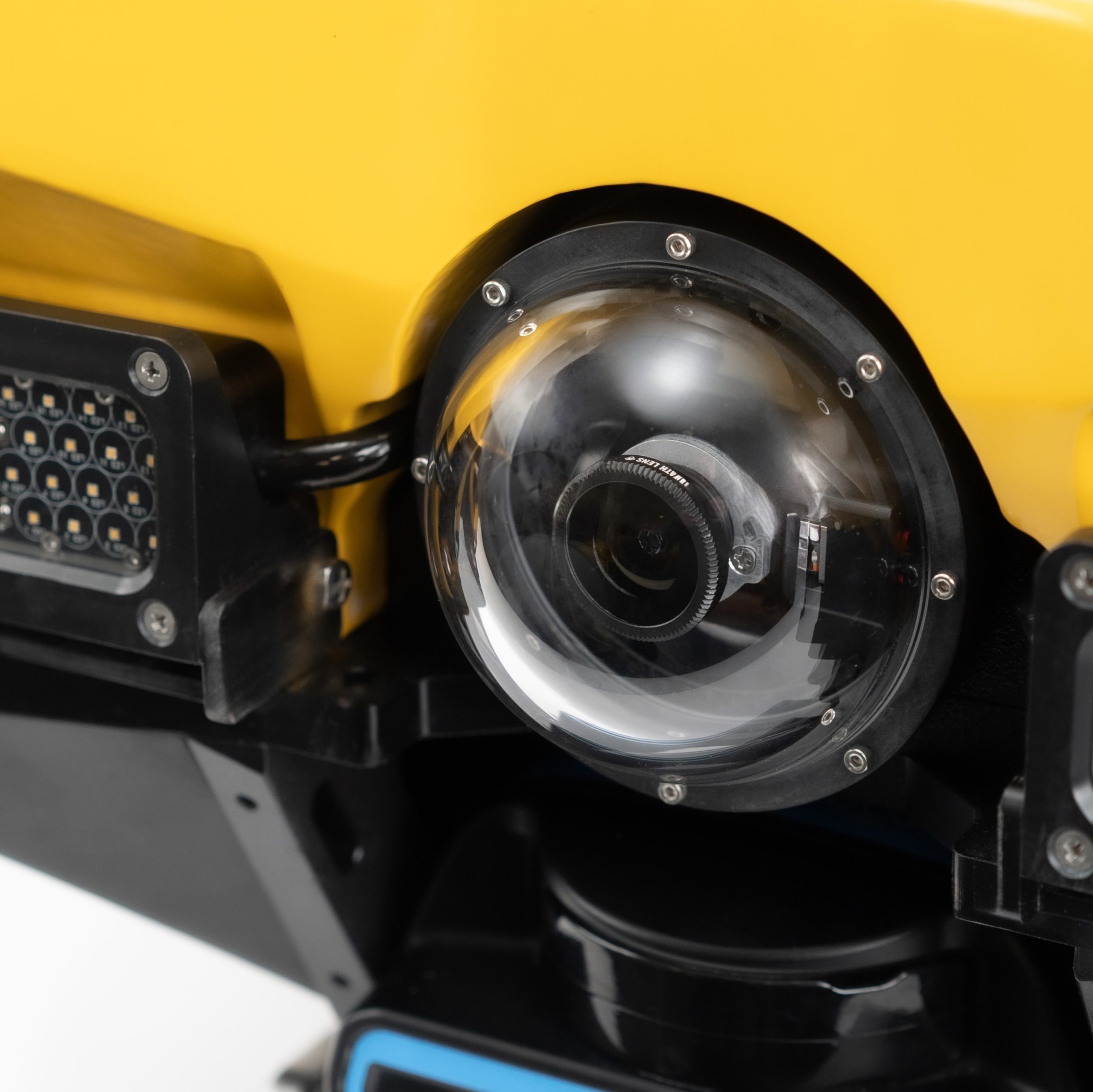

High-Definition Camera

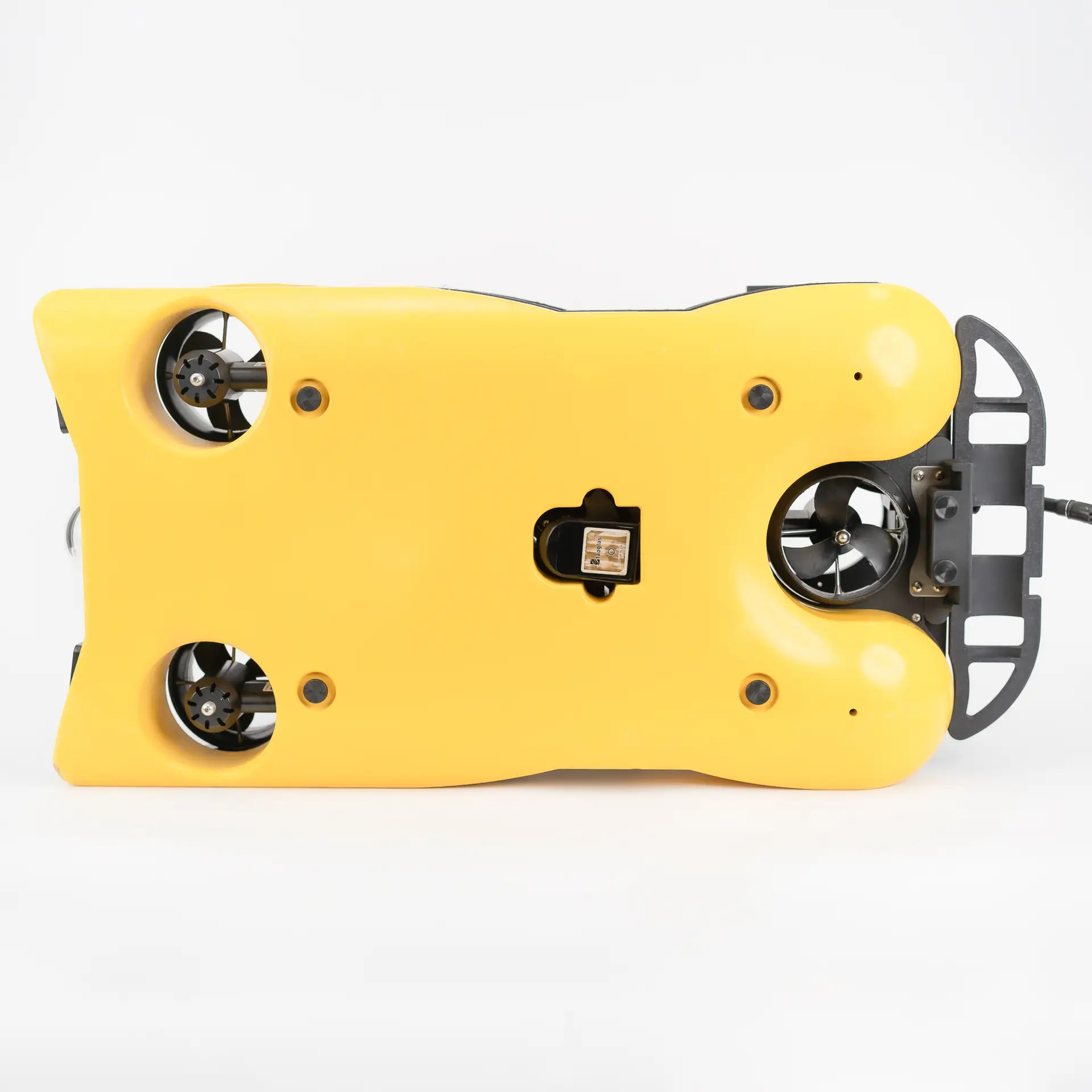

Seven Powerful Thrusters
Multiple Add-on's for Specific Mission Requirements
15,2000 Lumen Brightness Lights
Easily configurable platform with swappable components for rapid setup and mission flexibility.
Provides full six-axis control for superior manoeuvrability in strong currents and confined spaces.
Delivers sharp, low-light imagery with a wide field of view—ideal for detailed inspections.
Includes depth, heading, and optional DVL sensors for precise positioning and control.
Operates down to 1,500 metres with fibre optic tether for long-range missions.
Supports a wide range of tools and sensors, including sonar, manipulators, and Atlantas Marine’s Storm camera.
Thanks to its six-axis control and powerful thruster configuration, the Defender allows users to maintain accurate positioning in difficult environments—reducing operator fatigue and improving mission success rates.
Its modular, plug-and-play design enables fast configuration changes, meaning less time in the workshop and more time in the field—maximising productivity across multiple projects with a single system.
With the option for long-range fibre optic tethers and on-board battery power, the Defender can access hard-to-reach sites without relying on complex surface power setups—unlocking operational flexibility wherever the work takes you.
Power Requirements: 110/220 VAC (1 to 2.6 kW)
Total System Weight (Sub & OCC):32.5 kg (71.6 lb)
Cases:2 Watertight Rugged Hard Cases
Owner’s Manual: Online Digital
System Tool Kit: Basic Tool Kit
Communications Protocol: RS-485 and Ethernet
Warranty: 2 Year Limited
Depth Rating: Up to 1000m with deep config, 305m standard config

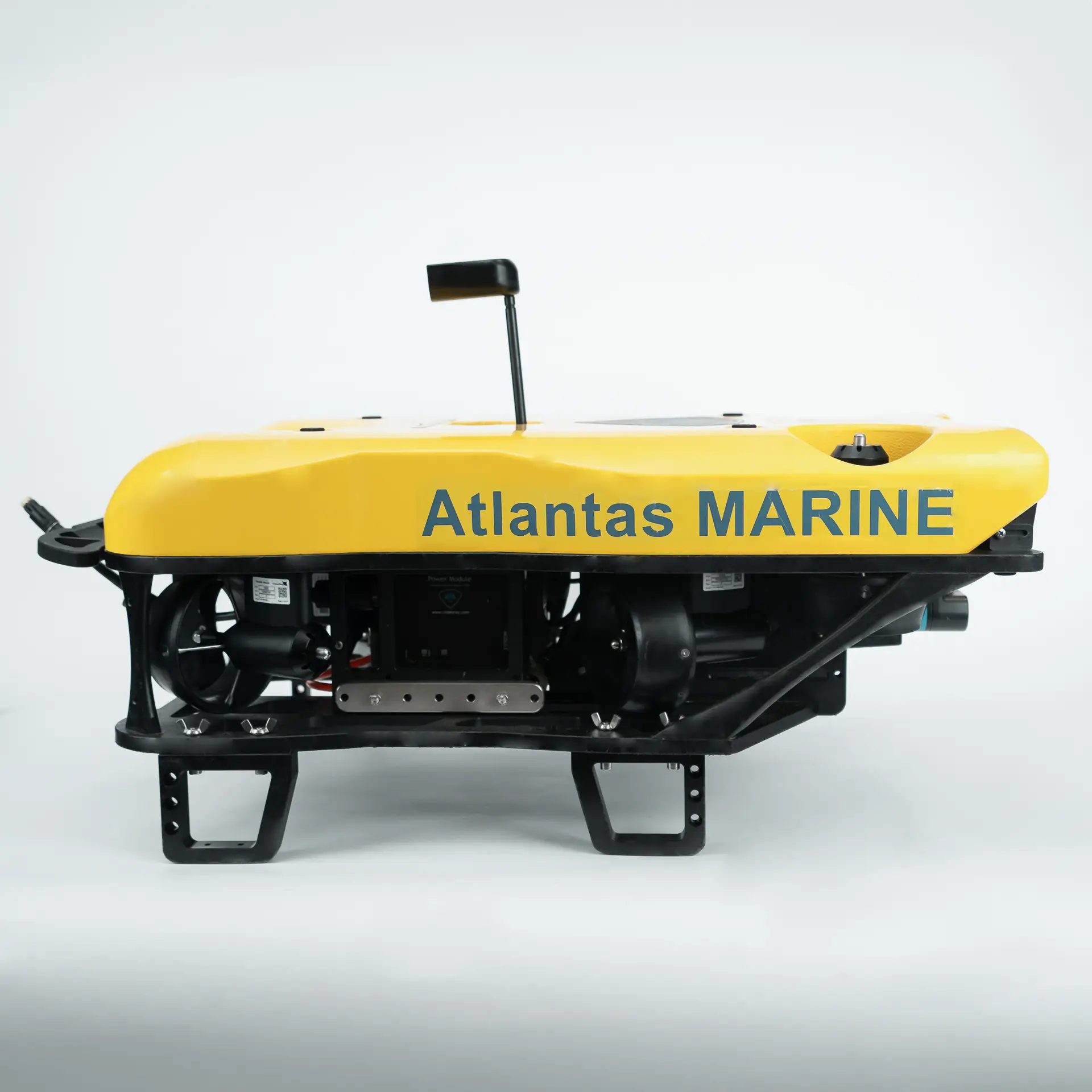

Size (l x w x h): 71cm x 40cm x 24cm
Weight: 17.2kg (38lbs)
Ballast:Â Modular
Case: 79.5 x 51.8 x 31 cm, 9.4kg

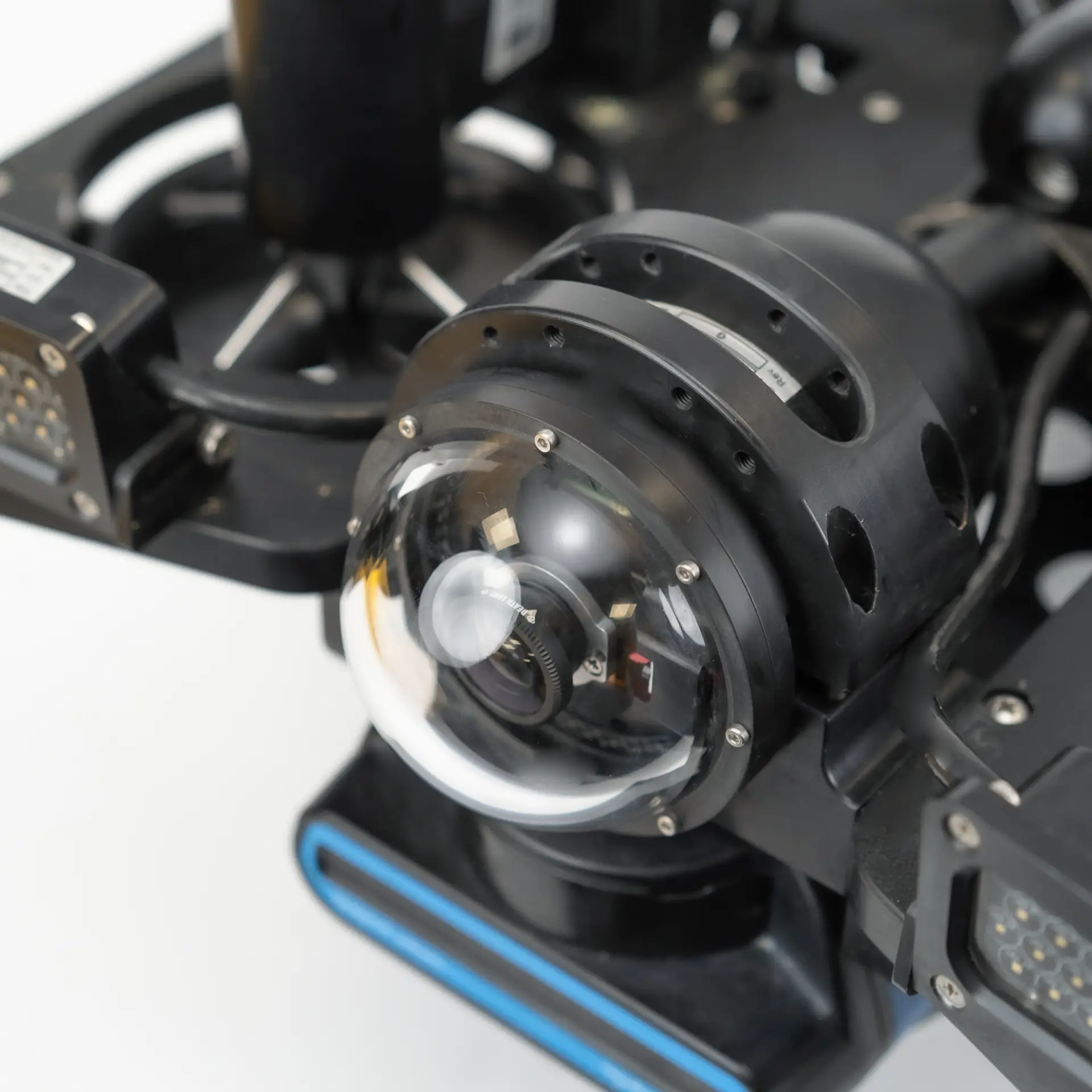

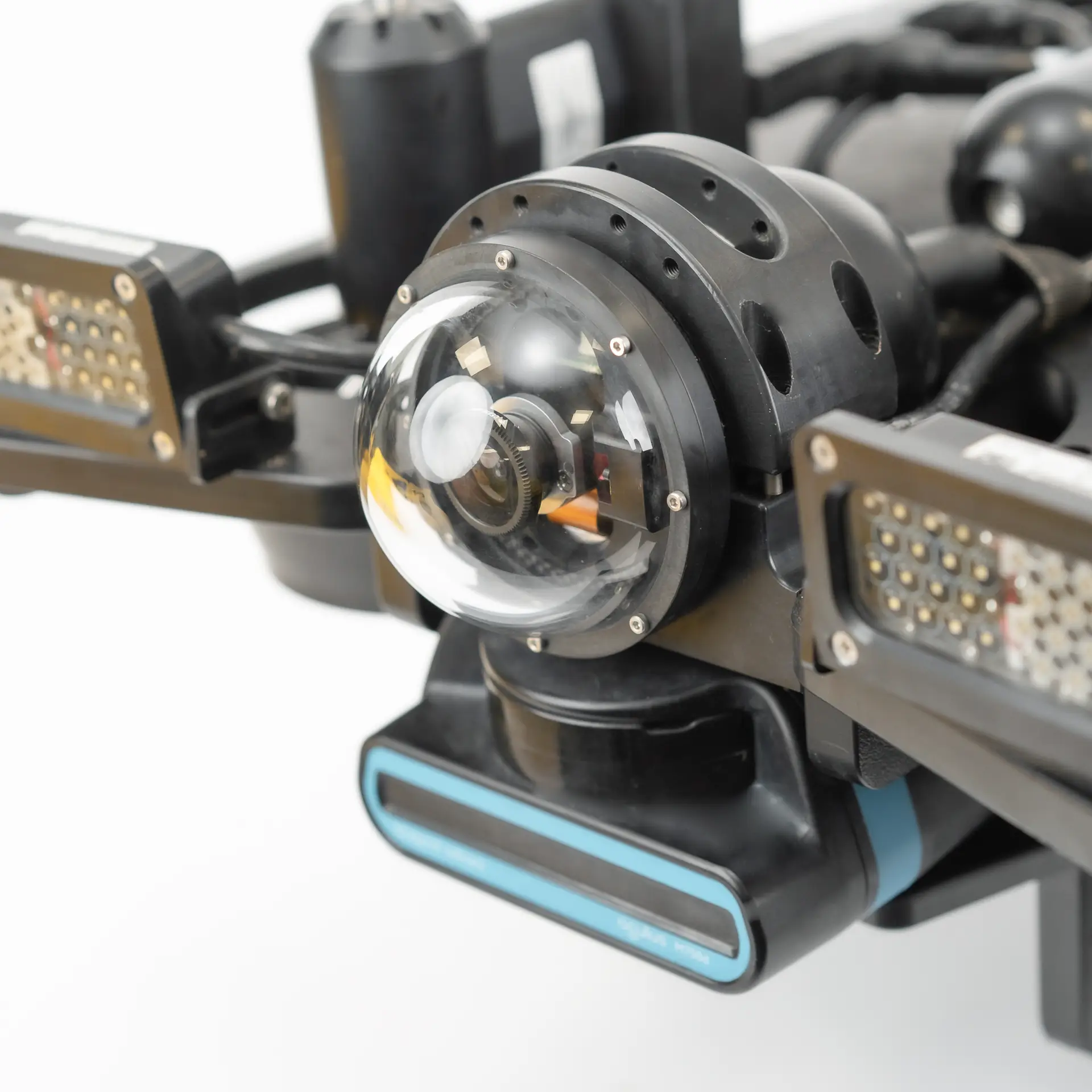

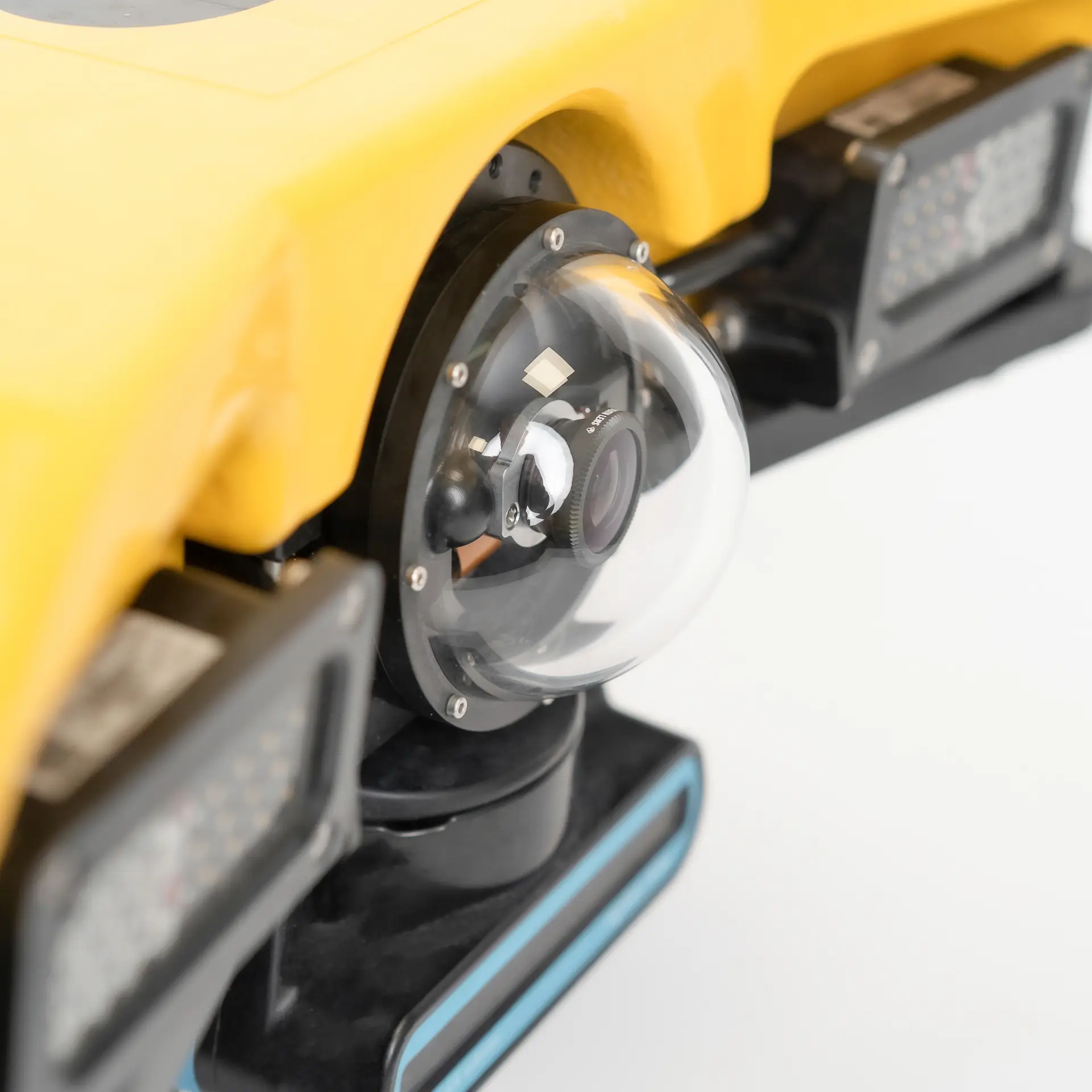

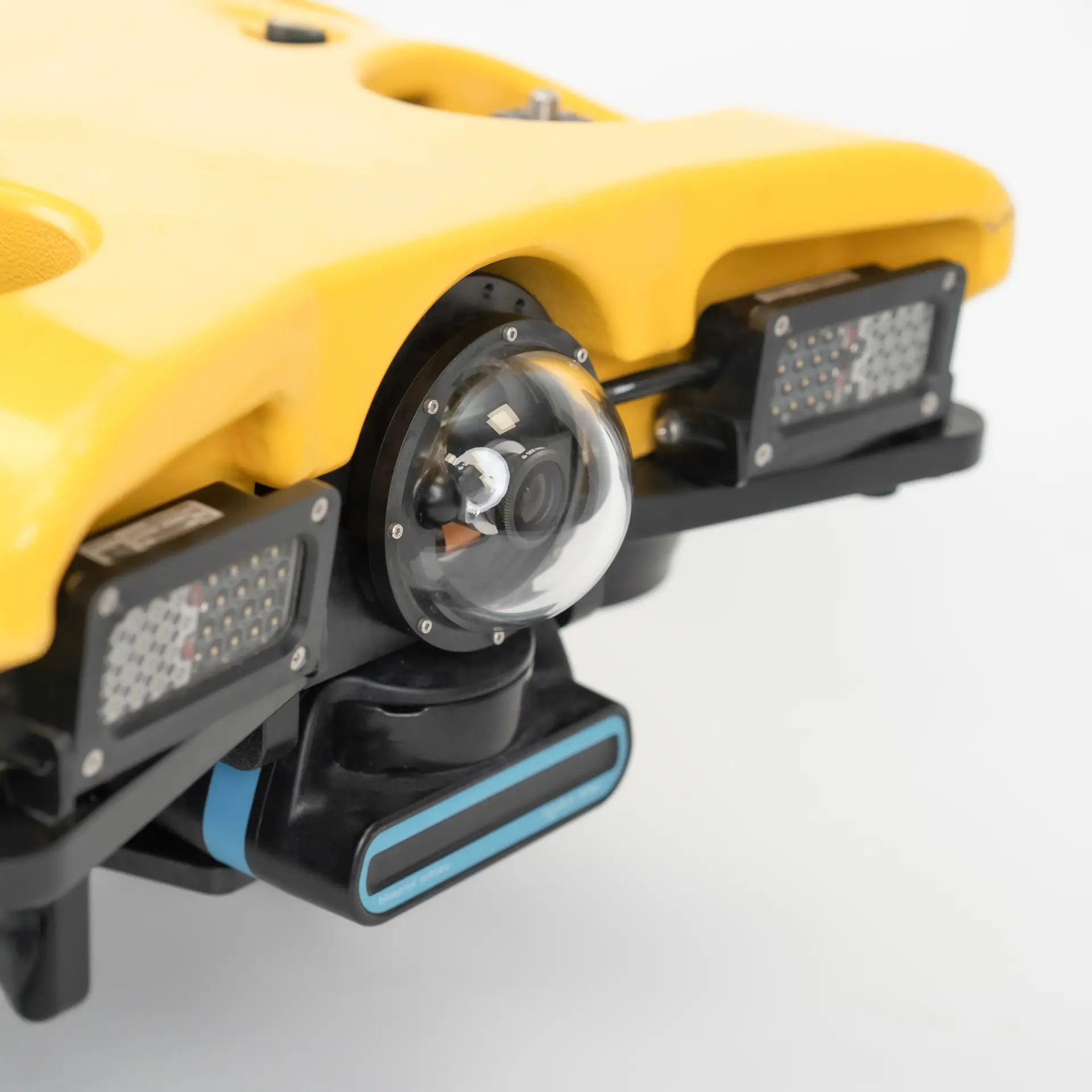

High Definition: With Ethernet interface (IP)
Video: up to 1920 x 1080, 25 fps
Mechanical: Standard VideoRay 9 pin connection Ethernet, 12 VDC, RS-485 Auto or Manual Focus Optical Glass Dome
Features: White Balance Control up to 16x Digital Zoom (64 steps) 13 Megapixel Still Image Capture
Sensitivity: Less than 1 lux (standard)
View Angle: 160° Tilt (180° FoV) Horizontal: 136° Vertical: 92°
Interface: Ethernet Compression: MJPG
400 VDC power module
1500 W @ 48 VDC
Full monitoring of input voltage, output current, temperature
Float: 400 m standard, 2000m optional
Power Input: 90-260 VAC (47-440 Hz)
Power Output: 400 VDC, 2400 W
Display: HD Daylight Viewable Monitor
Weight: 15.2 kg (33.6 lbs)
Case: Water tight 0.62 x 16.87 x 8.12 in (52.37 x 42.85 x 20.62 cm)
Processing: Integrated i7 system processor
Controller: Industrial Programmable Hand Controller
Safety: Integral Line Isolation Monitor Emergency Kill Switch
Ports:
7 external USB ports
1 external Ethernet port
5 x 100 Mbps Ethernet ports
5 x RS-485 ports
Power Available:
12V, 120W
24V, 300W
48V, 1500W
Power control and monitoring

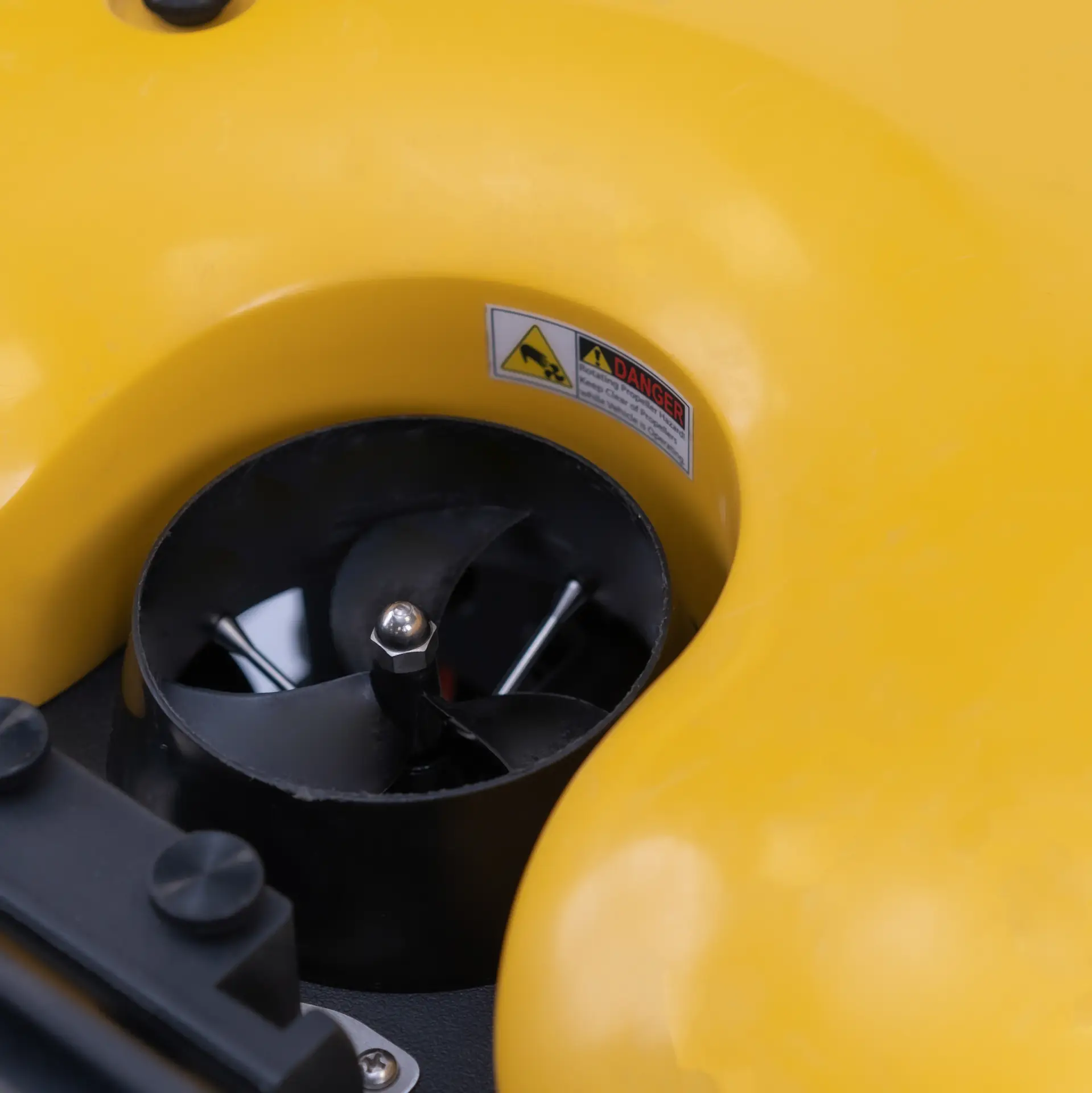

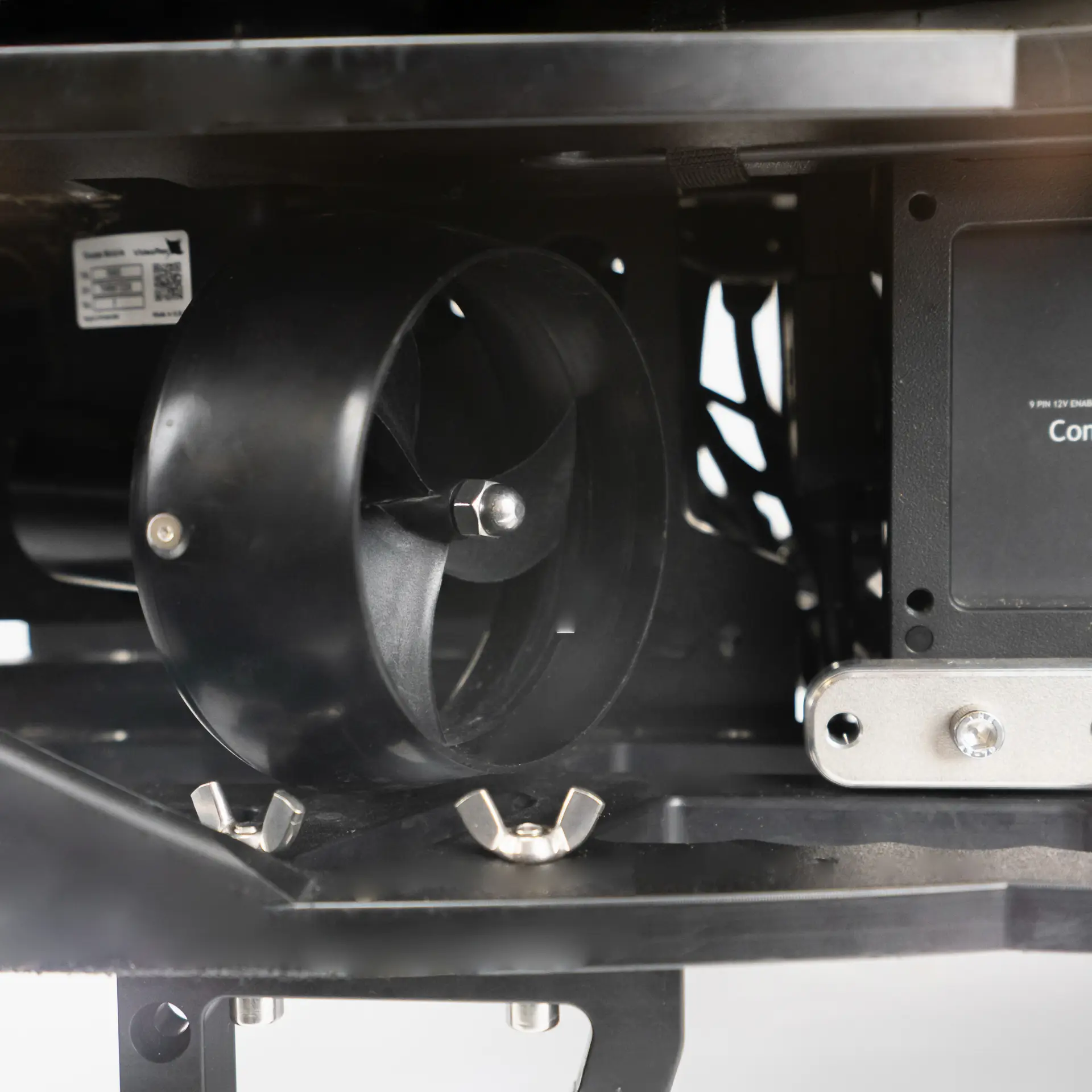

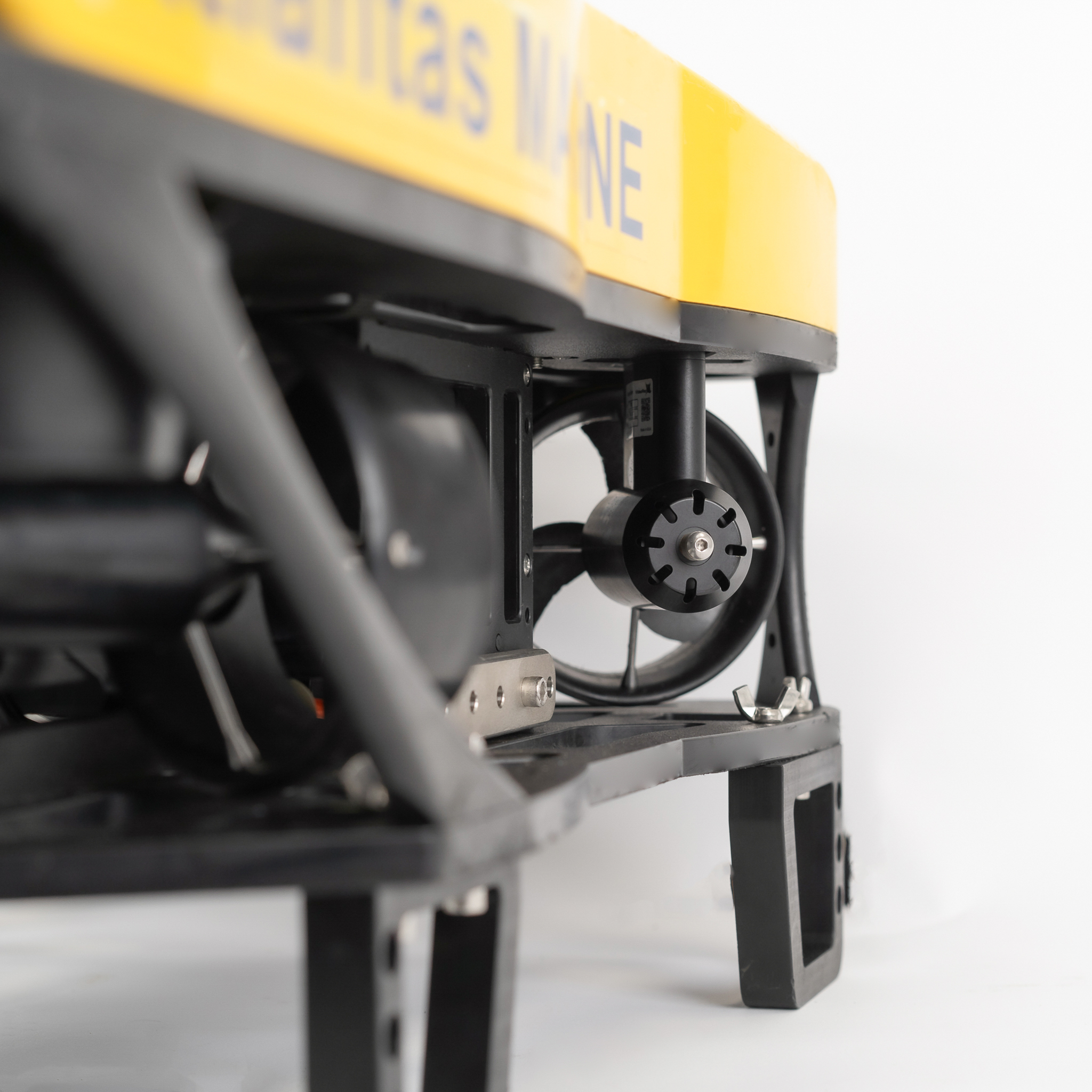

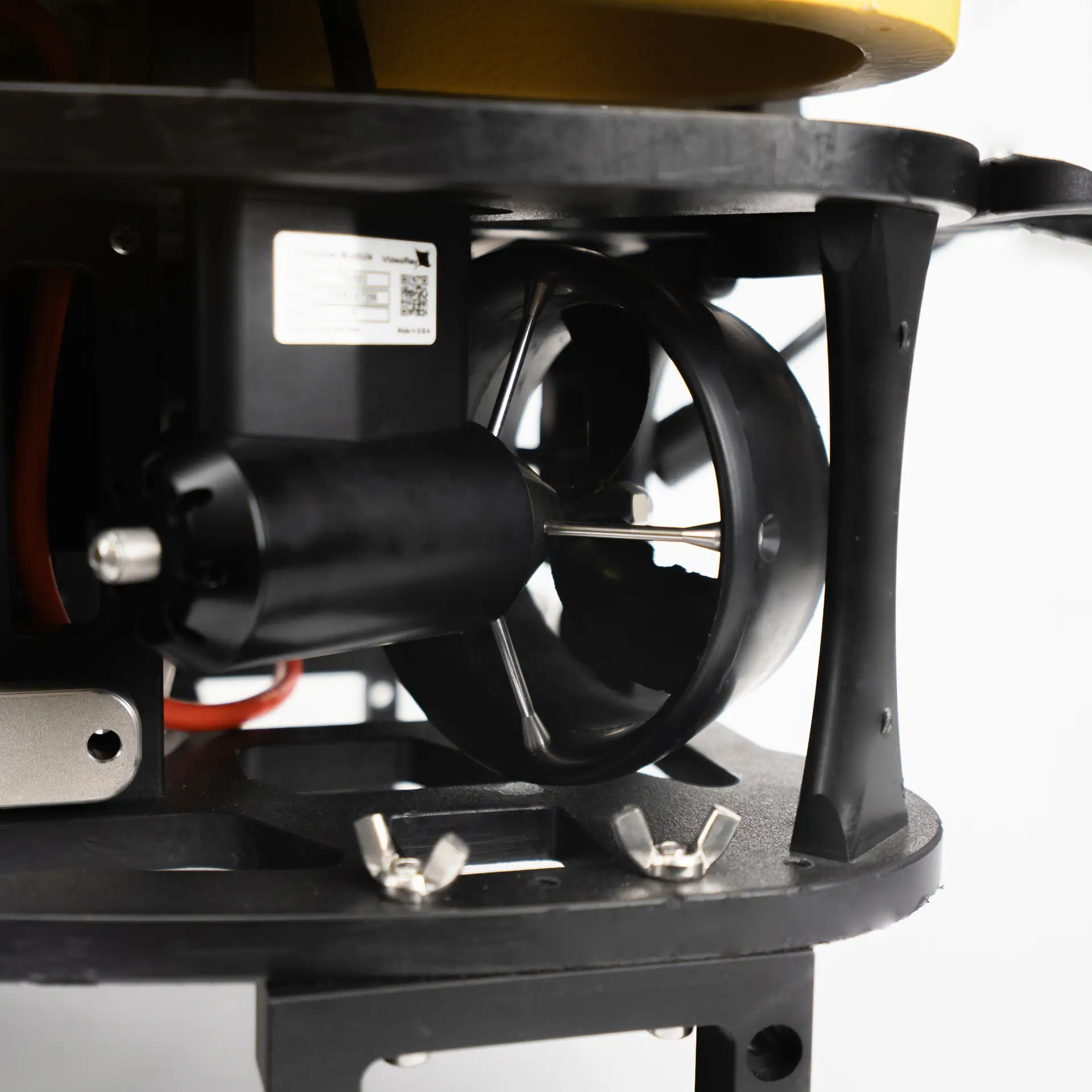

Brushless thruster with integrated controller
4 Vectored Horizontal Thrusters
Forward: 26.7 kg (59lbs)
Reverse: 15 kg (33lbs)
Lateral: 8.6 kg (19lbs)
3 Vertical Thrusters
Up 23.1 kg (50.9lbs)
Down 12.9 kg (28.4lbs)

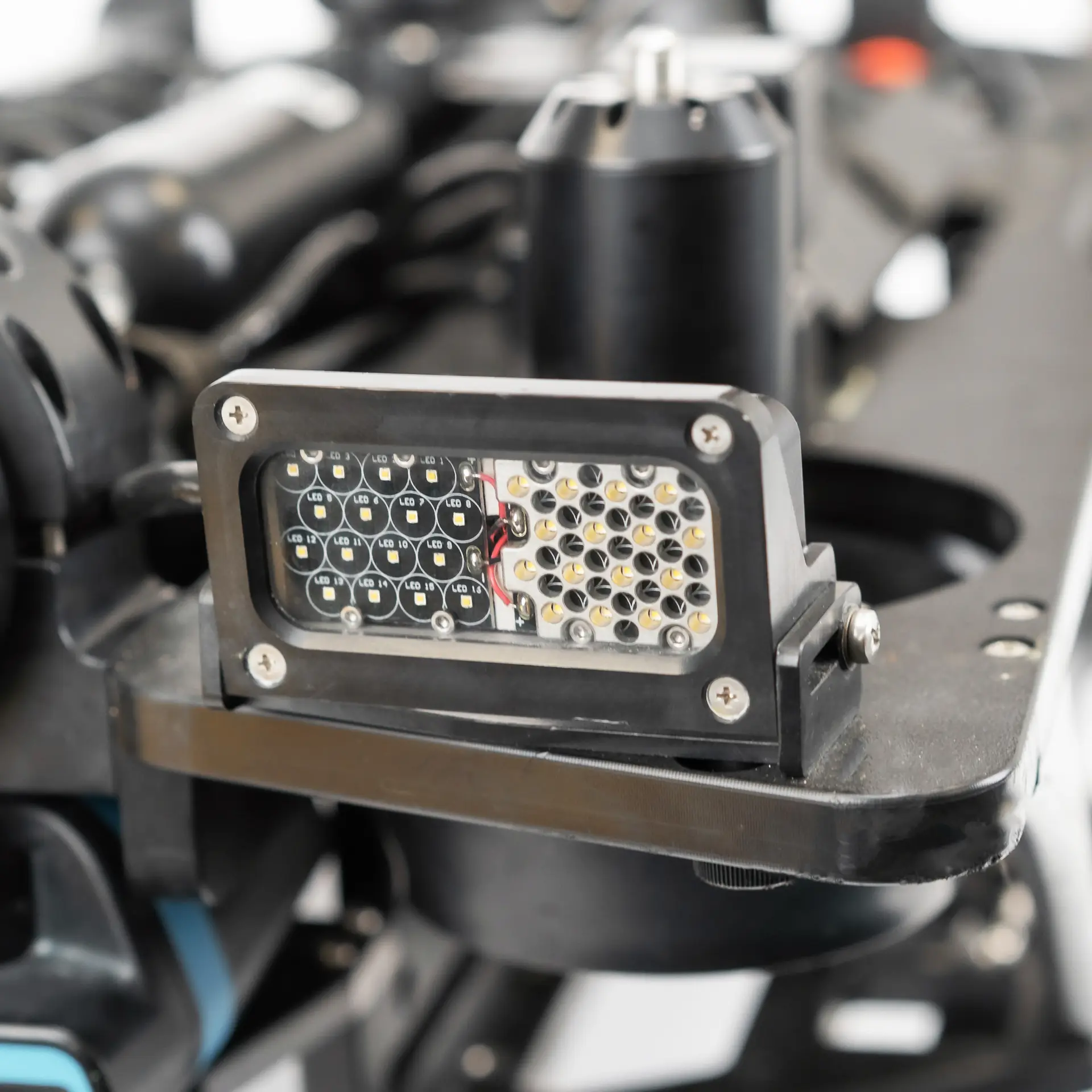

LED
2 independent light arrays (38 Watts max ea.)
60° spot beam 110° flood beam
Each array can be individually controlled
3,000 K CCT, 80 CRI White
7,600 total lumens per LED light module; 15,200 lm total light
9 DOF IMU and magnetic compass
Pressure based depth sensor:
100 Bar, with 400 Bar optional
0.2° Static Roll/Pitch
0.5°Dynamic Roll/Pitch
1.0° Yaw
18°/h/ Gyro Bias stability
Neutral Performance: Neutral buoyancy, smaller diameter
Standard Neutral: Neutral buoyancy
Negative Extension: Negative buoyancy
Breaking Strength: 680 kg (1,500lbs)
Management: Tether Deployment and Storage Reel
