Mission Specialist
Pro 5
Underwater robot designed for optimal performance, where size, speed and efficiency matter most
3
Thrusters
305m
Depth Rating
125
Different Mission
Capabilities
Mission Specialist
Pro 5
Underwater robot designed for optimal performance, where size, speed and efficiency matter most
3
Thrusters
305m
Depth Rating
125
Different Mission
Capabilities
Depth Rating
305 metres
Max Speed
4.4 kts
Video Resolution
1920 x 1080, 25fps
Lighting Brightness
15,200 lm total light
Weight
11.8kg (26lbs)
Size (L x W x H)
51 x 33 x 26cm
Pro 5 Benefits
Why choose the Pro 5
The Pro 5’s modular build and shared software architecture enable fast reconfiguration, allowing operators to tailor the system for a wide range of missions without the need for complex retraining or additional equipment.
With its modular design and compatibility with various accessories, the Pro 5 can adapt to a wide range of underwater missions, making it a cost-effective solution for inspections in confined spaces, dynamic waters, and environments requiring tailored configurations.
The Pro 5 delivers clear high-definition visuals and accurate navigation data, ensuring operators can make informed decisions and complete complex tasks with precision, even in low-visibility or demanding underwater conditions.
Pro 5 Features
What helps set it apart
The Pro 5 combines cutting-edge technology with a modular design to deliver exceptional performance and adaptability in underwater environments. Its advanced features, including high-definition imaging, precise navigation sensors, and powerful thrusters, ensure reliable and efficient operations across a wide range of applications.

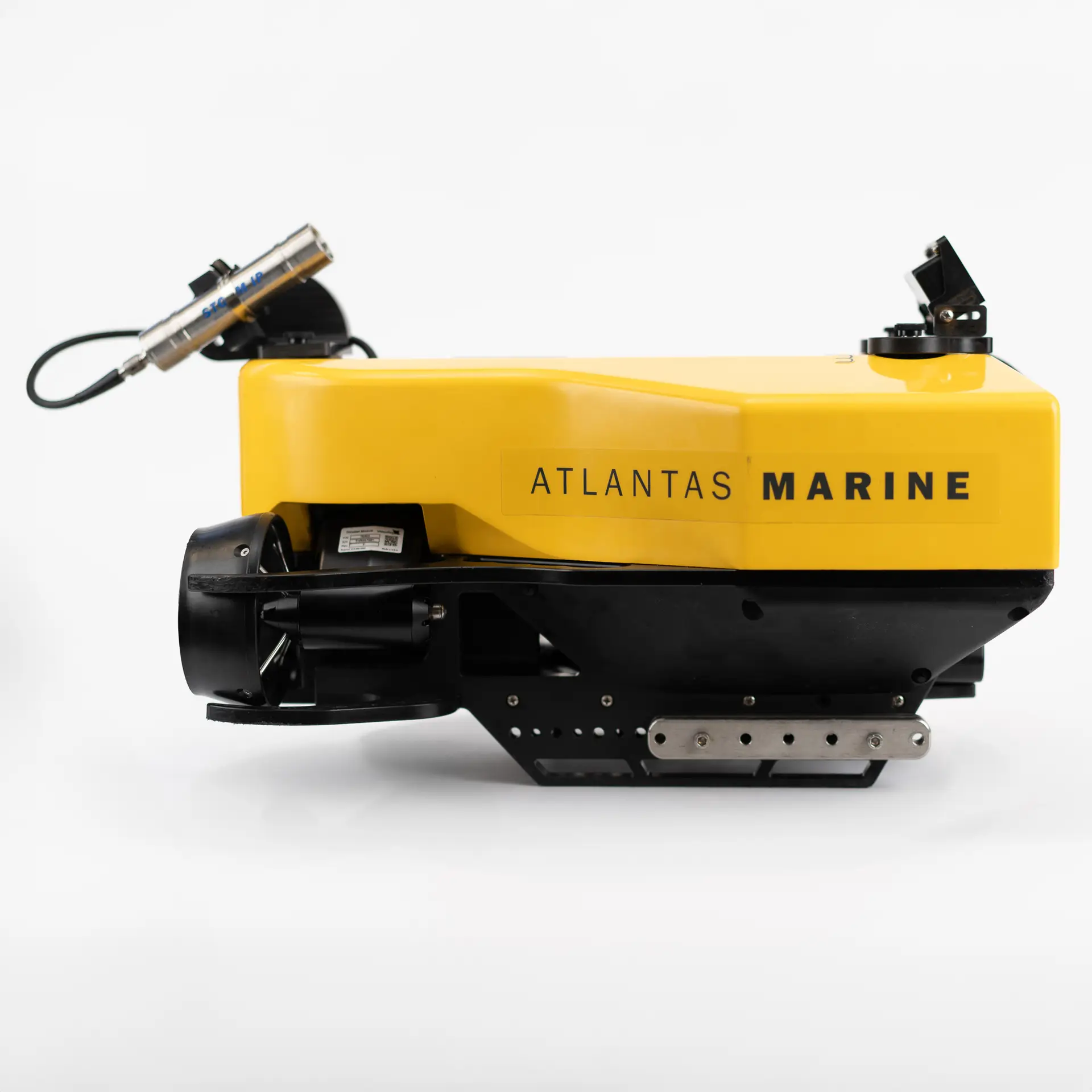

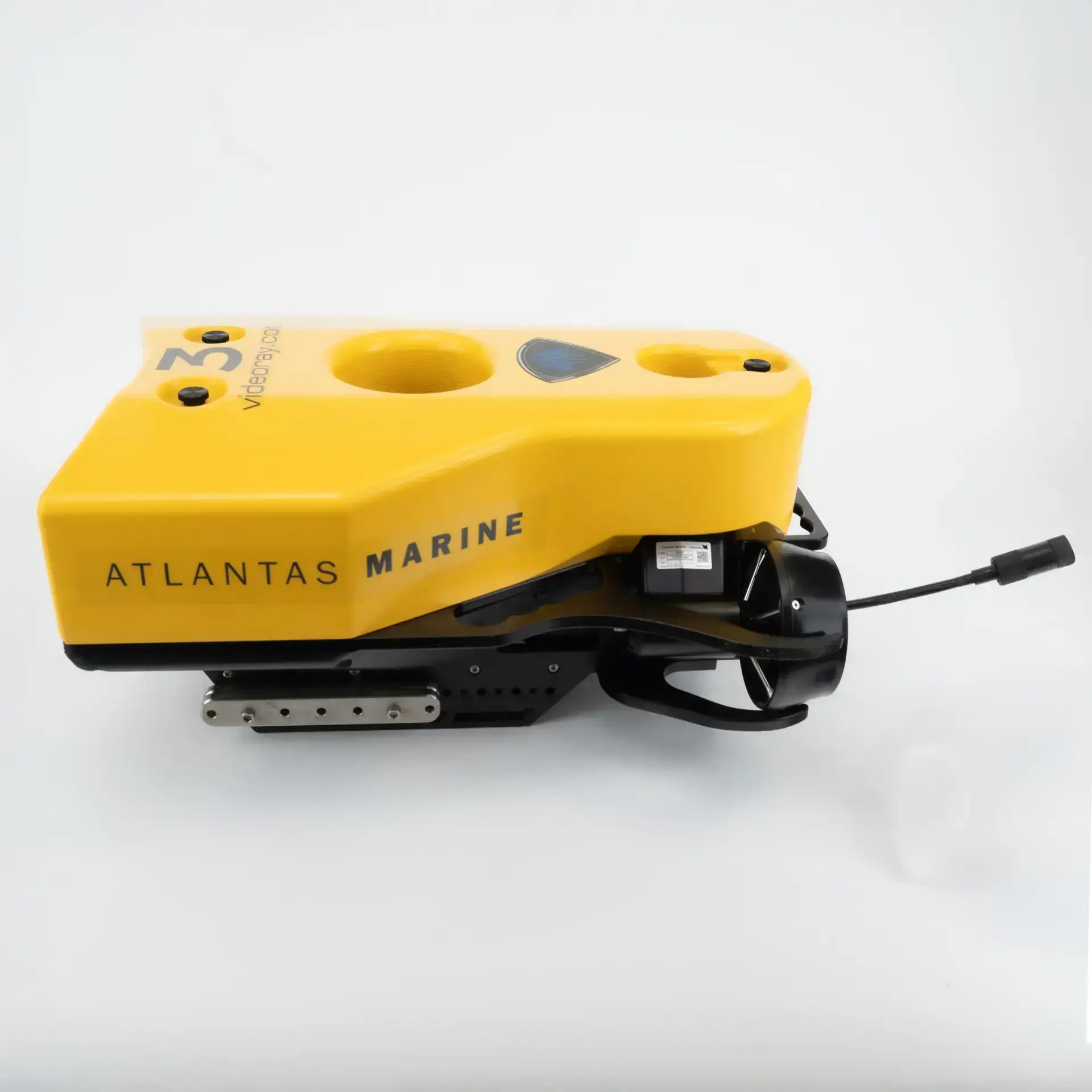

Lightweight and Compact Design
The Pro 5’s lightweight build, weighing only 10 kg, and compact dimensions make it an ideal choice for operations requiring quick setup and mobility.

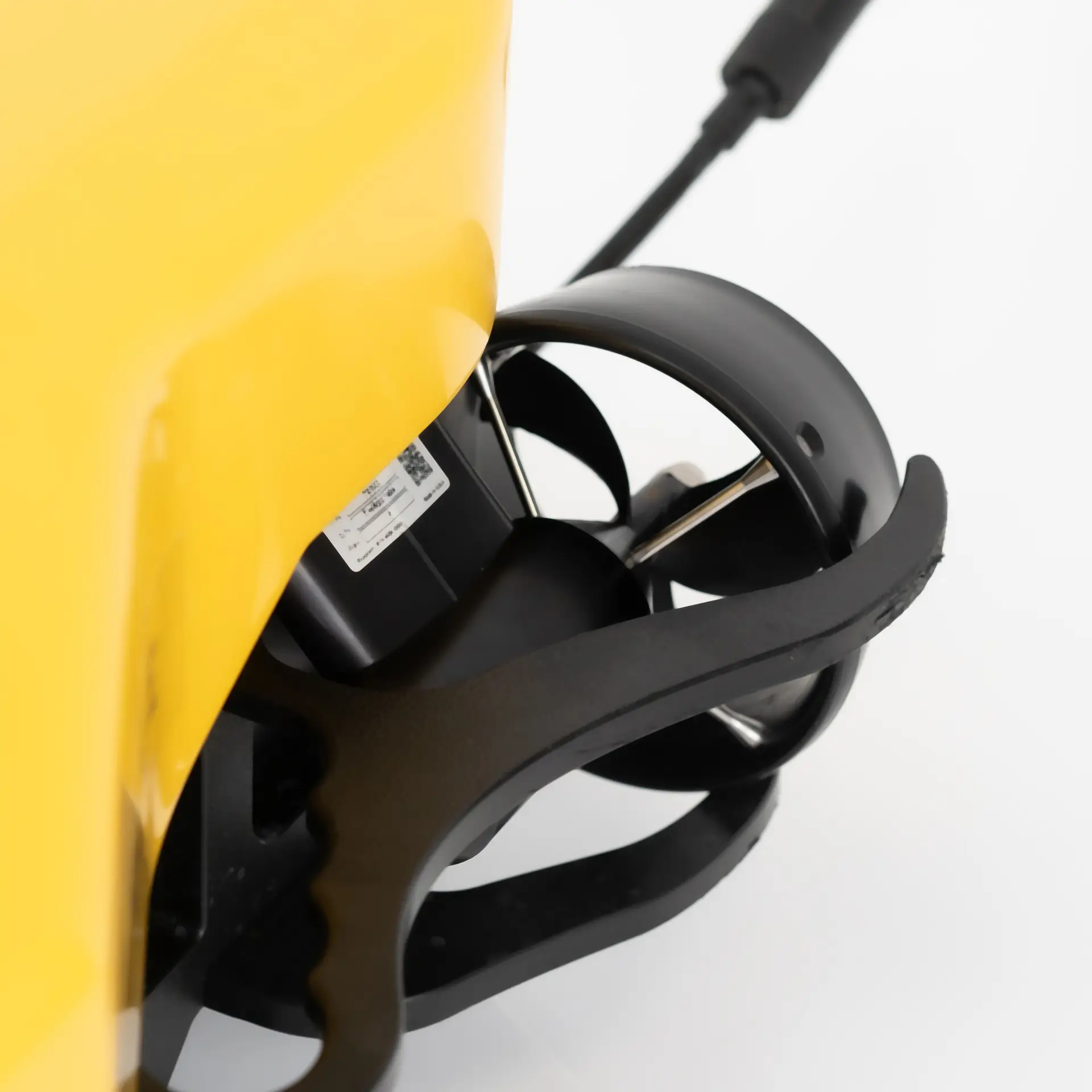

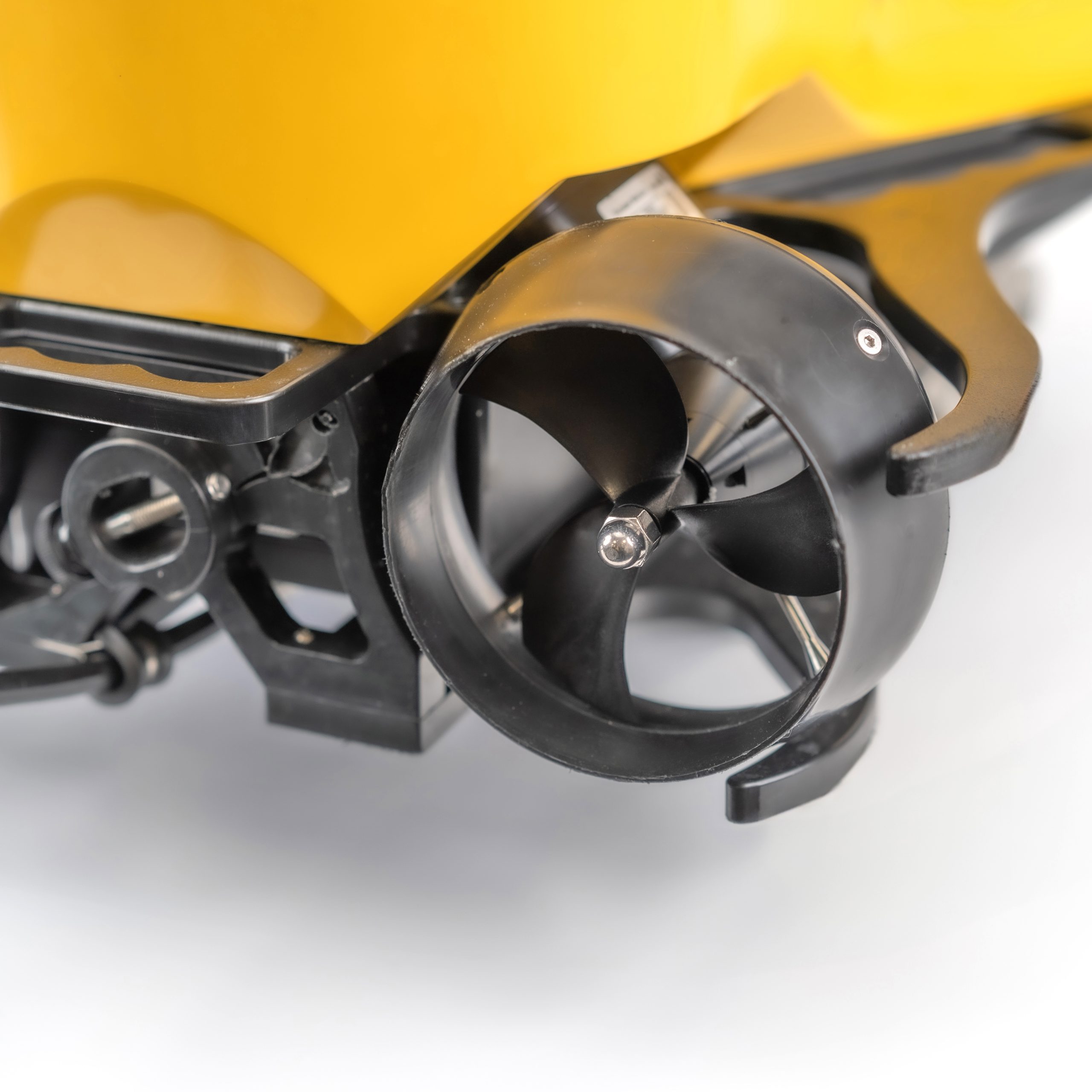

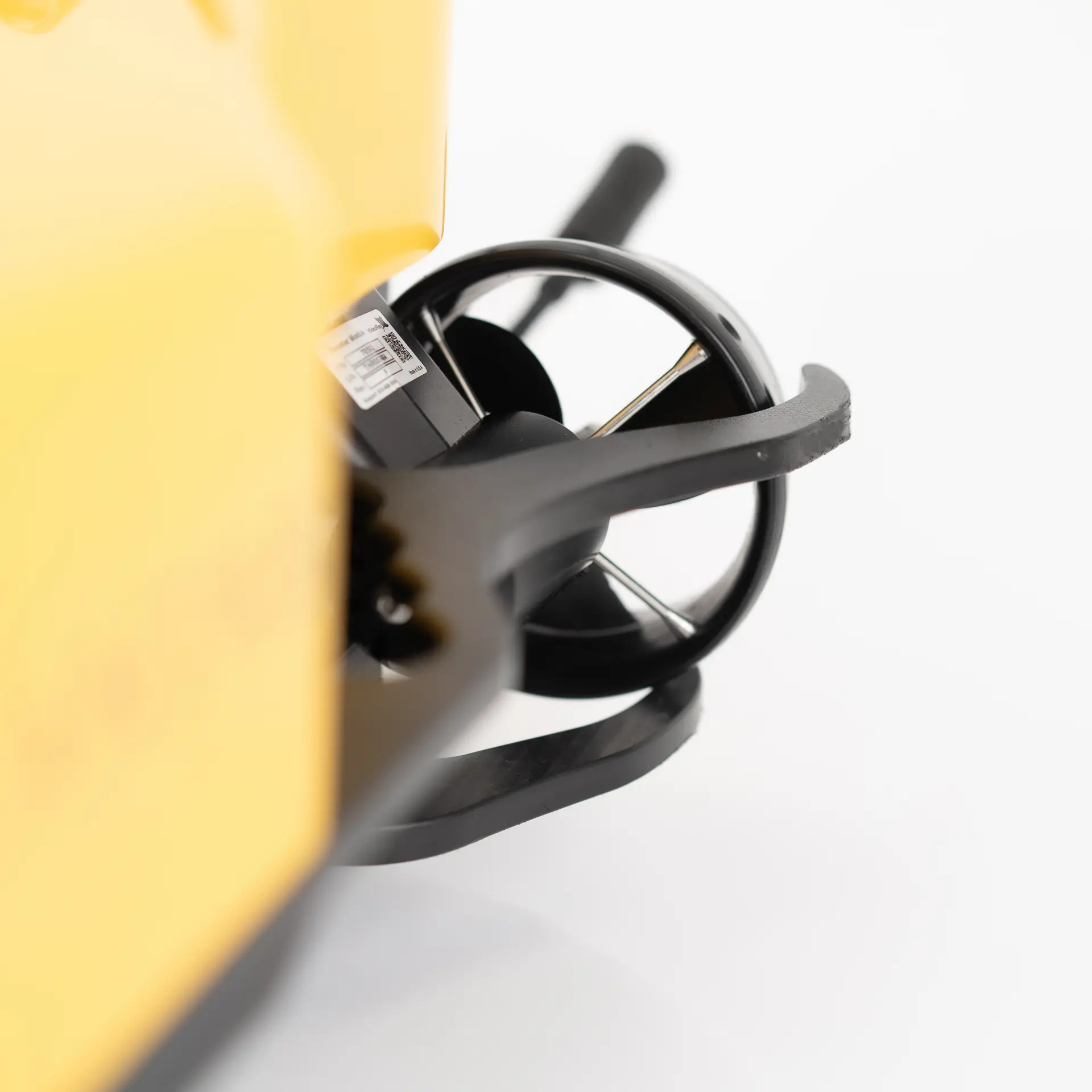

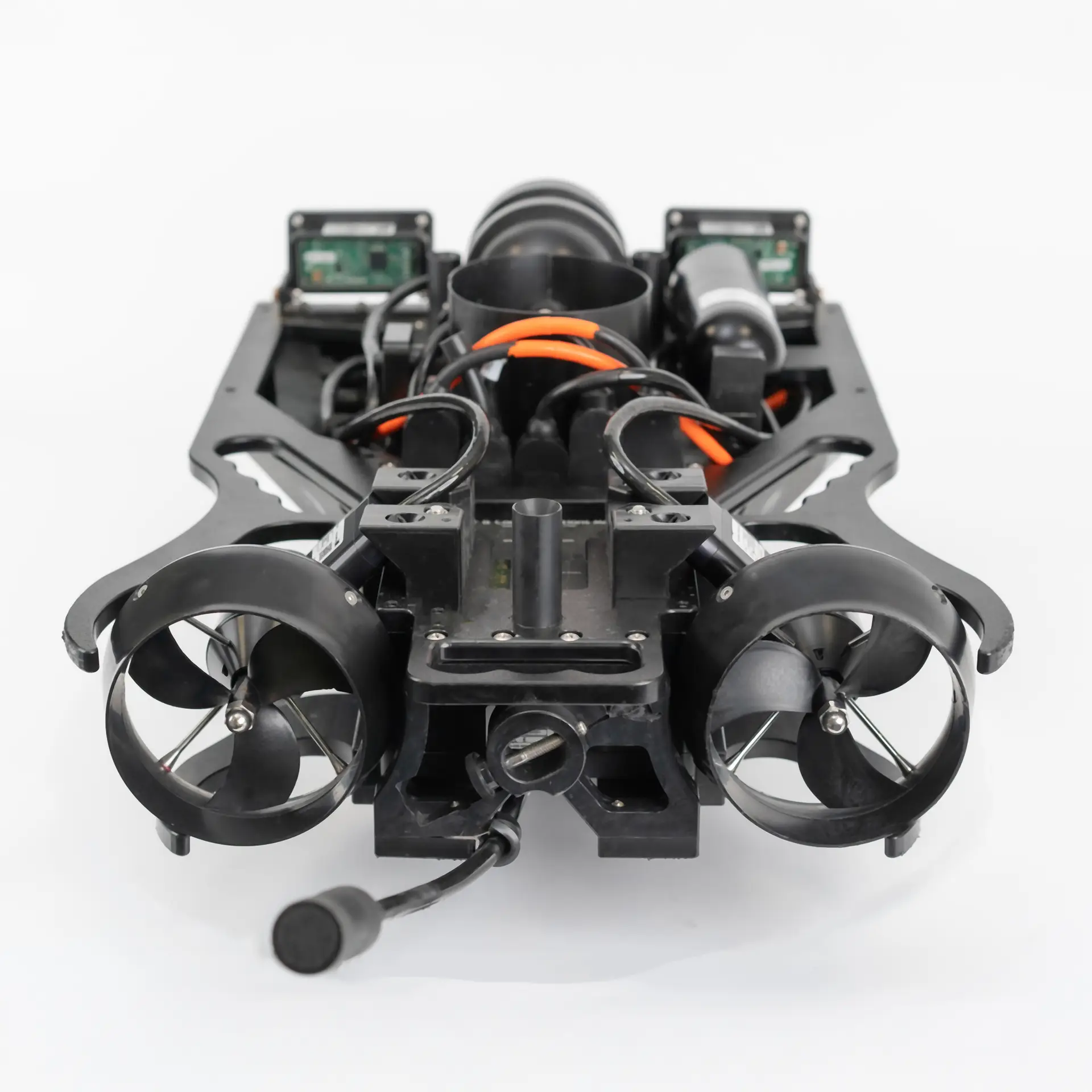

Advanced Thruster System

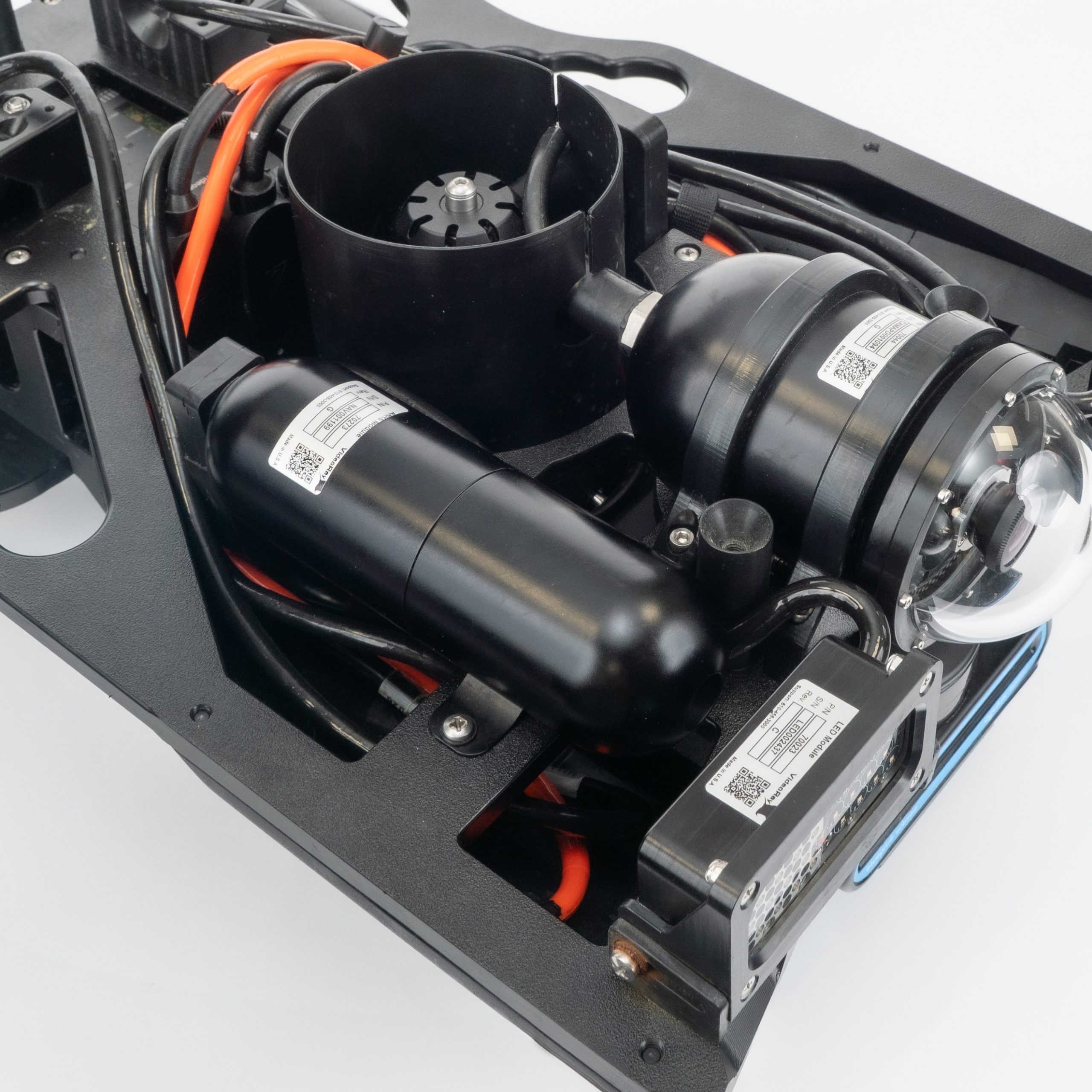

With its two vectored horizontal thrusters and a vertical thruster, the Pro 5 offers exceptional maneuverability, allowing it to operate effectively in dynamic tidal waters and confined spaces, while achieving speeds exceeding 4.4 knots.

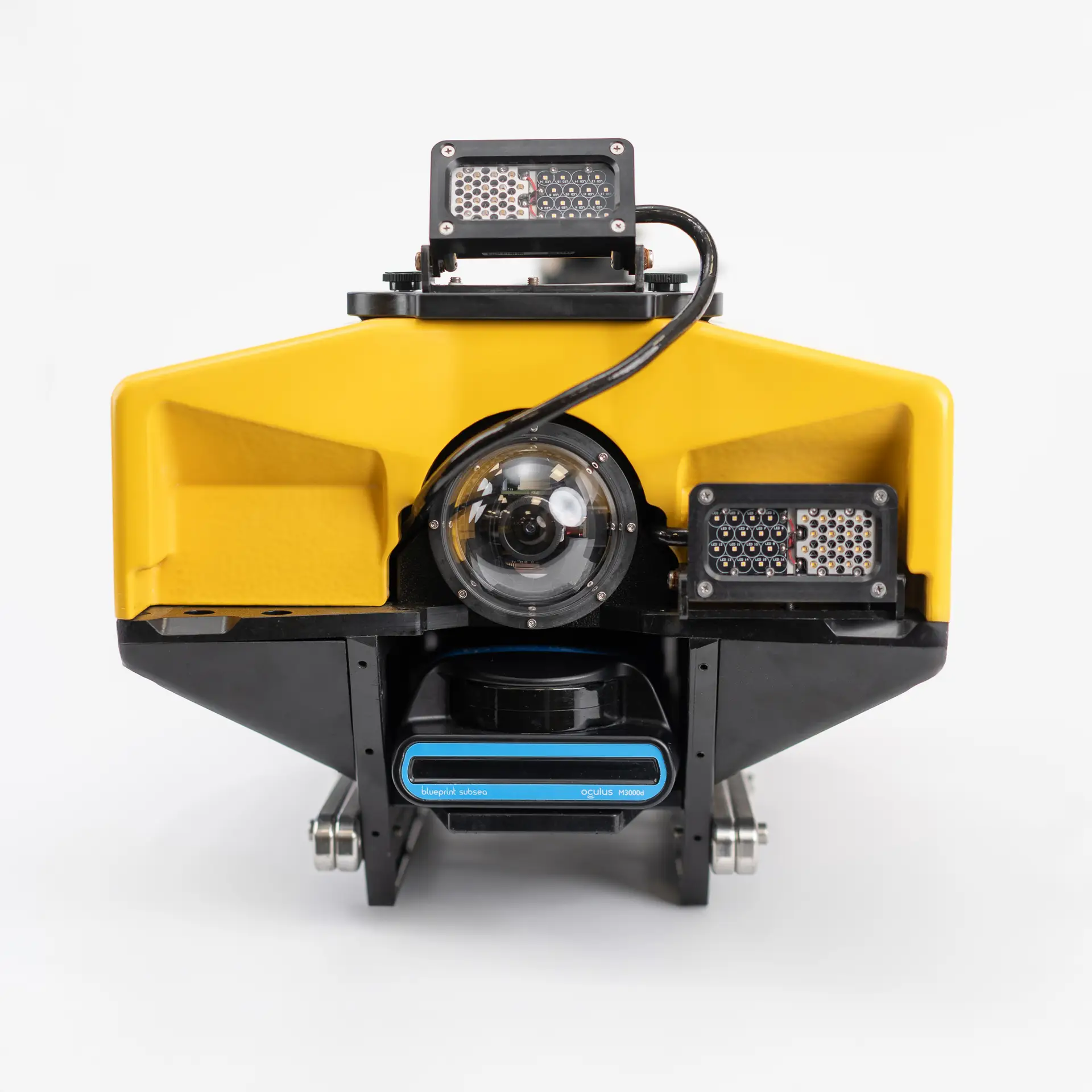

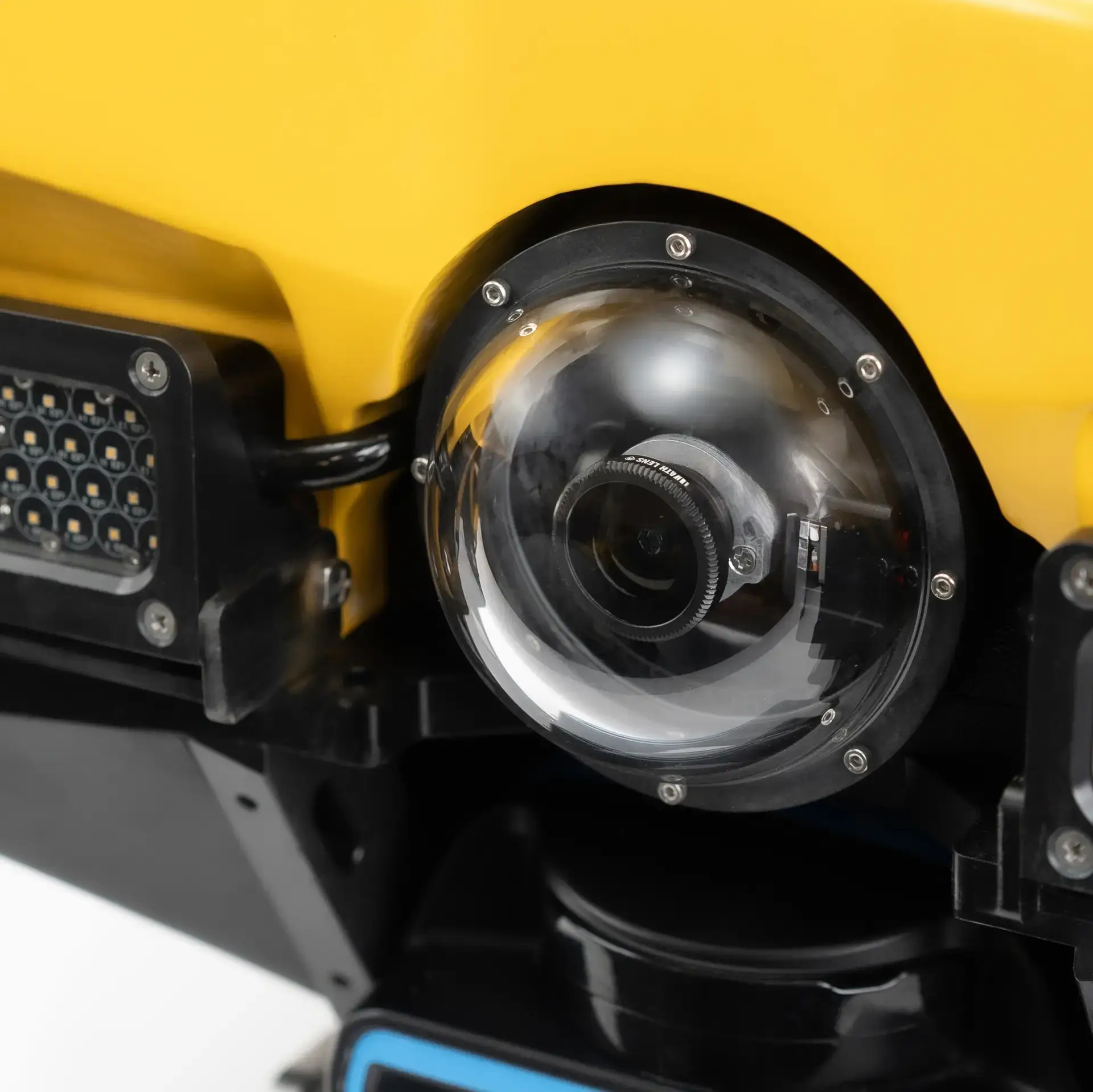

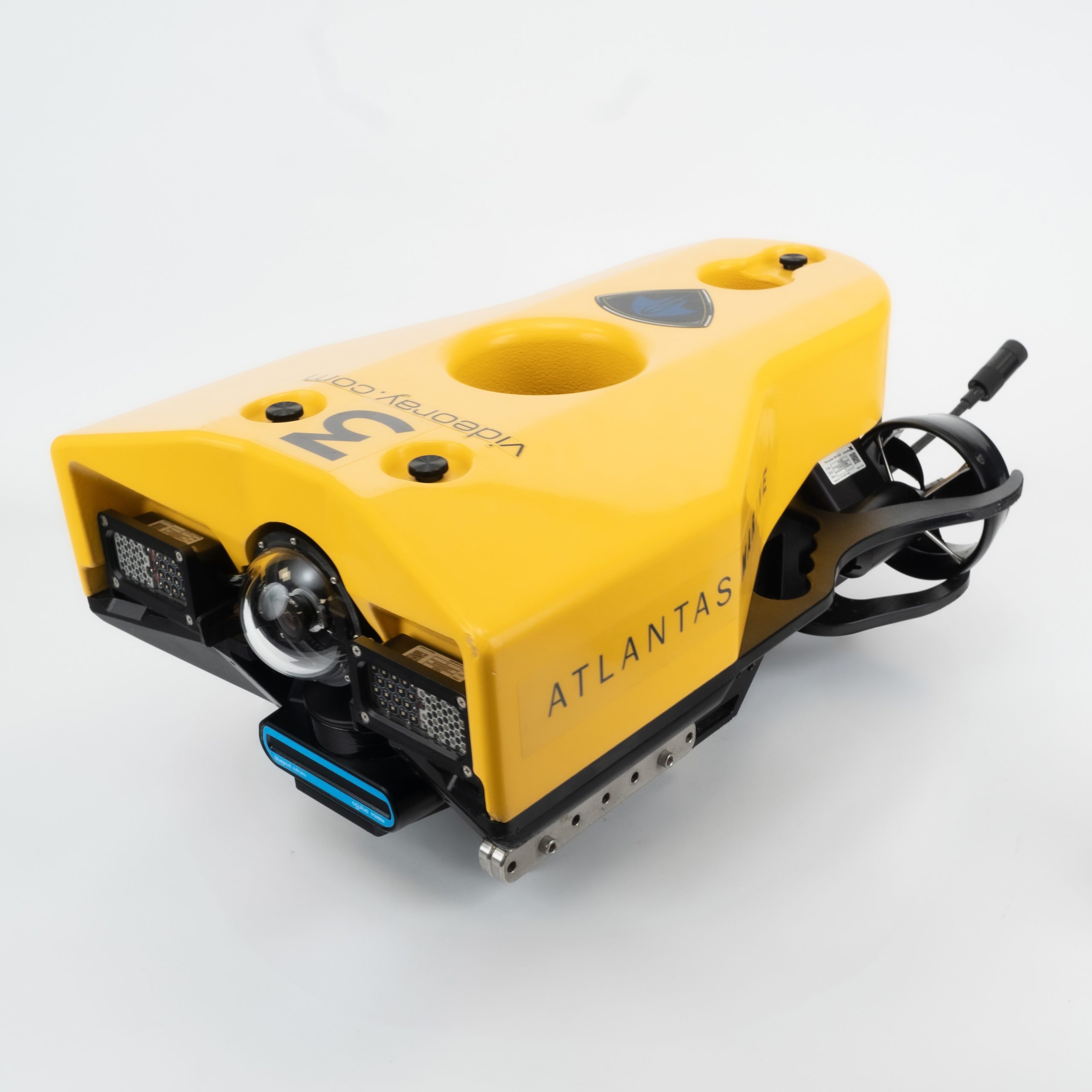

High-Definition Camera
The integrated high-definition camera supports video recording at 1920x1080 resolution and captures 13-megapixel still images, offering superior clarity for detailed inspections, with options for manual and auto-focus.

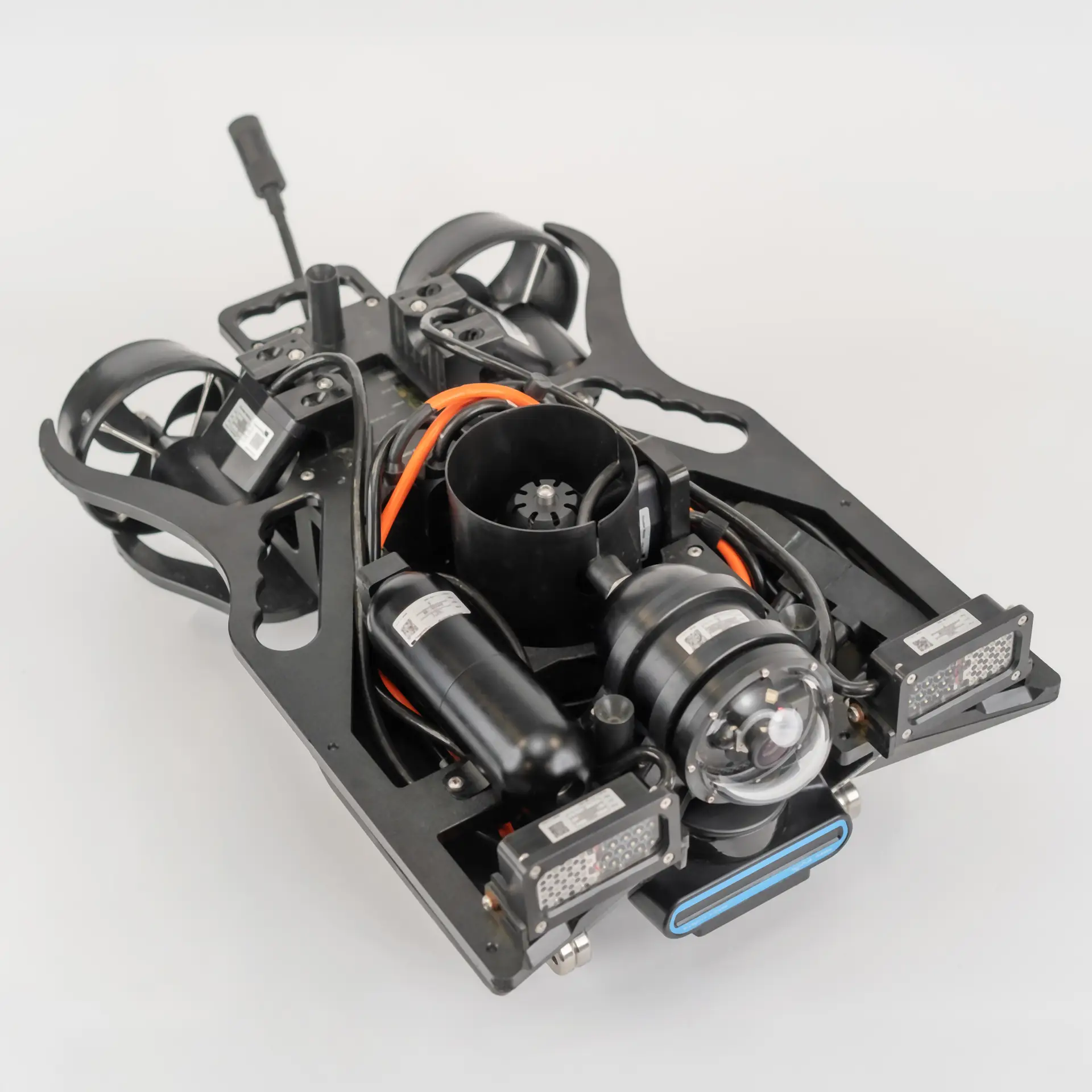

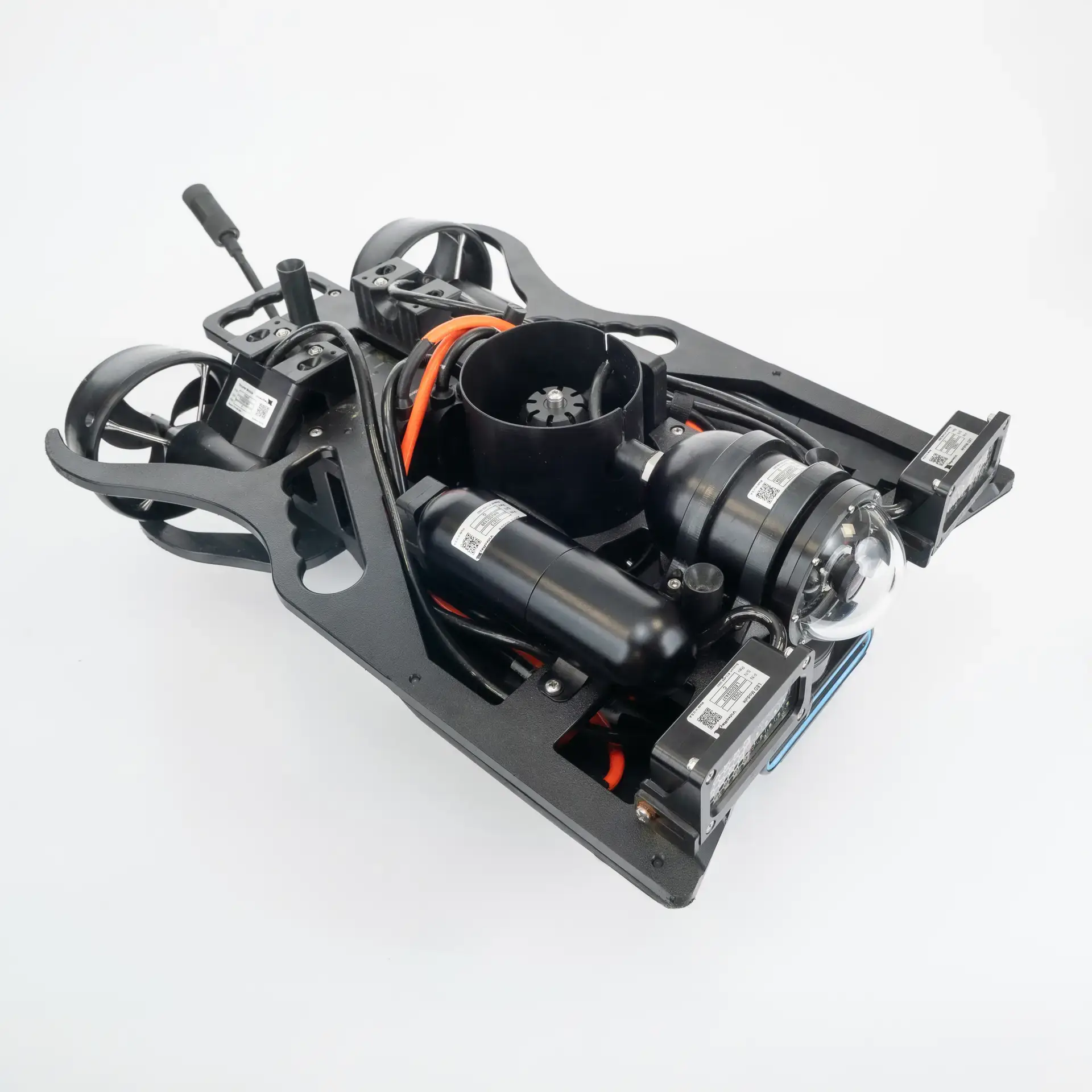

Modular Component Design

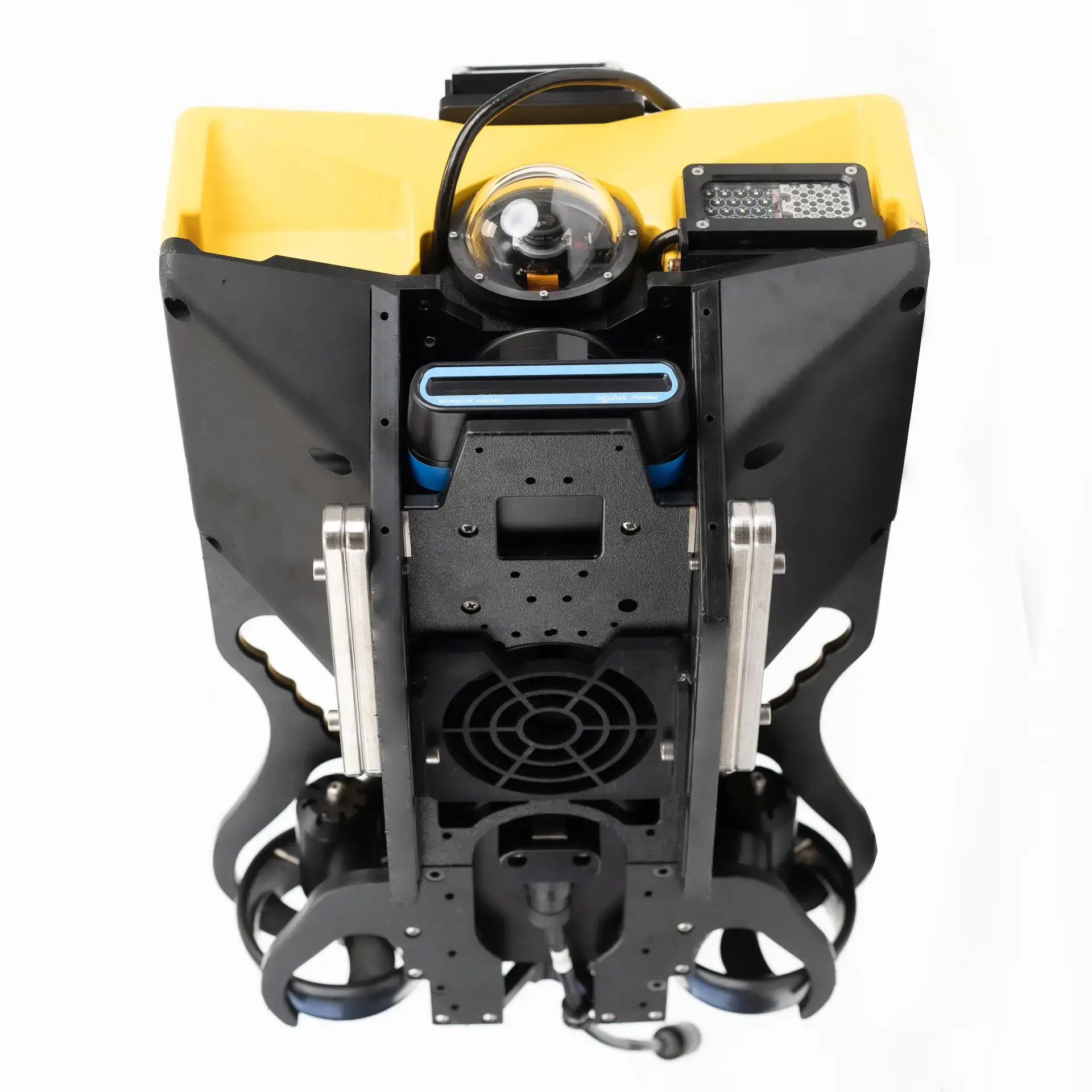

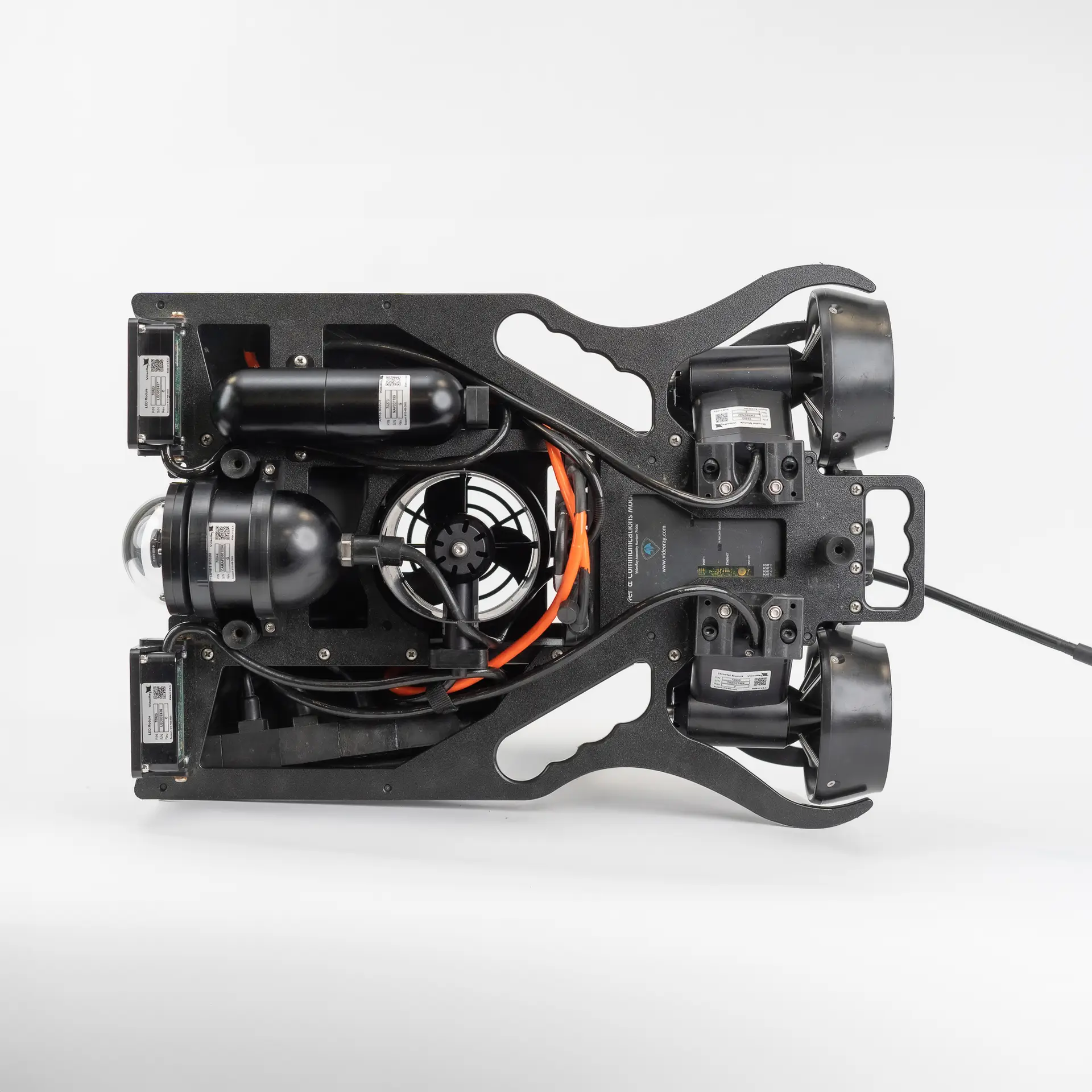

The Pro 5 is built on a modular platform with interchangeable components, providing the flexibility to reconfigure quickly for diverse operational needs, reducing downtime and increasing efficiency.

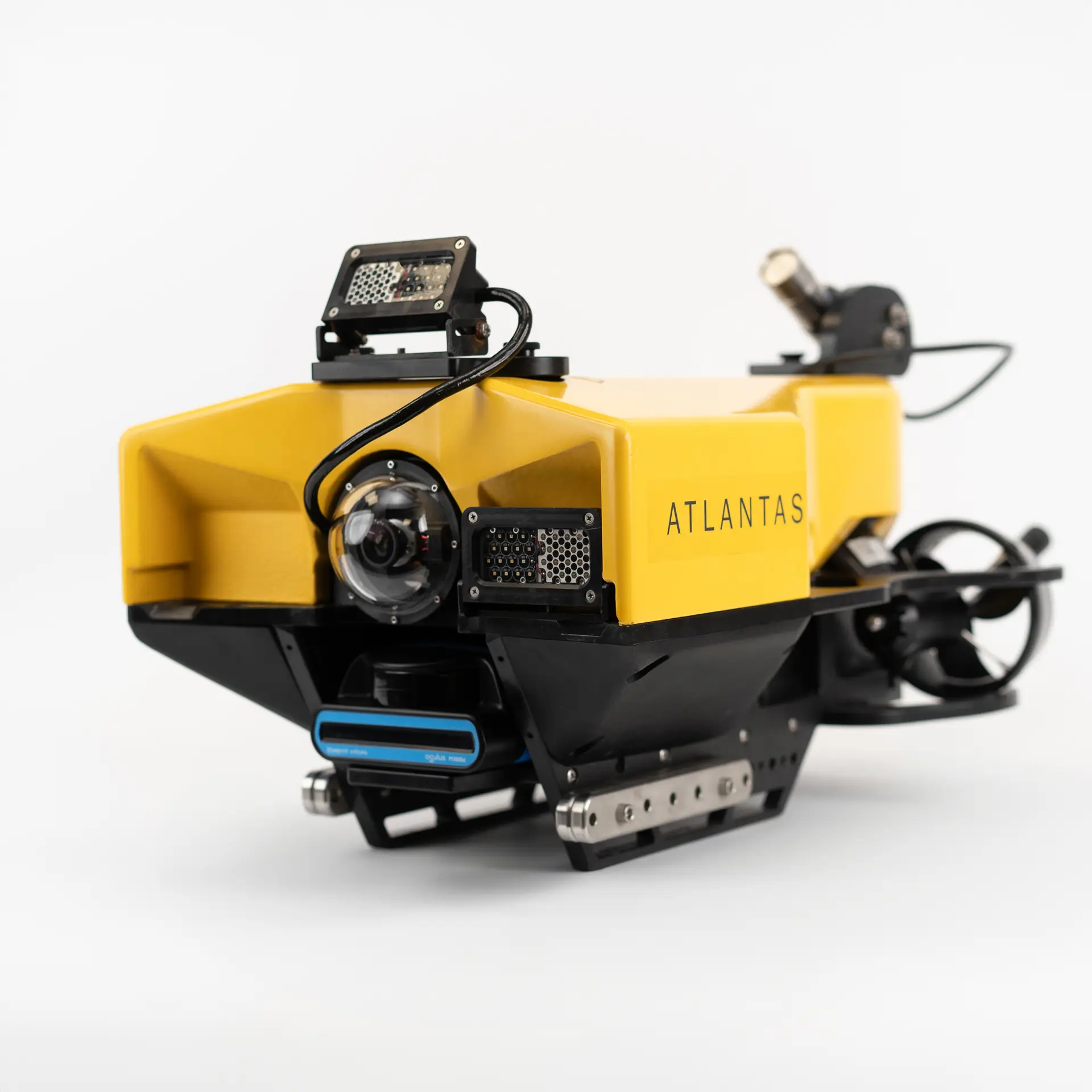

Powerful LED Lighting System

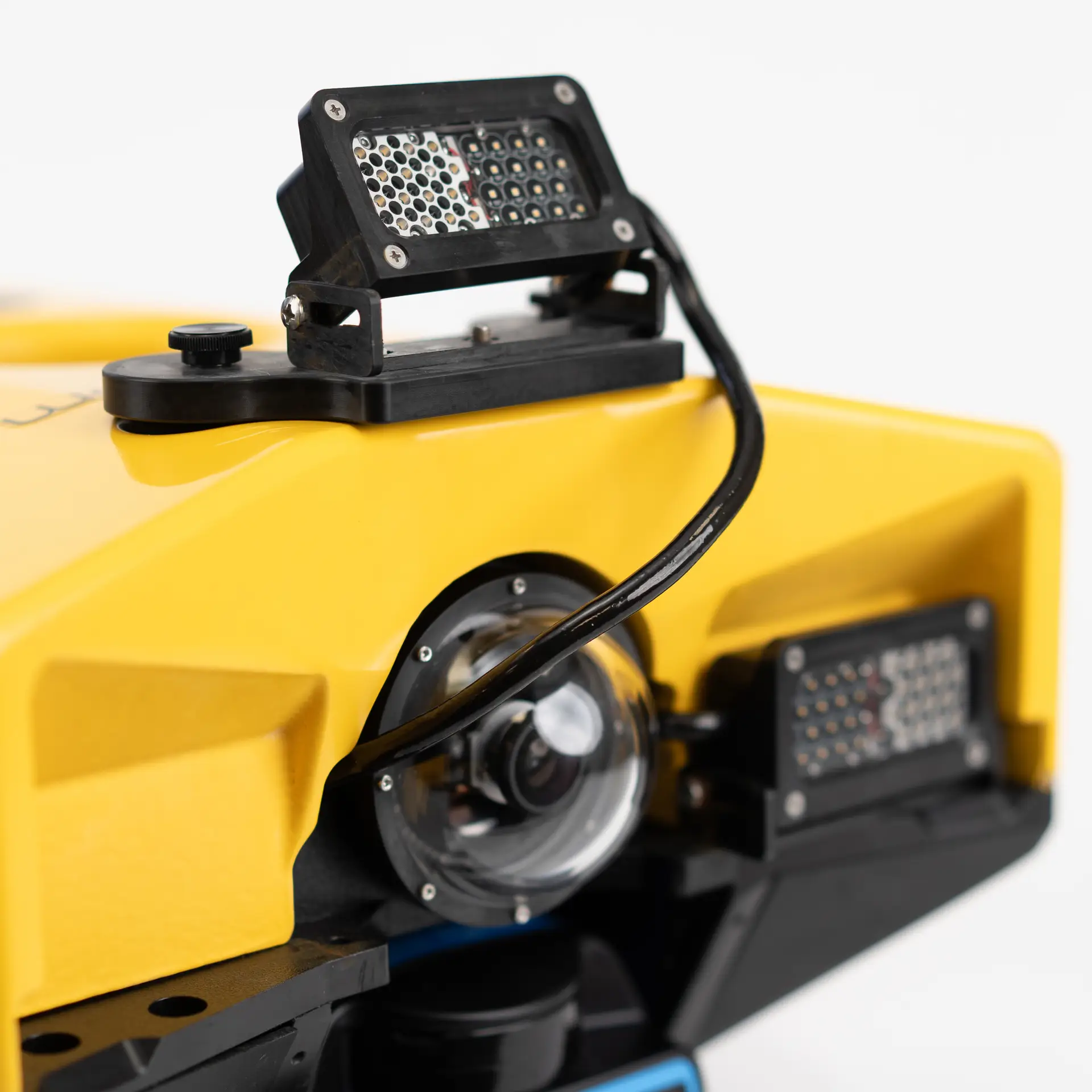

Equipped with dual LED light arrays, the Pro 5 delivers up to 15,200 lumens of brightness, with independent control for spot and flood beam options, ensuring excellent illumination for underwater visibility.
Integrated Navigation Sensors
Its advanced navigation system includes a 9 DOF IMU, magnetic compass, and depth sensor, enabling precise orientation and stable operations in complex underwater environments.
ROV Capabilities
Underwater ROVs you can trust, wherever your mission takes you
VideoRay Mission Specialist Series vehicles are designed and built with flexibility in mind. The modular design enables easy maintenance and seamless integration with a variety of tools for a custom solution to your underwater challenges.
Modular Design - Easy to Maintain
High-Definition Camera
Three Powerful Thrusters
Multiple Add-on's for Specific Mission Requirements
15,2000 Lumen Brightness Lights
Mission Specialist Pro 5
Navigate to
Features
Lightweight and Compact Design
The Pro 5’s lightweight build, weighing only 10 kg, and compact dimensions make it an ideal choice for operations requiring quick setup and mobility.

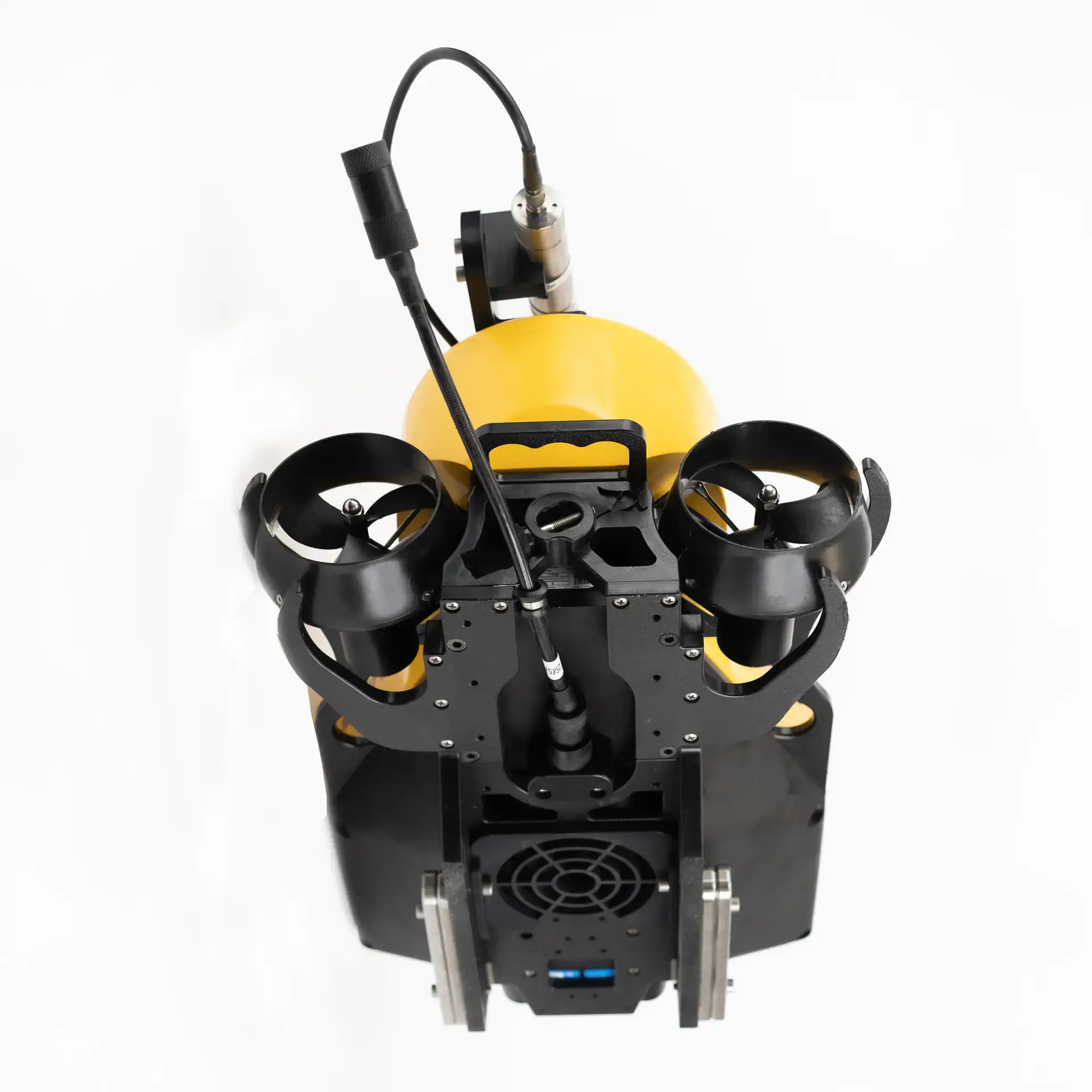

Advanced Thruster System
With its two vectored horizontal thrusters and a vertical thruster, the Pro 5 offers exceptional maneuverability, allowing it to operate effectively in dynamic tidal waters and confined spaces, while achieving speeds exceeding 4.4 knots.

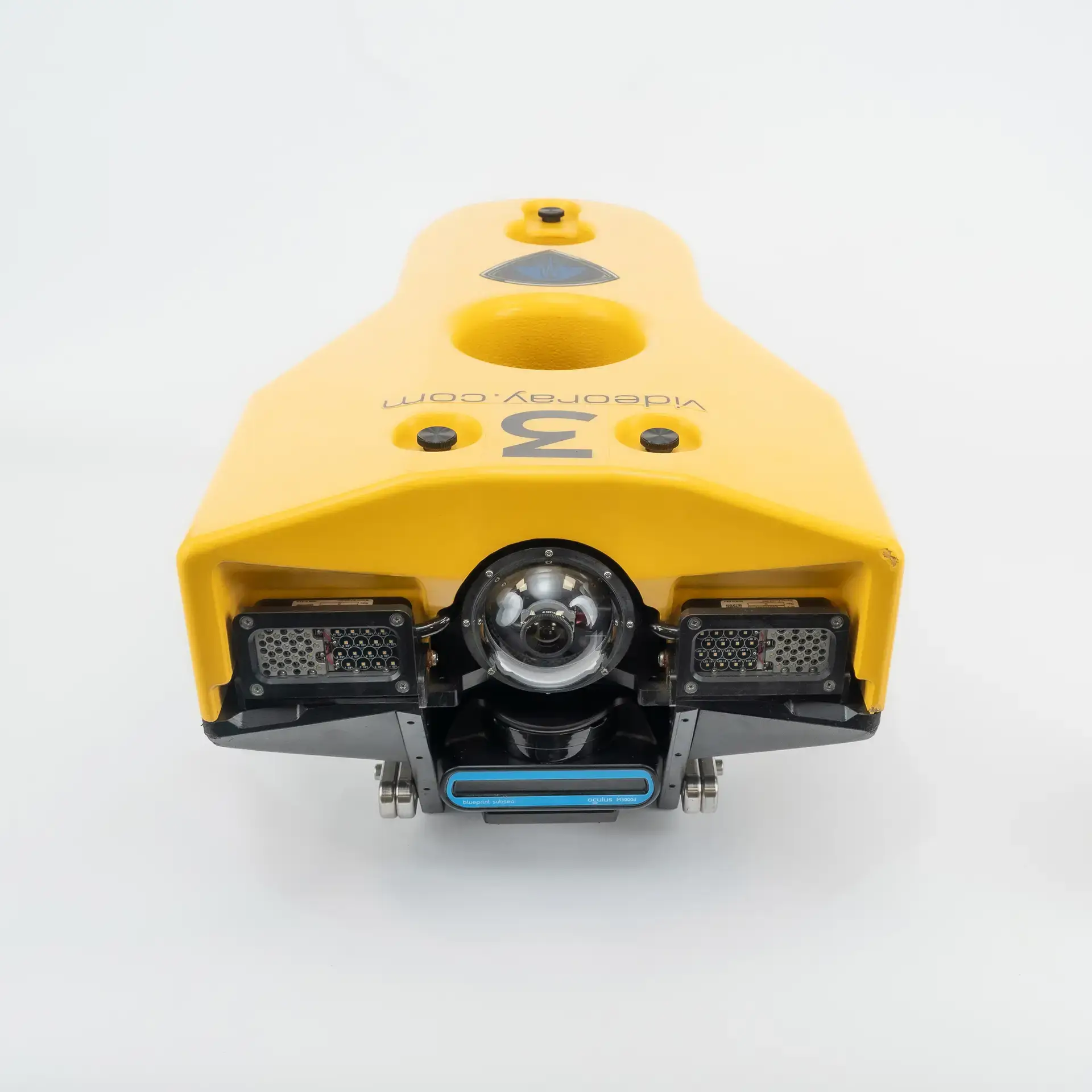

High-Definition Camera
The integrated high-definition camera supports video recording at 1920x1080 resolution and captures 13-megapixel still images, offering superior clarity for detailed inspections, with options for manual and auto-focus.
Modular Component Design
The Pro 5 is built on a modular platform with interchangeable components, providing the flexibility to reconfigure quickly for diverse operational needs, reducing downtime and increasing efficiency.

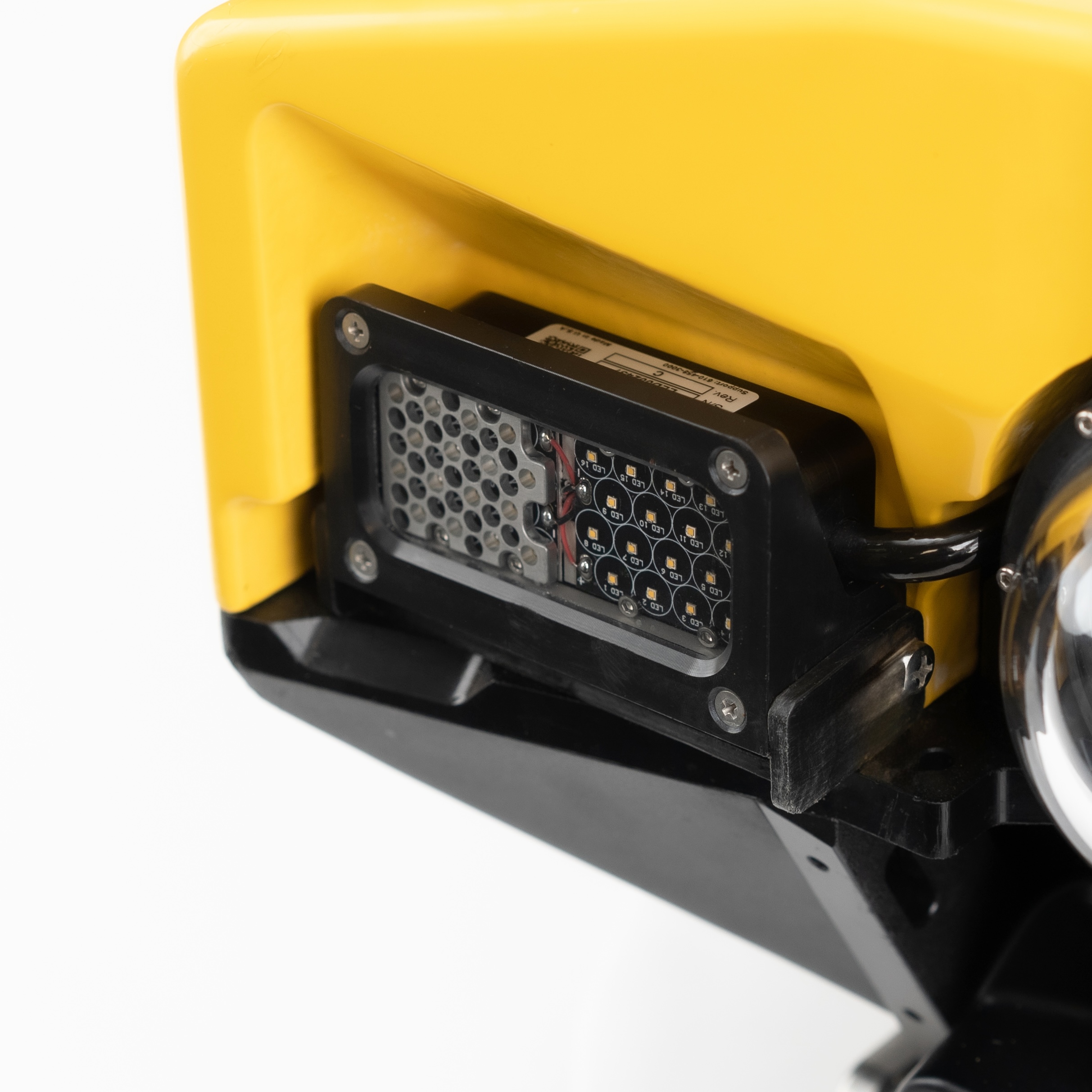

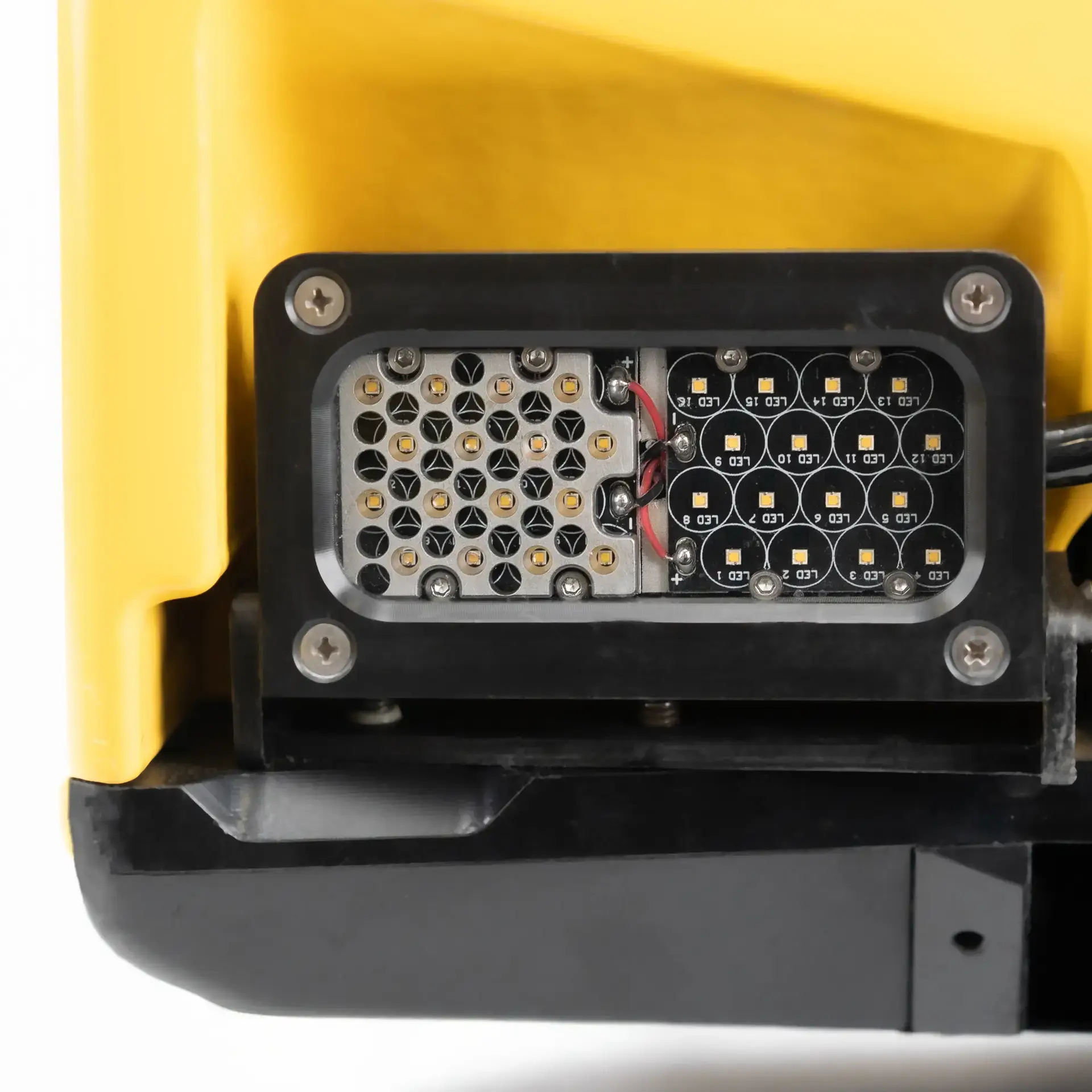

Powerful LED Lighting System
Equipped with dual LED light arrays, the Pro 5 delivers up to 15,200 lumens of brightness, with independent control for spot and flood beam options, ensuring excellent illumination for underwater visibility.
Integrated Navigation Sensors
Its advanced navigation system includes a 9 DOF IMU, magnetic compass, and depth sensor, enabling precise orientation and stable operations in complex underwater environments.
Benefits
Improved Efficiency and Accessibility
The Pro 5’s lightweight and compact design reduces the need for complex deployment setups, enabling quick and effortless operations even in remote or challenging locations, which saves time and lowers operational costs.
Enhanced Versatility for Diverse Applications
With its modular design and compatibility with various accessories, the Pro 5 can adapt to a wide range of underwater missions, making it a cost-effective solution for inspections in confined spaces, dynamic waters, and environments requiring tailored configurations.
Increased Operational Confidence and Precision
The Pro 5 delivers clear high-definition visuals and accurate navigation data, ensuring operators can make informed decisions and complete complex tasks with precision, even in low-visibility or demanding underwater conditions.
Specifications
Overview
Power Requirements: 110/220 VAC (1 to 2.6 kW)
Total System Weight (Sub & OCC): 25.2 kgs (55.5 lbs)
Cases: 2-3 Watertight Rugged Hard Cases
Owner’s Manual: Online Digital
System Tool Kit: Included
Communications Protocol: RS-485 and Ethernet
Warranty: 2 Year Comprehensive
Depth Rating:Â Up to 305 m (1,000 ft)
Size (l x w x h): 51cm x 33cm x 26cm
Weight: 11.8 kg (26 lbs)
Ballast:Â Modular
Case:Â 24.6 x 19.4 x 13.8 in (62.5 x 49.3 x 35.1 cm) less than 22.7 kg (50 lbs) with submersible and payload
Camera
High Definition: With Ethernet interface (IP)
Video: up to 1920 x 1080, 25 fps
Mechanical: Standard VideoRay 9 pin connection Ethernet, 12 VDC, RS-485 Auto or Manual Focus Optical Glass Dome
Features: White Balance Control up to 16x Digital Zoom (64 steps) 13 Megapixel Still Image Capture
Sensitivity: Less than 1 lux (standard)
View Angle: 160° Tilt (180° FoV) Horizontal: 136° Vertical: 92°
Interface: Ethernet Compression: MJPG
Power
400 VDC power module
1500 W @ 48 VDC
Full monitoring of input voltage, output current, temperature
Buoyancy
Float: 305 m rated
Operator Control Console (OCC)
Power Input: 90-260 VAC (47-440 Hz)
Power Output: 400 VDC, 2600 W
Display: HD Daylight Viewable Monitor
Weight: 15.2 kg (33.6 lbs)
Case: Water tight 0.62 x 16.87 x 8.12 in (52.37 x 42.85 x 20.62 cm)
Processing: Integrated i7 system processor
Controller: Industrial Programmable Hand Controller
Safety: Integral Line Isolation Monitor Emergency Kill Switch Ports: 3 external USB ports 1 external Ethernet port
Communications
3 x 100 Mbps Ethernet ports 3 x RS-485 ports Power control and monitoring
Propulsion
Brushless thruster with integrated controller 2 Vectored Horizontal Thrusters
Forward: 20.3 kgs (44.7 lbs)
1 Vertical Thruster
Max speed: > 4.4 knots
Lighting
LED 2 independent light arrays (38 Watts max ea.)
60° spot beam 110° flood beam
Each array can be individually controlled
3,000 K CCT, 80 CRI White
7,600 total lumens per LED light module; 15,200 lm total light
IMU
9 DOF IMU and magnetic compass
Pressure based depth sensor: 100 Bar, with 400 Bar optional
0.2° Static Roll/Pitch
0.5°Dynamic Roll/Pitch
1.0° Yaw
18°/h/ Gyro Bias stability
