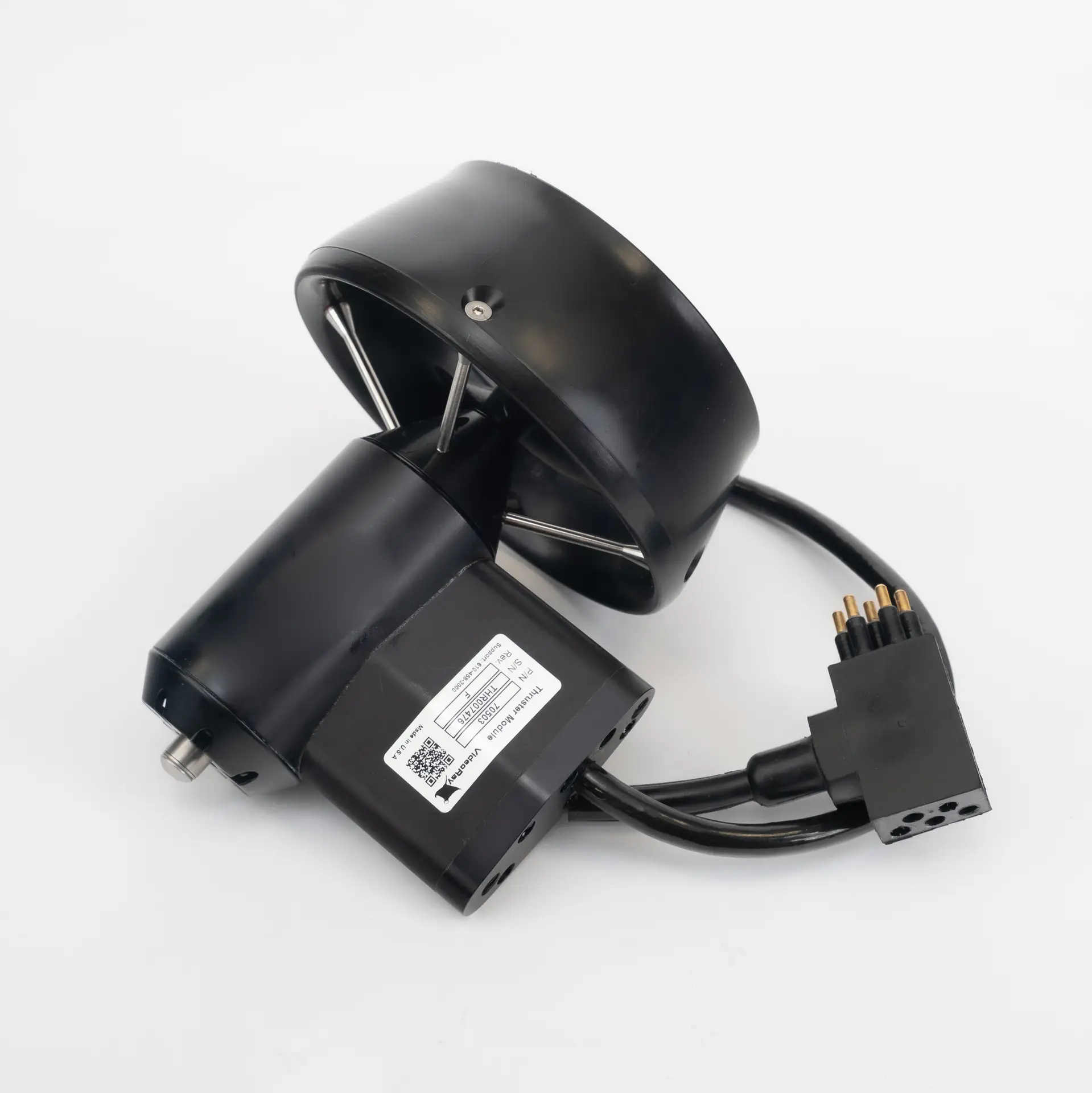

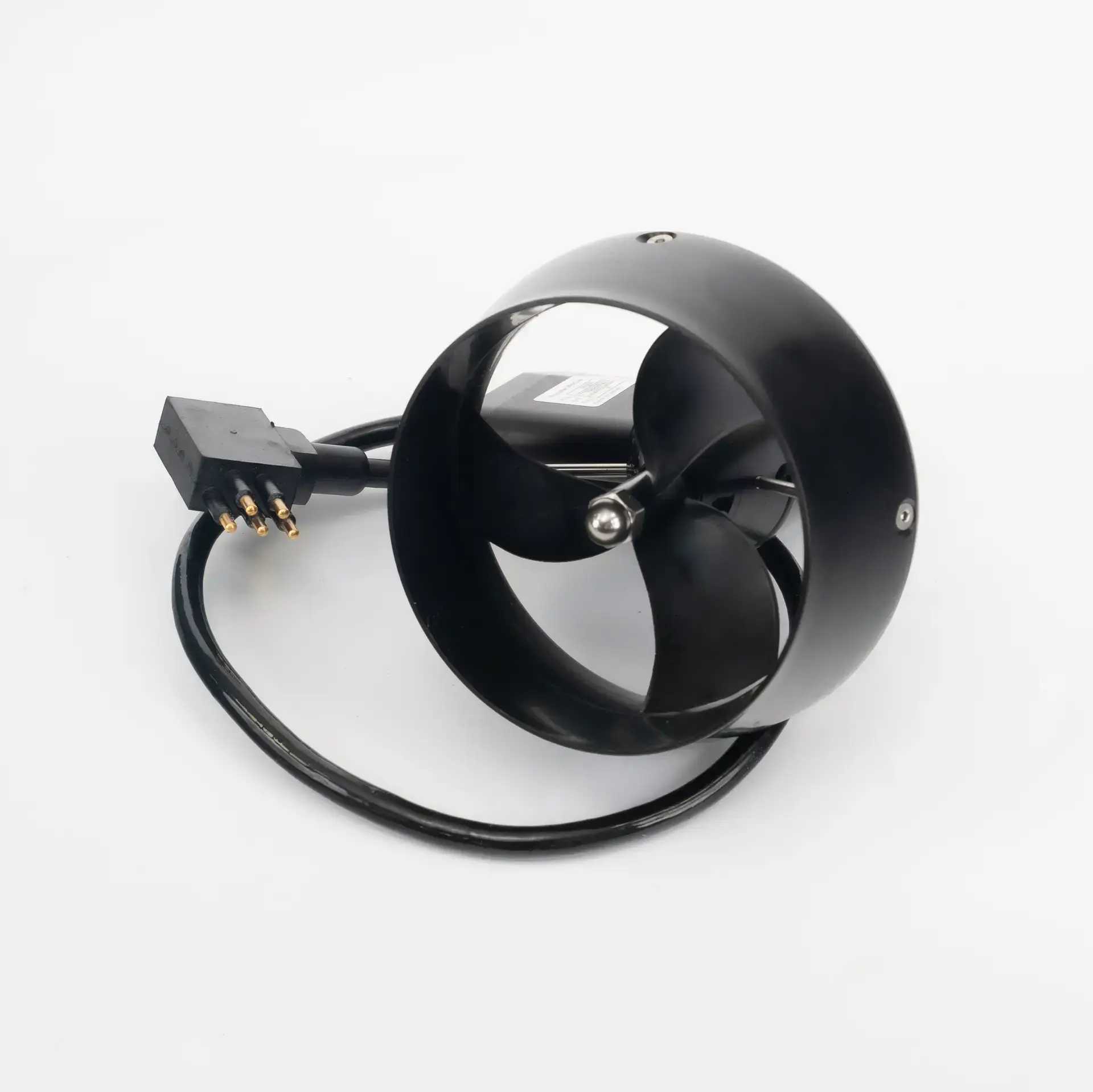

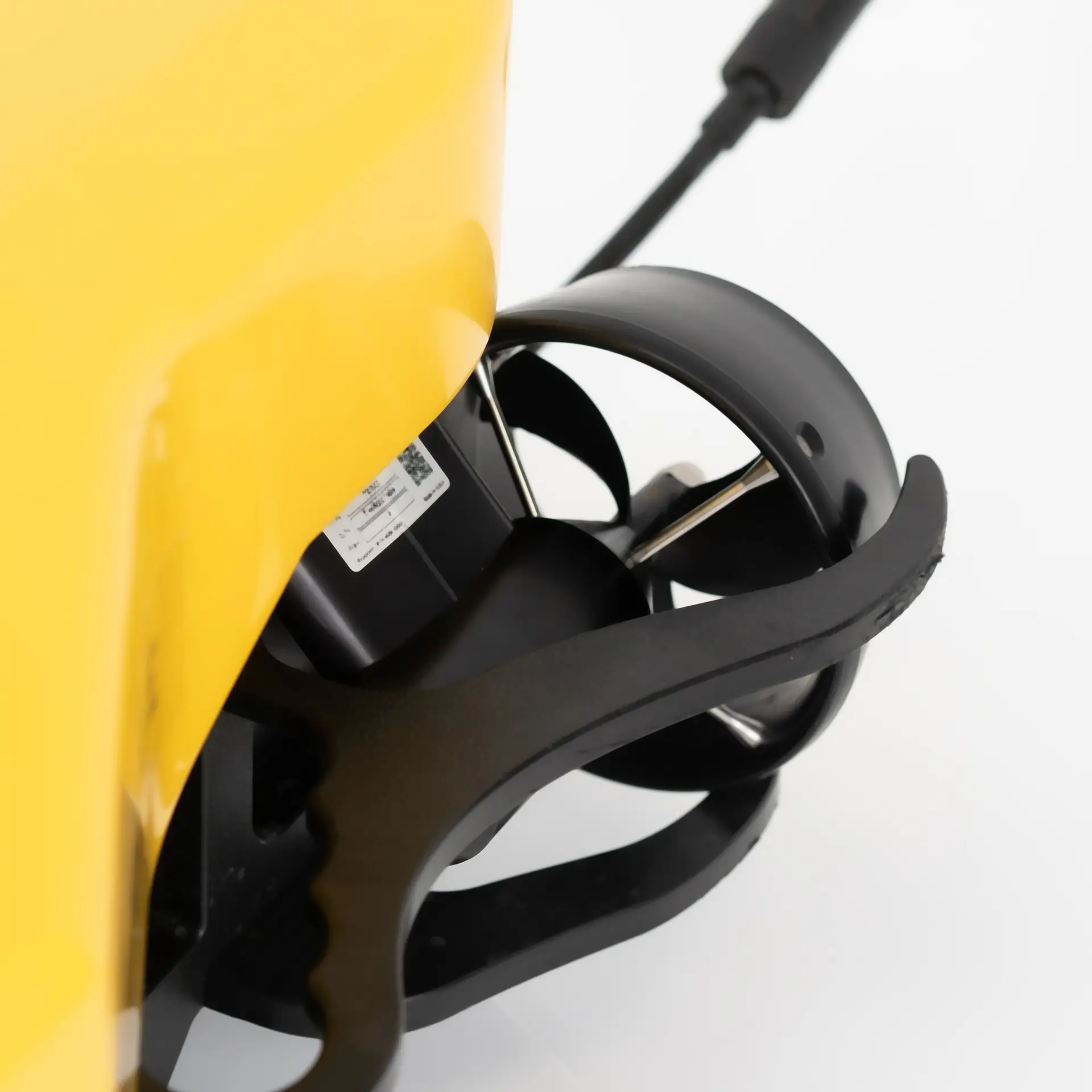

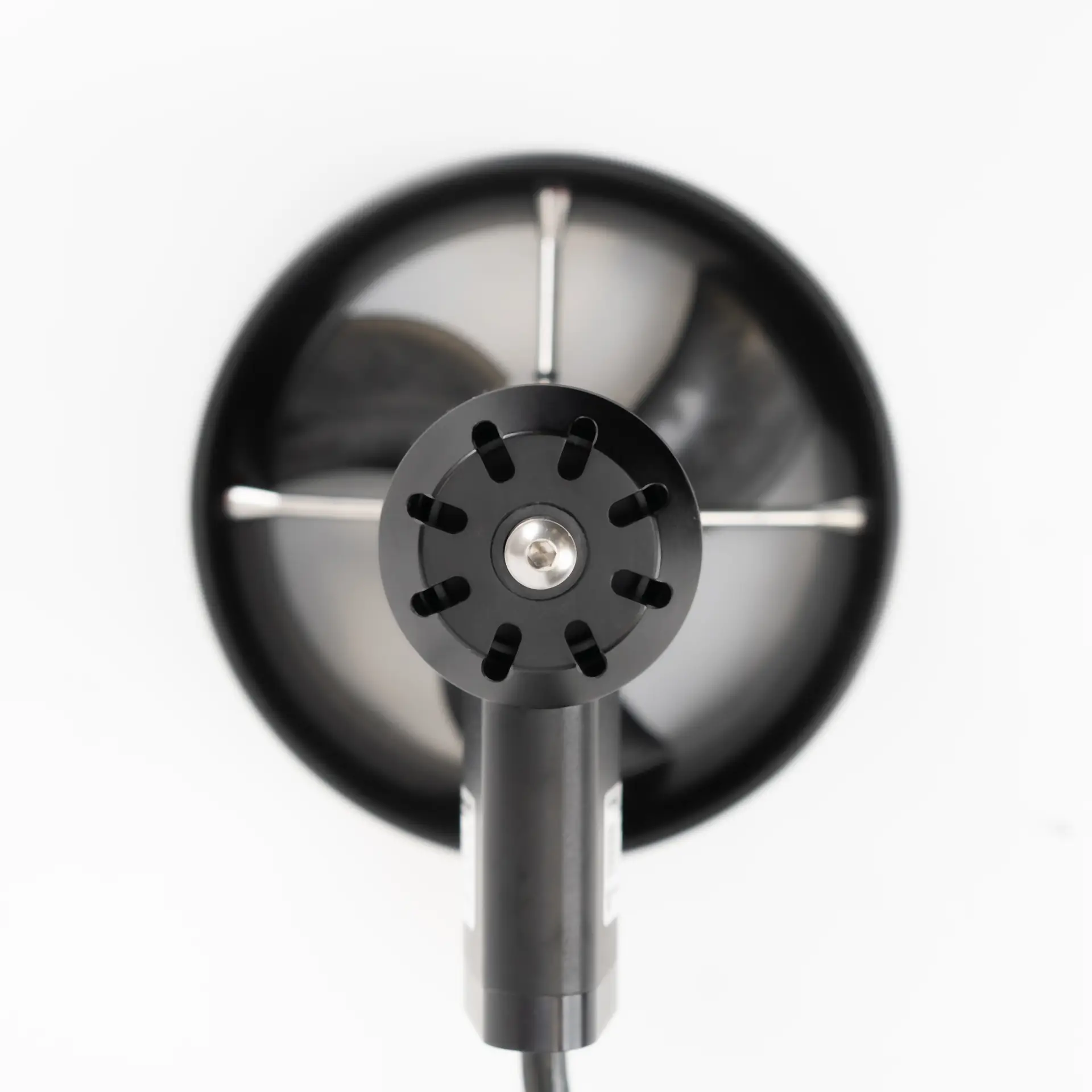

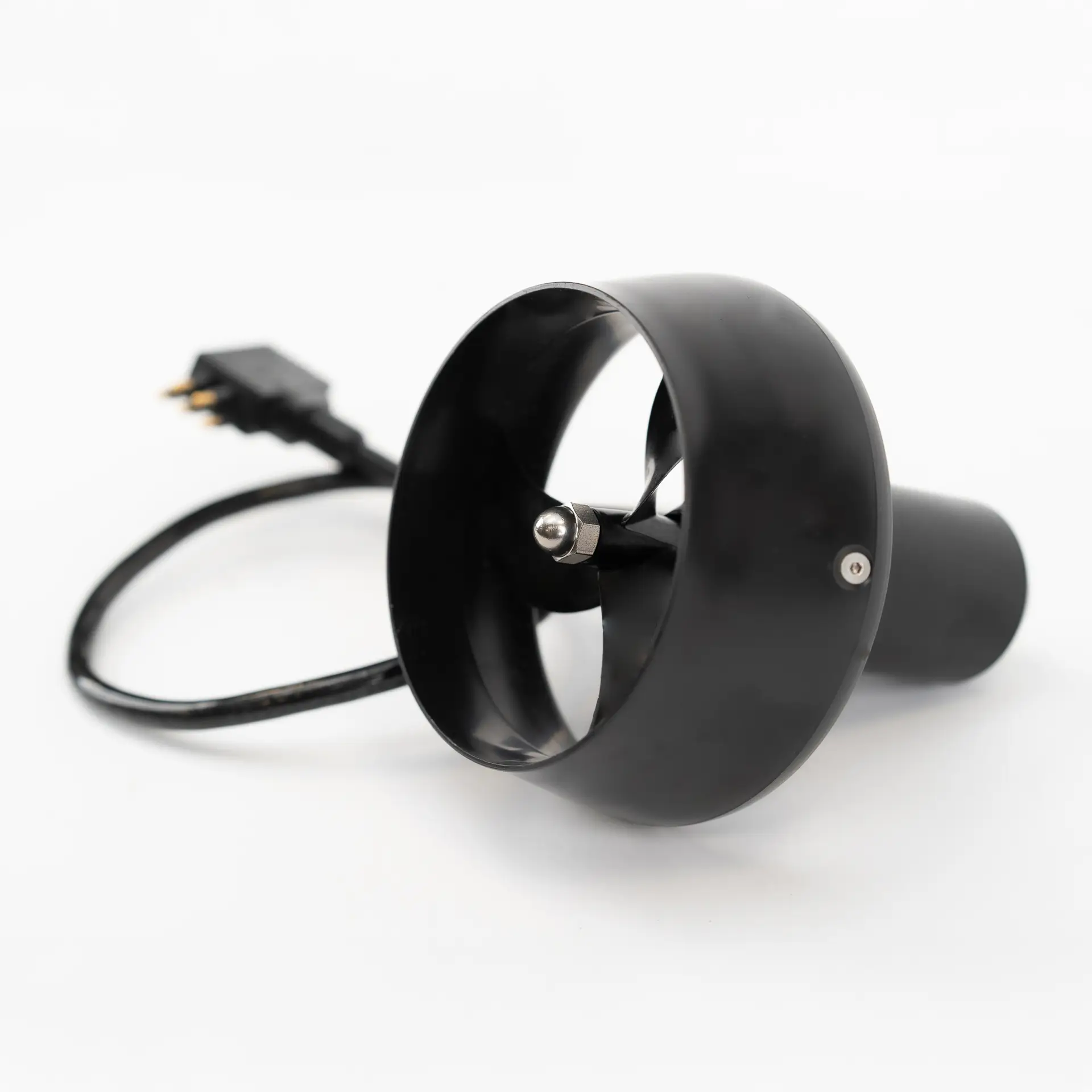

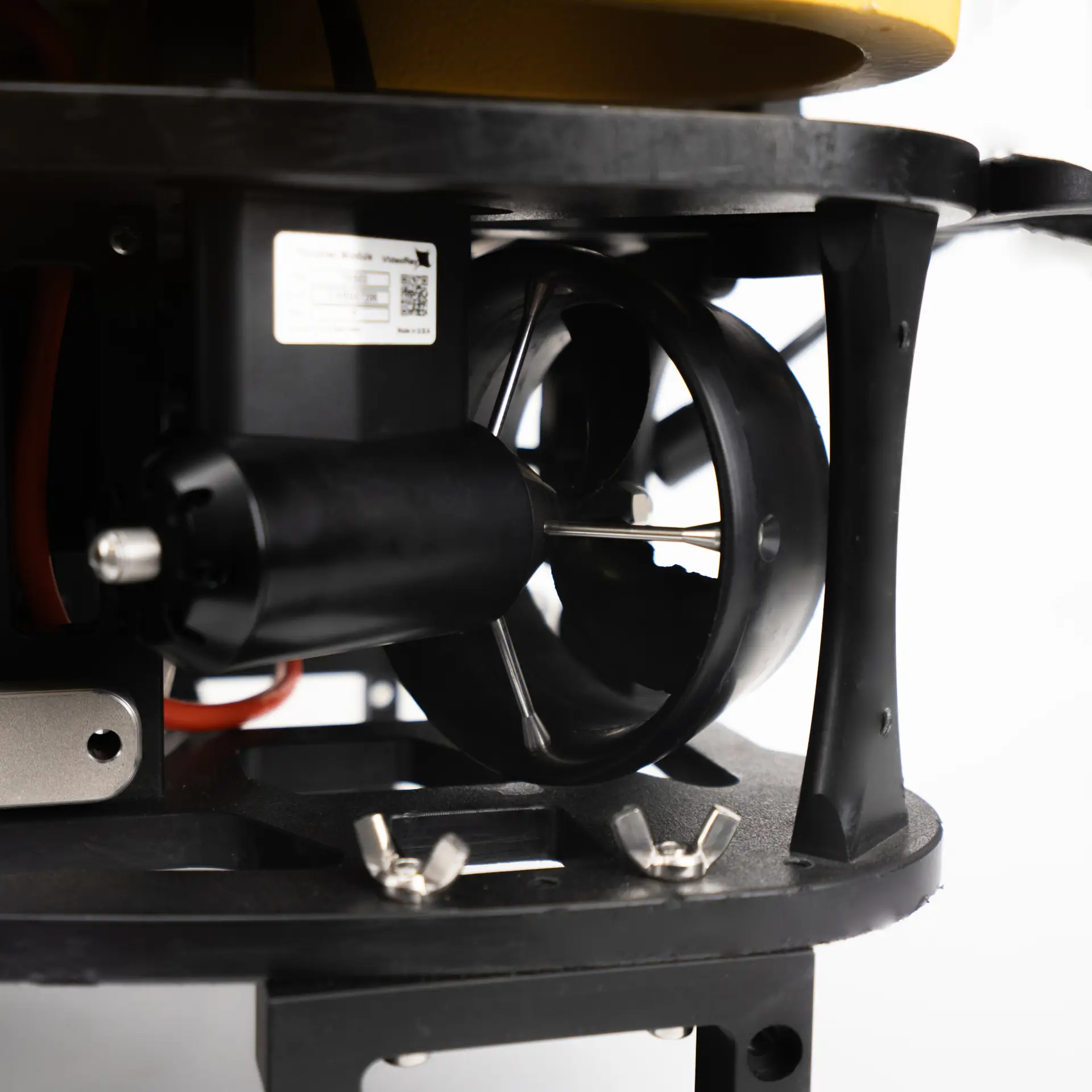

The VideoRay Mission Specialist submersibles use a modular Thruster Module configuration that optimises vehicle designs for water conditions and payload delivery requirements. Modular thrusters are also easy to replace in the field, allowing for rapid and continuous system operation without downtime.

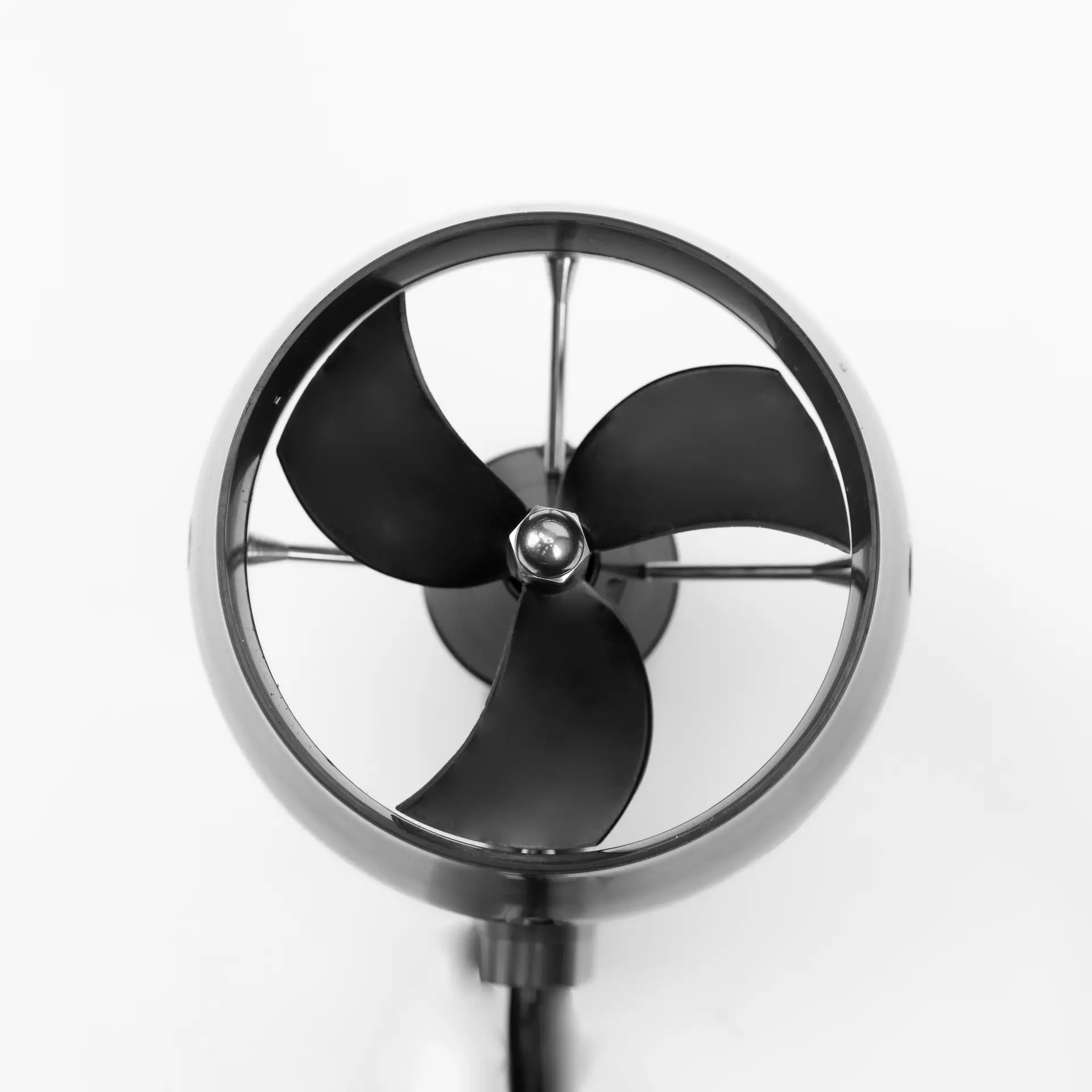

Mission Specialist thruster propellers are designed to be used on counter-rotating thruster arrangements to eliminate torque roll and yaw.
Engineered for rapid replacement, the MSS thruster module can be swapped out in minutes without tools—keeping operations running even in the harshest subsea conditions.
Combining a high-efficiency brushless motor and electronic speed controller in a compact assembly ensures powerful, responsive thrust with minimal maintenance.
Each thruster is filled with non-conductive mineral oil and pressure-compensated for deep water use—offering robust performance and corrosion protection in demanding underwater environments.
Weighing just over 0.6kg, the module is easily handled and mounted, supporting Atlantas Marine’s ethos of efficiency and ease-of-use across all ROV operations.
Enabling agile and precise manoeuvring—ideal for inspection tasks, confined spaces, or stability in dynamic conditions.
A dedicated variant uses dye-free mineral oil, developed in response to water utility requirements—perfect for safe deployment in clean water reservoirs and tanks.
The plug-and-play design enables swift thruster swaps—minimising downtime during operations and keeping critical missions on schedule.
Its oil-filled, pressure-compensated housing protects internal components from corrosion and pressure-related failures, ensuring consistent performance at depth.
With shared architecture across the Mission Specialist range, spares and servicing are simplified—reducing training needs and operational complexity.
2,000 meters (6,500 feet)
Dimensions: 13.2 cm x 12.2 cm x 11.8 cm (5.19 inches x 4.80 inches x 4.64 inches) not including cable
Weight in Air: 0.65 kg (1.4 pounds)
Weight in Water: 0.33 kg (0.73 pounds)

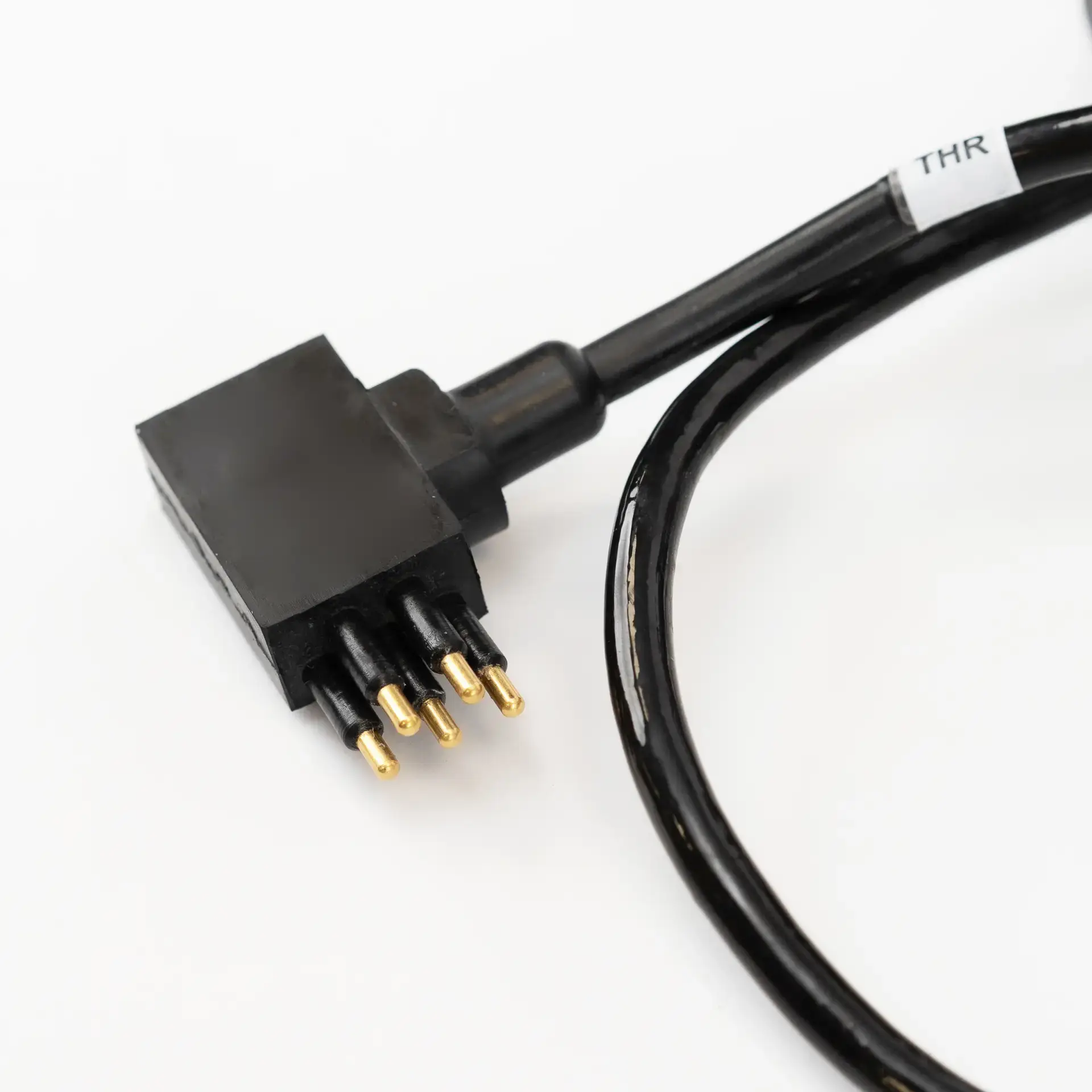

5-Pin Male / Female Connector (Stackable)
RS-485 Galvanically Isolated Control
48 VDC at 750-Watt Max input
Input Current Total
Input Voltage
RPM
Internal Temperature
