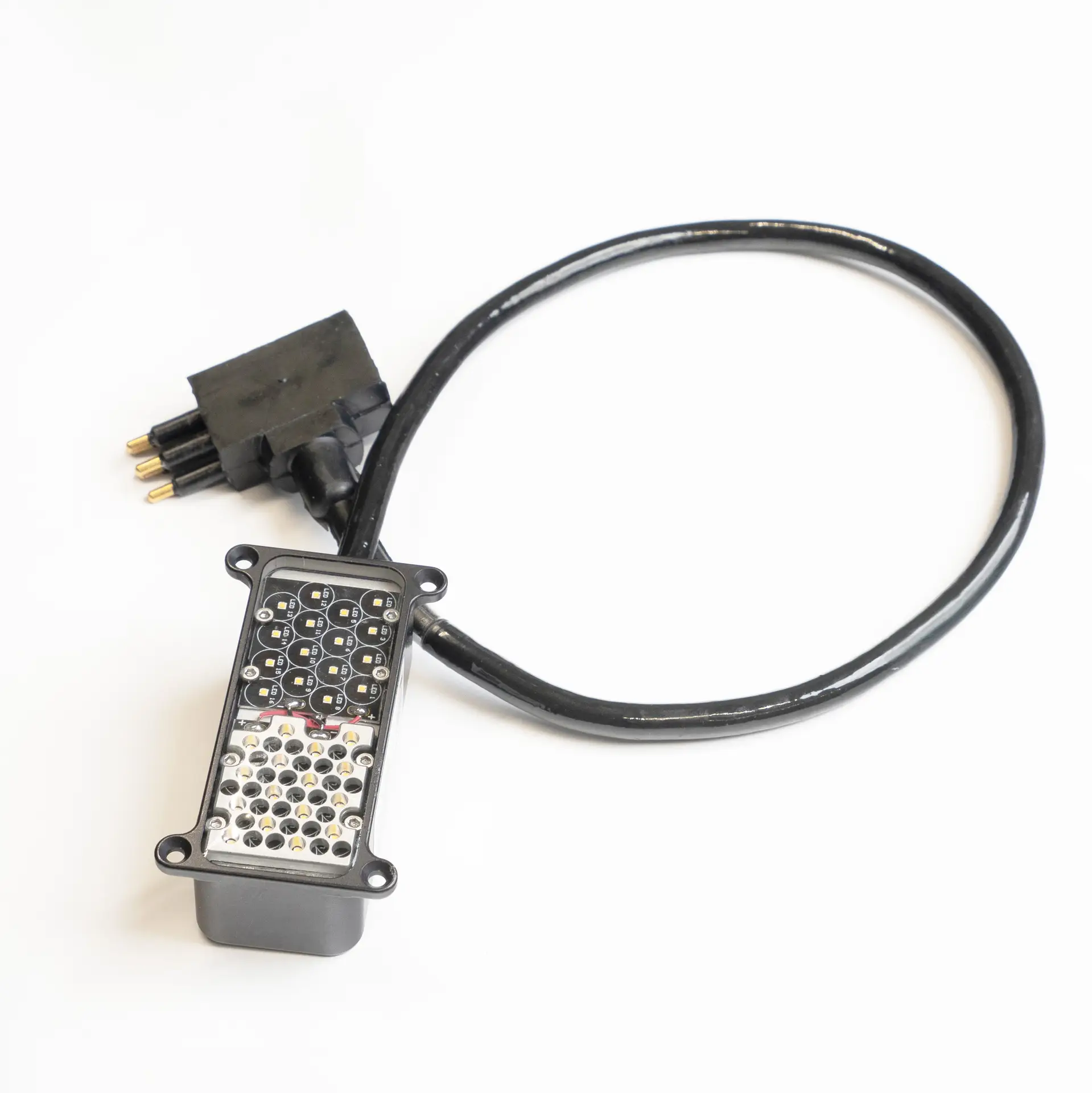

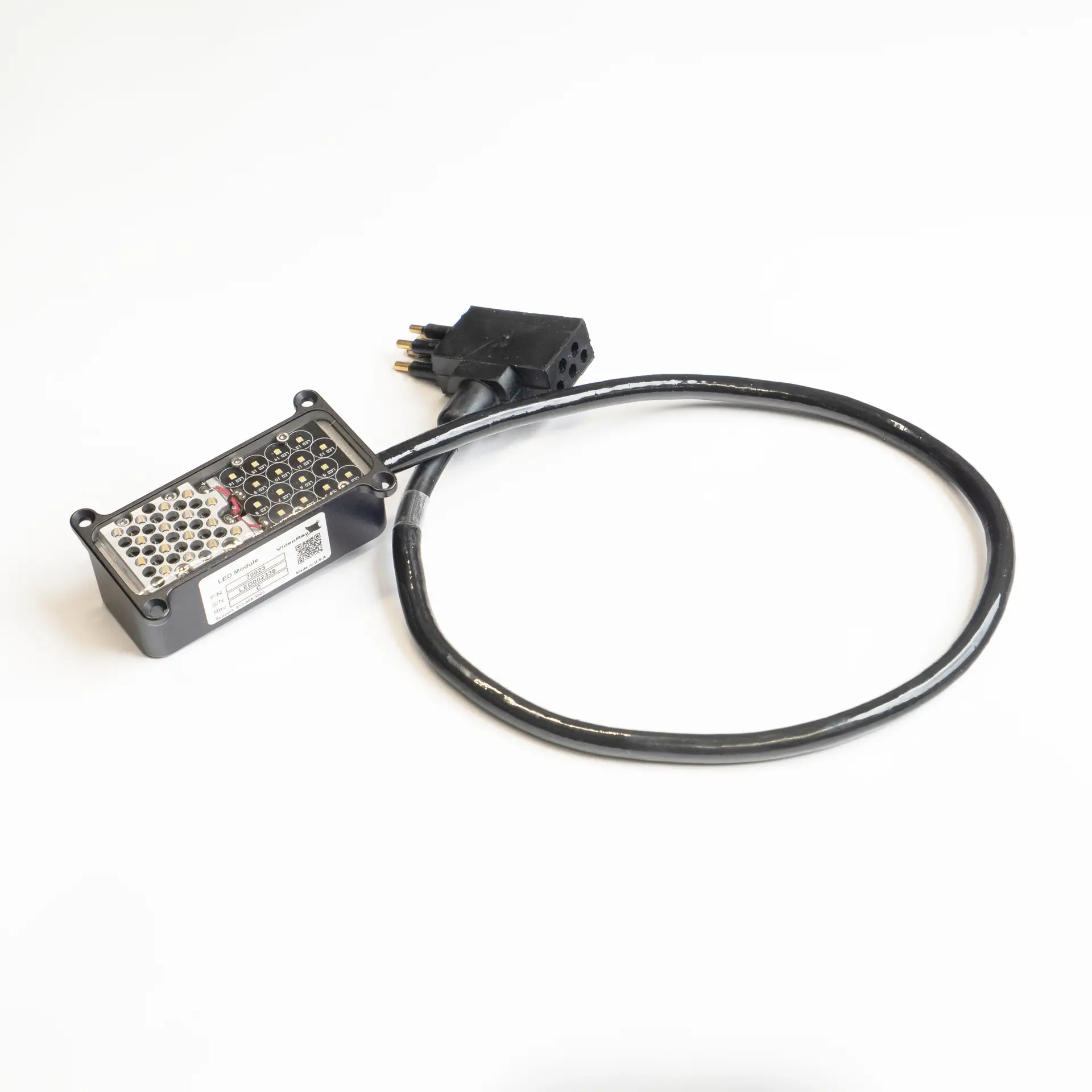

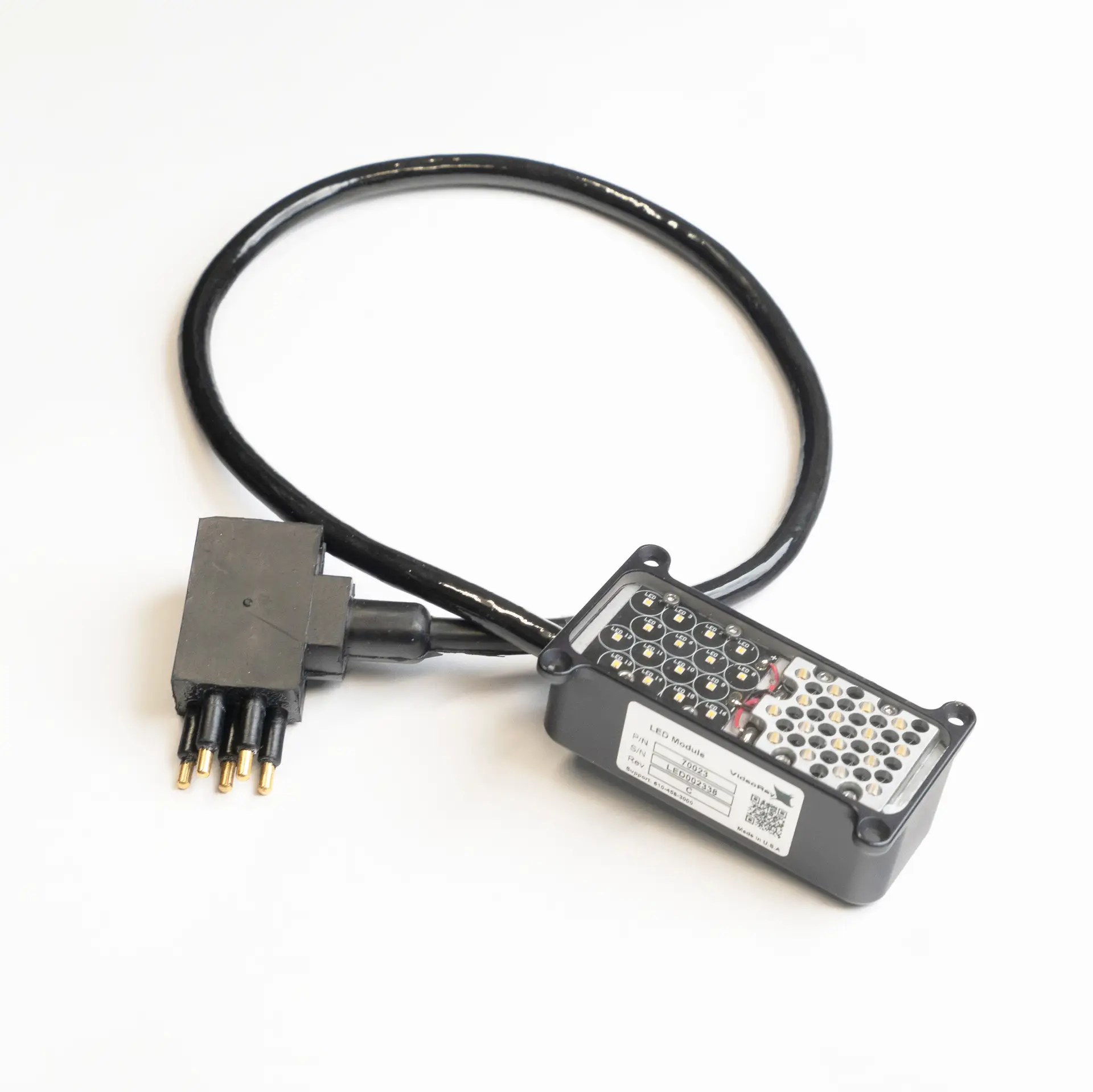

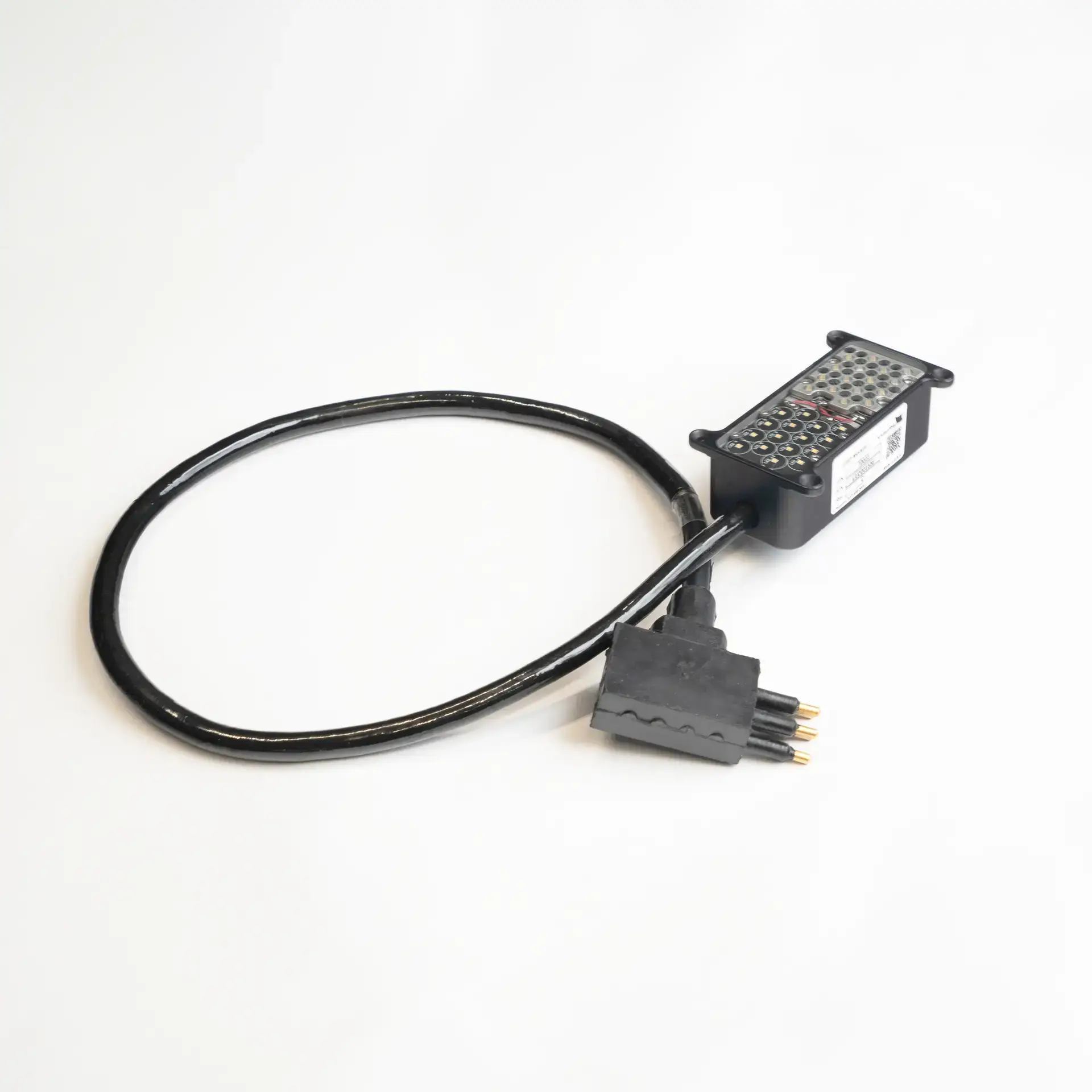

The VideoRay Mission Specialist LED Modules provide variable levels of illumination and beam pattern control. LED modules feature individually controlled spot/flood arrays and have a 60-degree spot beam, 110-degree flood beam and are constructed in a hard anodized housing.
Mount not included.Switch between a broad floodlight or focused spotlight depending on operational needs—offering maximum versatility in low-visibility environments.
Delivers up to 5,600 lumens of crisp white light, ensuring exceptional underwater visibility for inspections, navigation, and data capture.
Rated for depths up to 2,000 metres, this light module is engineered for deep-sea operations without compromise.

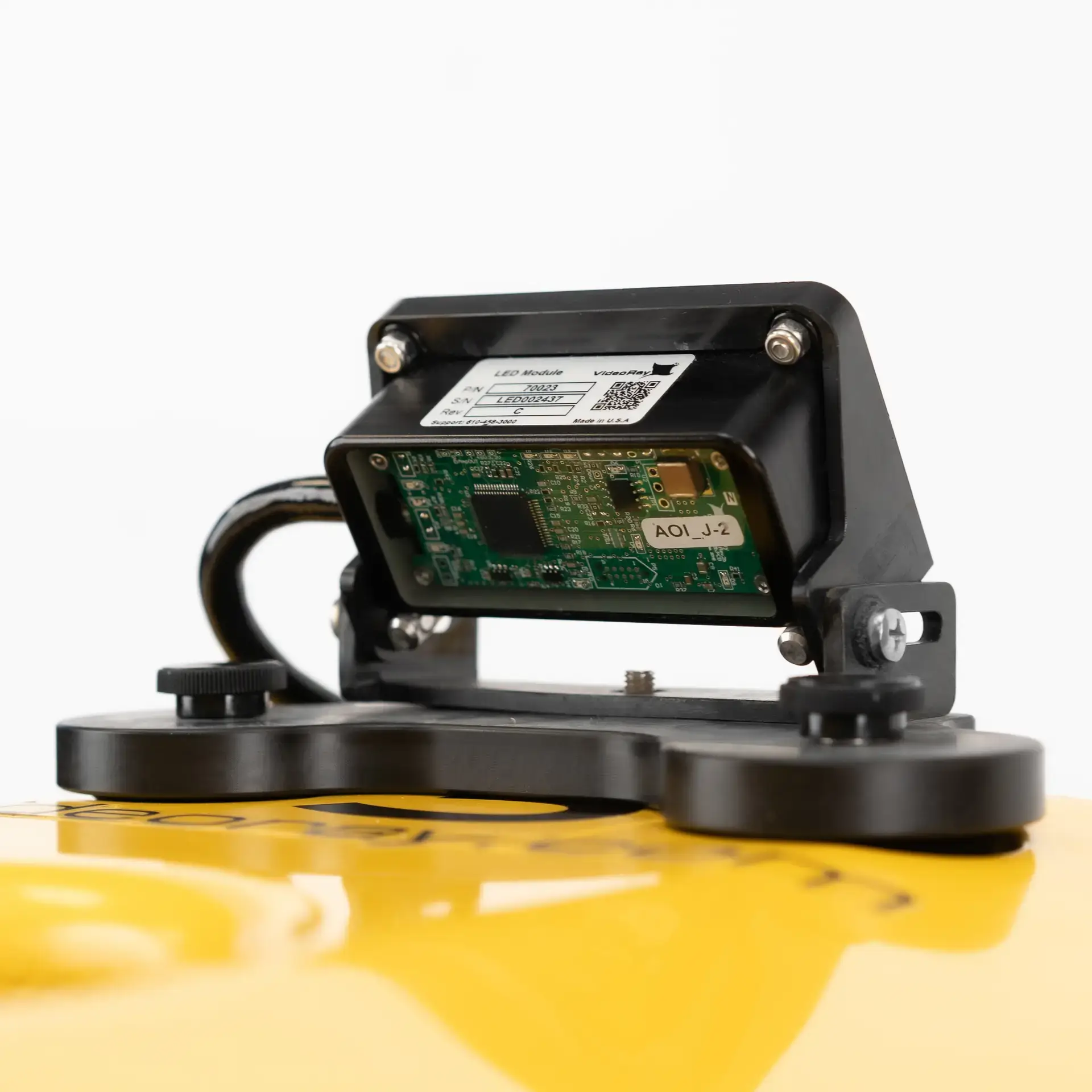

Designed for quick mounting across the MSS range, its lightweight, compact form ensures optimal placement on the vehicle without affecting hydrodynamics.
Built for operational resilience, the unit can be removed and replaced with ease—minimising downtime and simplifying maintenance in the field.
The light’s beam geometry is engineered to minimise backscatter and enhance visibility when paired with the MSS camera, improving image clarity in turbid waters.
With high lumen output and dual beam modes, operators gain a clearer view in low-light or murky conditions—enabling more accurate inspections and safer navigation.
The ability to adjust brightness and beam type mid-dive ensures the lighting is always suited to the task—whether illuminating wide structures or targeting specific inspection points.
Its robust, modular design means lights can be quickly swapped or serviced in the field—keeping missions on track and minimising disruption.
2,000 meters (6,500 feet)
Dimensions: 7.6 cm x 7 cm x 2.8 cm (3.0 inches x 2.75 inches x 1.12 inches) not including cable
Weight in Air: 0.14 kg (0.31 pounds)
Weight in Water: 0.09 kg (0.10 pounds)
5-Pin Male / Female Connector (Stackable)
48 VDC at 76 Watt
RS-485 Galvanically Isolated Control
Input Voltage
Input Current Total
Internal Temperature
3,000 K CCT, 80 CRI White
2,880 Calculated minimum flux (lm) per array, 5,760 total lm per light module

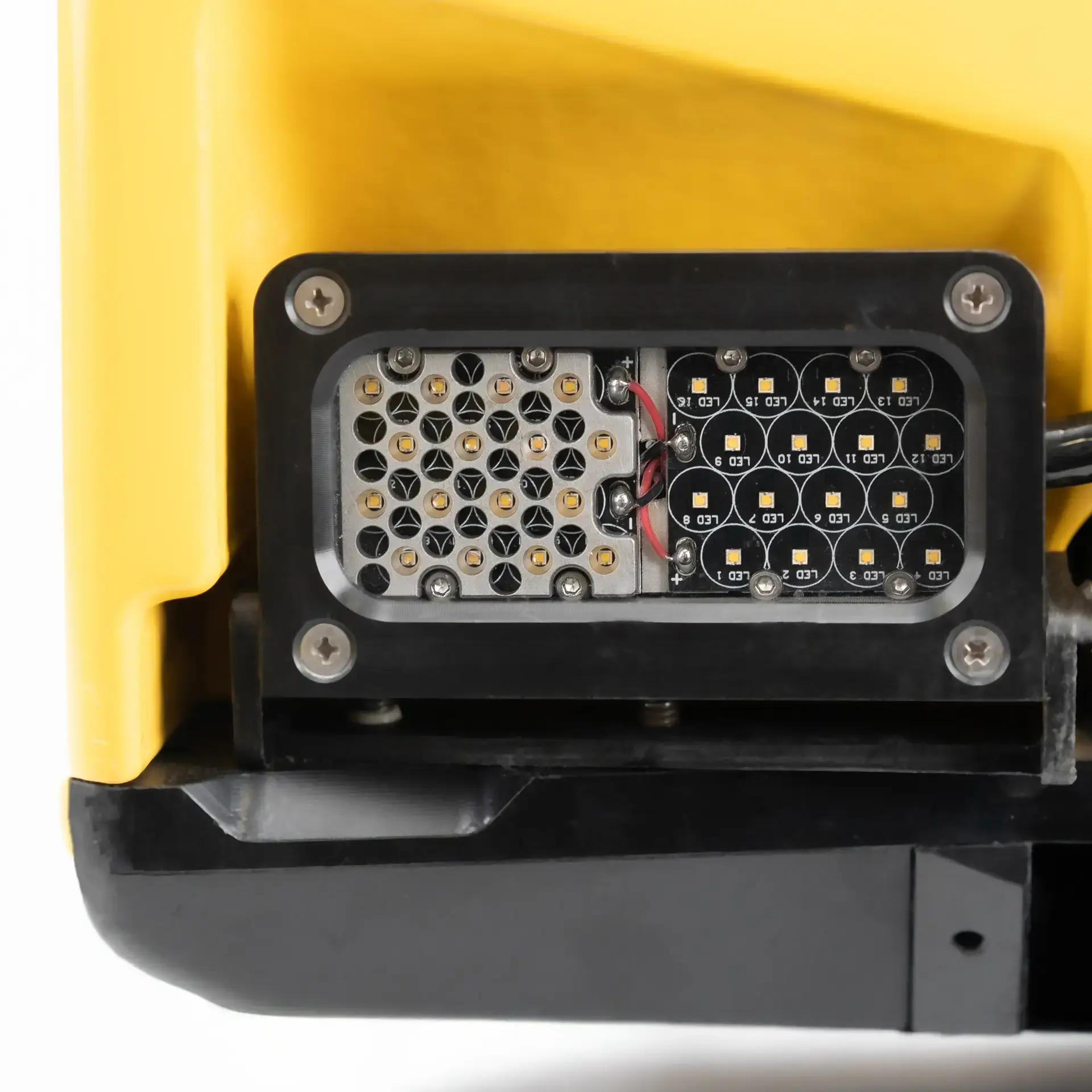

Individually Controlled Arrays (16 emitters per array, 32 total)
60 Degree Spot Beam
110 Degree Flood Beam
Hard Anodized, Potted Housing
£25 per item to the UK.
