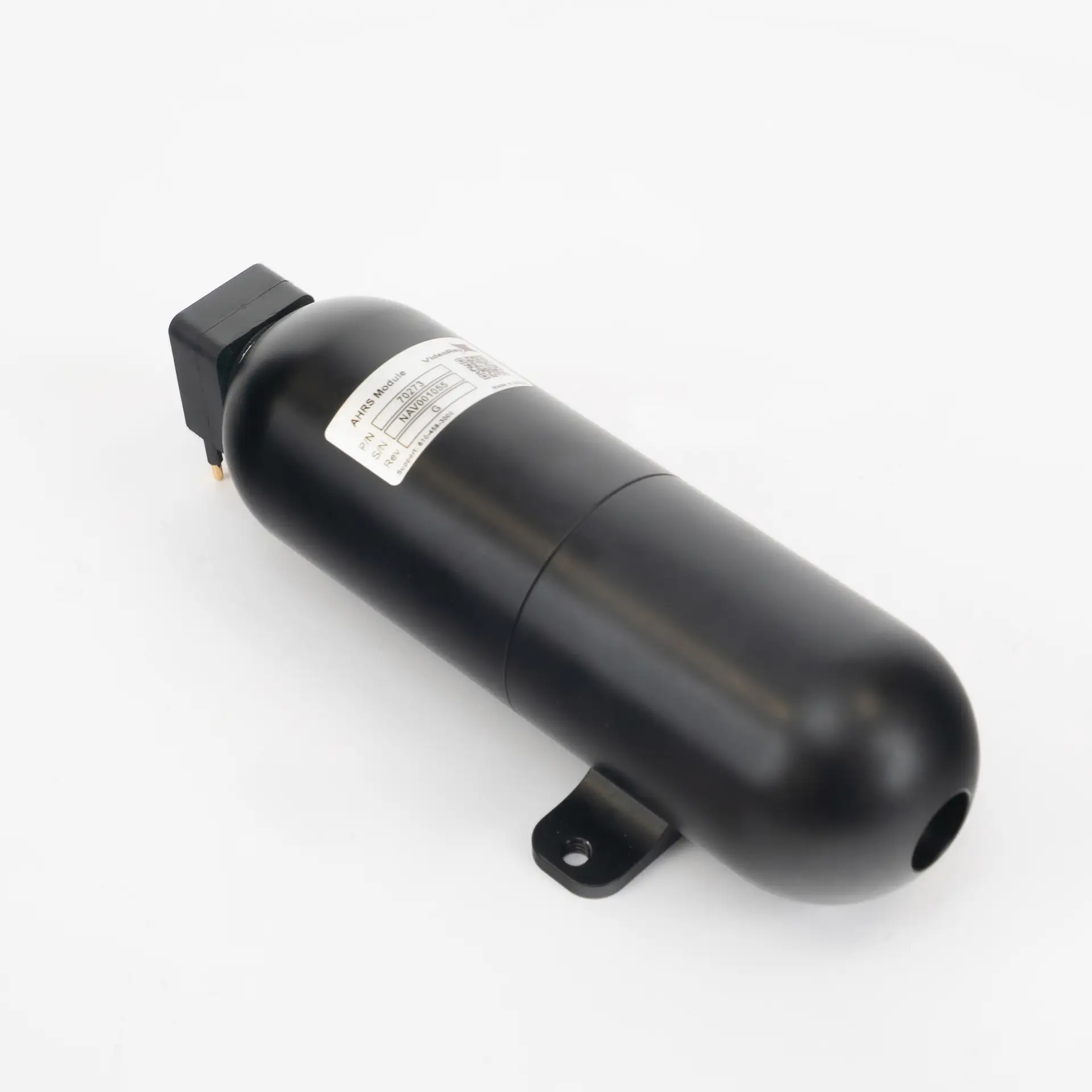

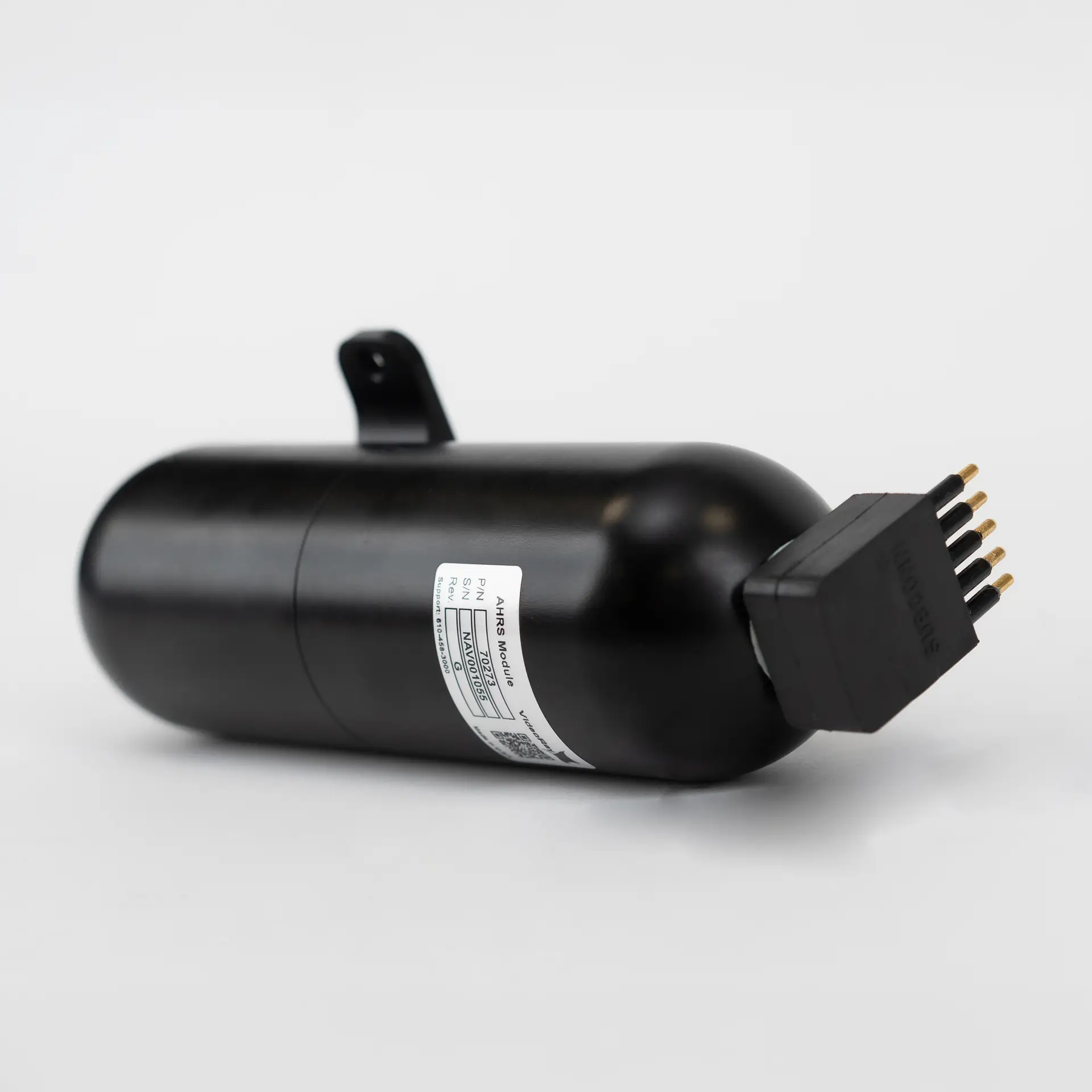

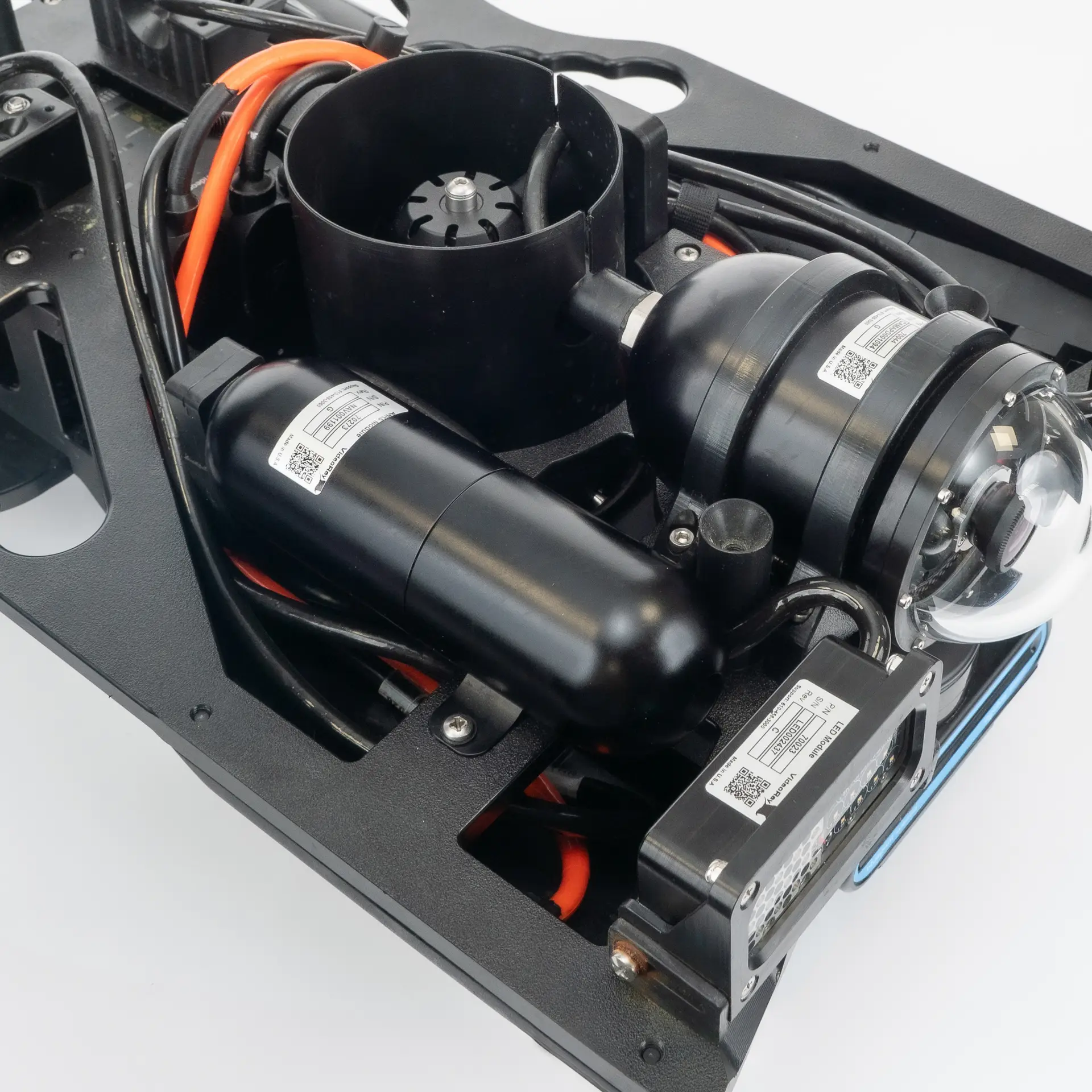

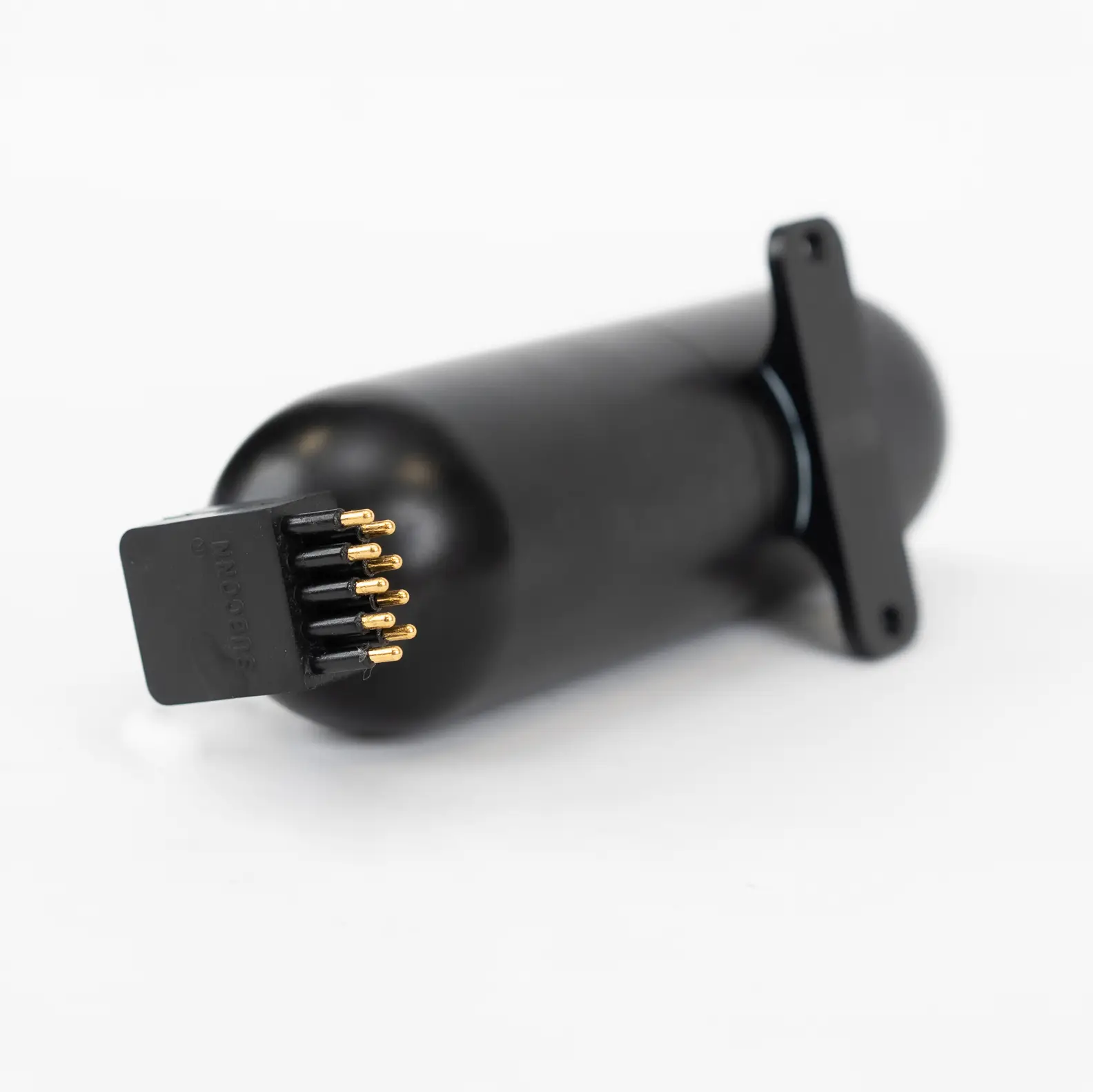

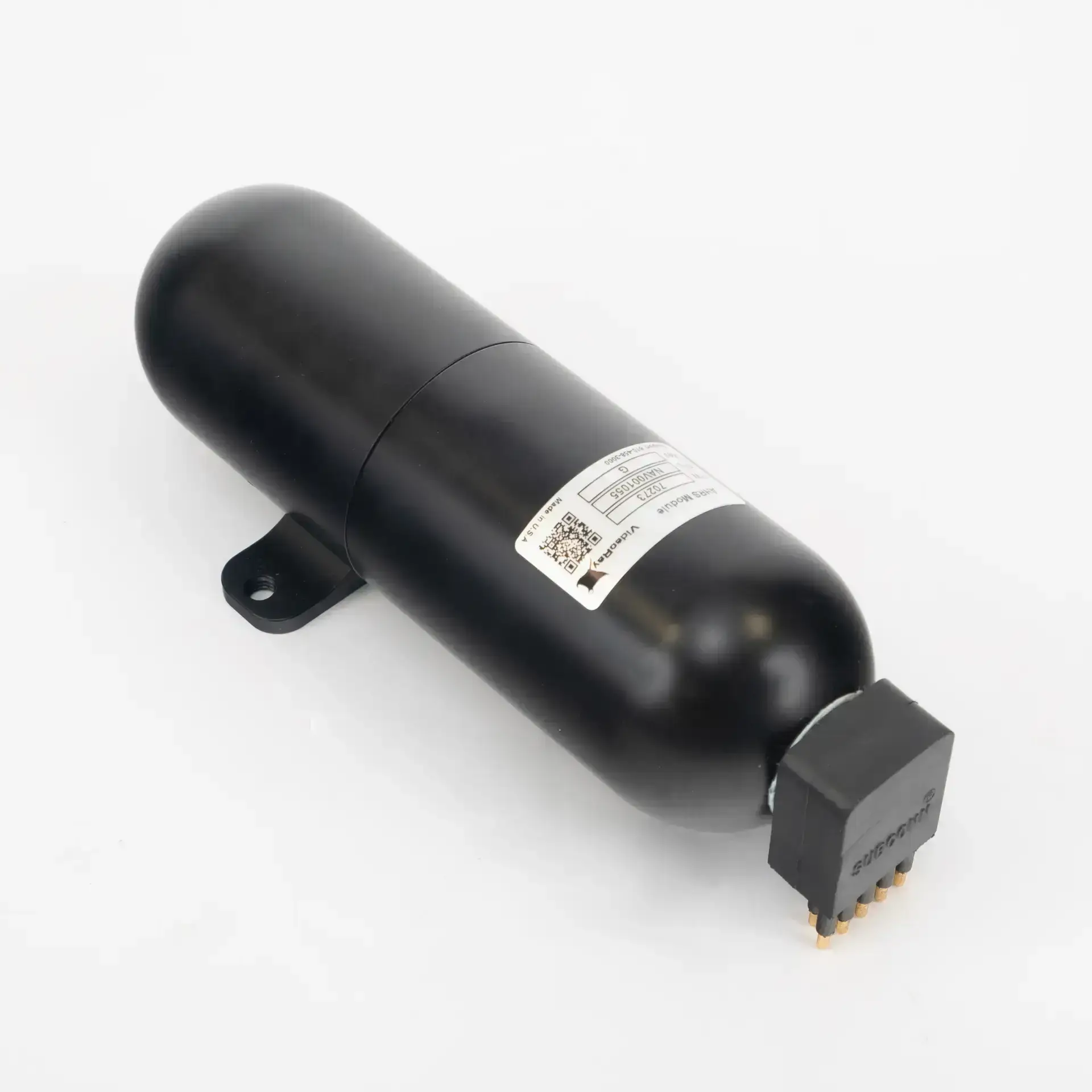

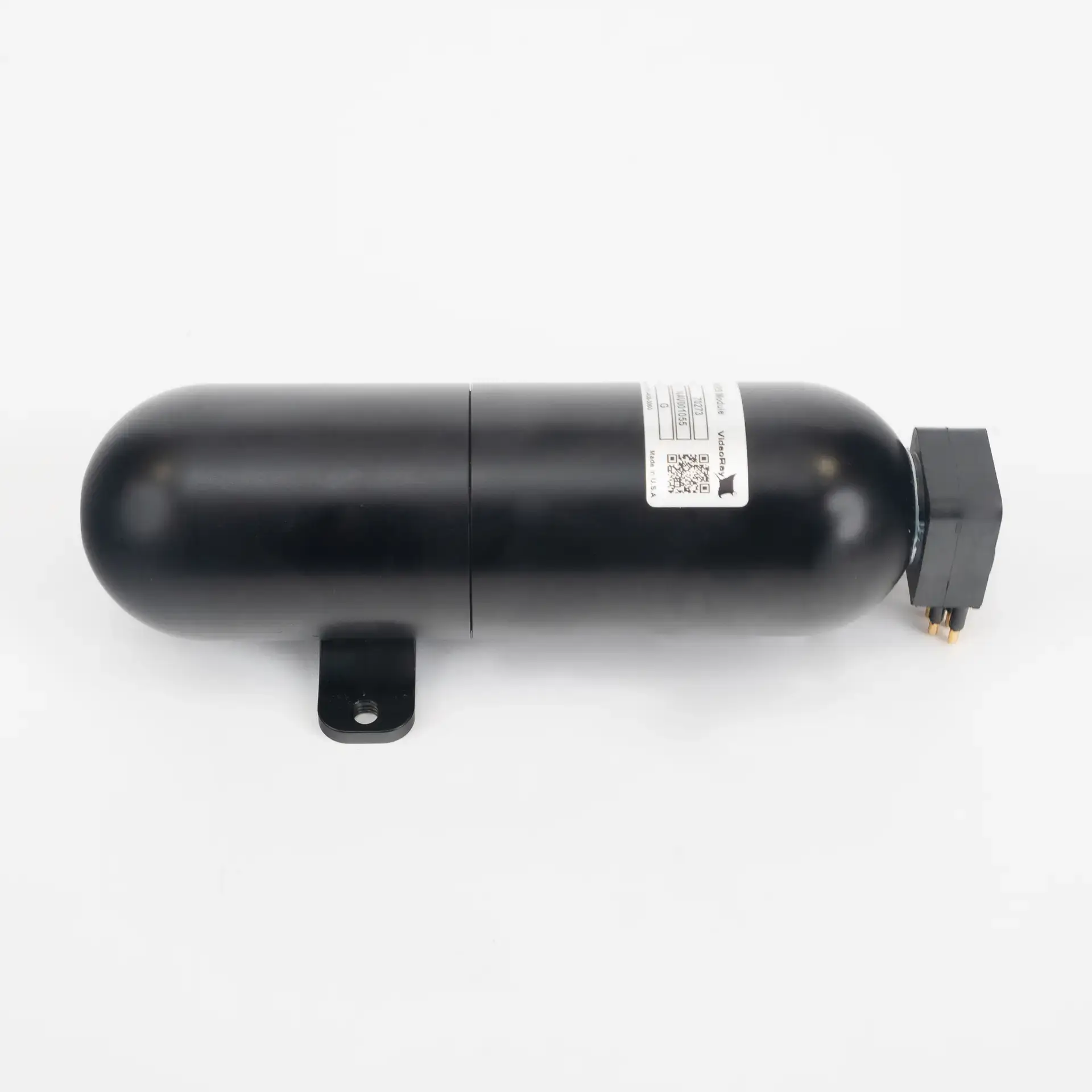

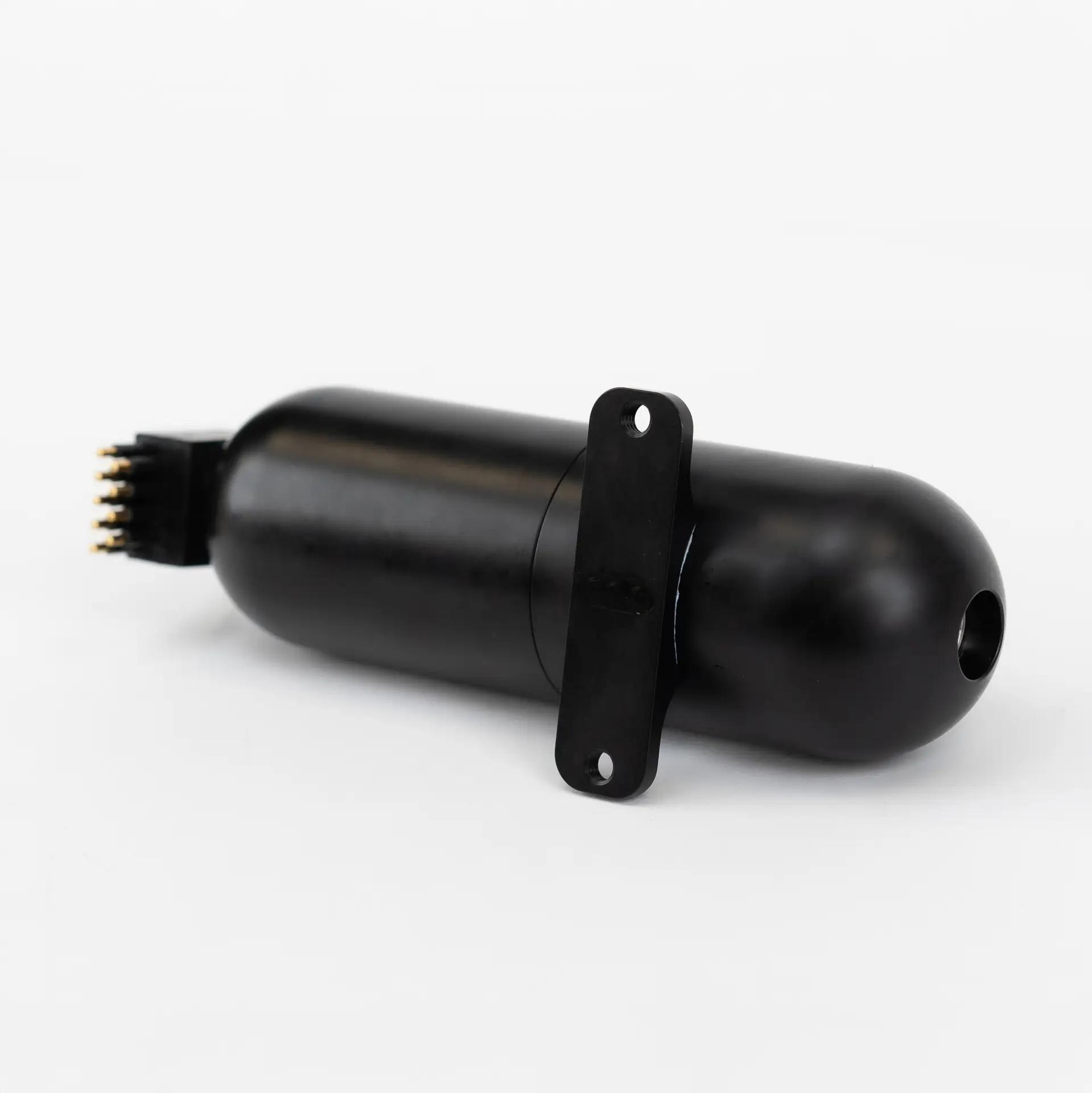

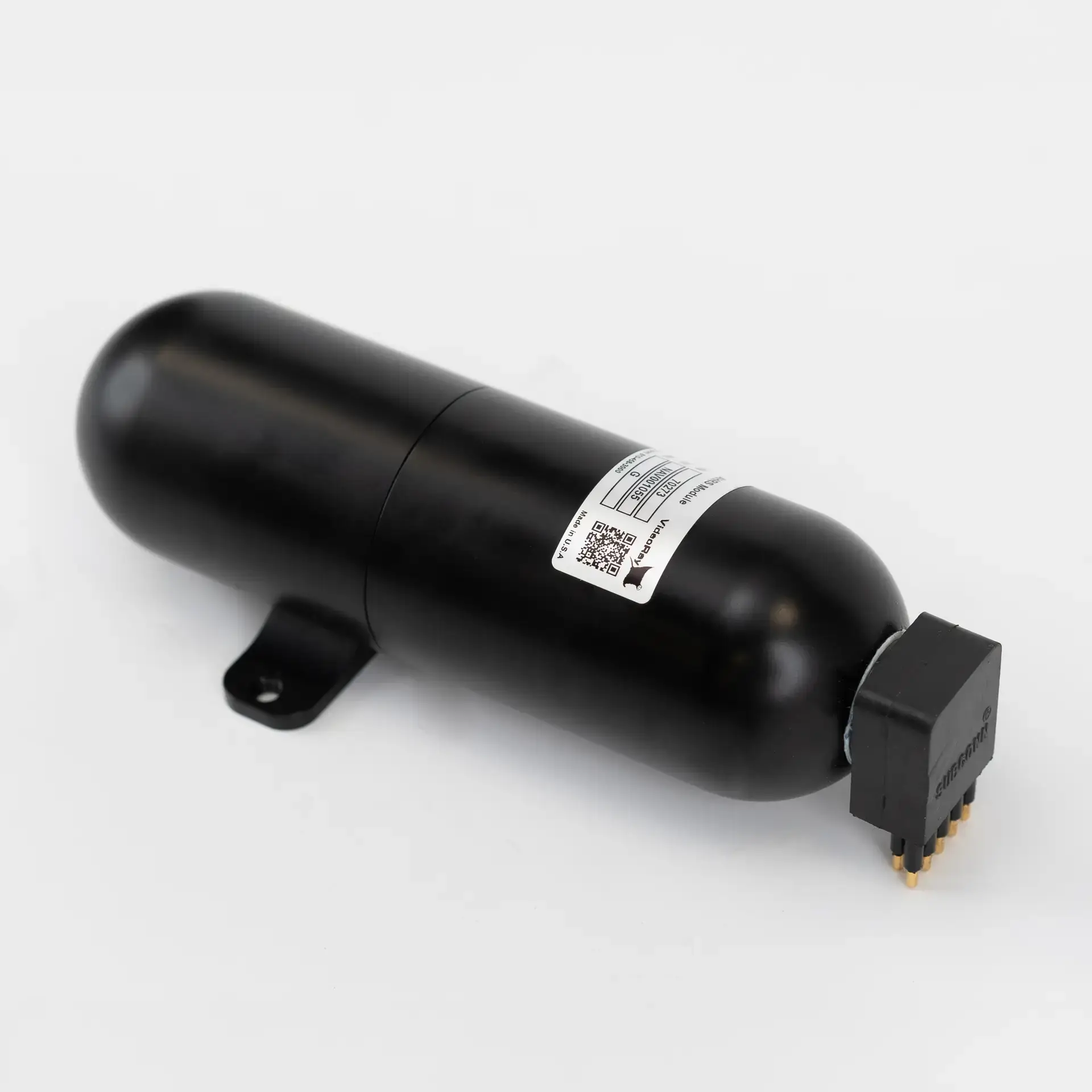

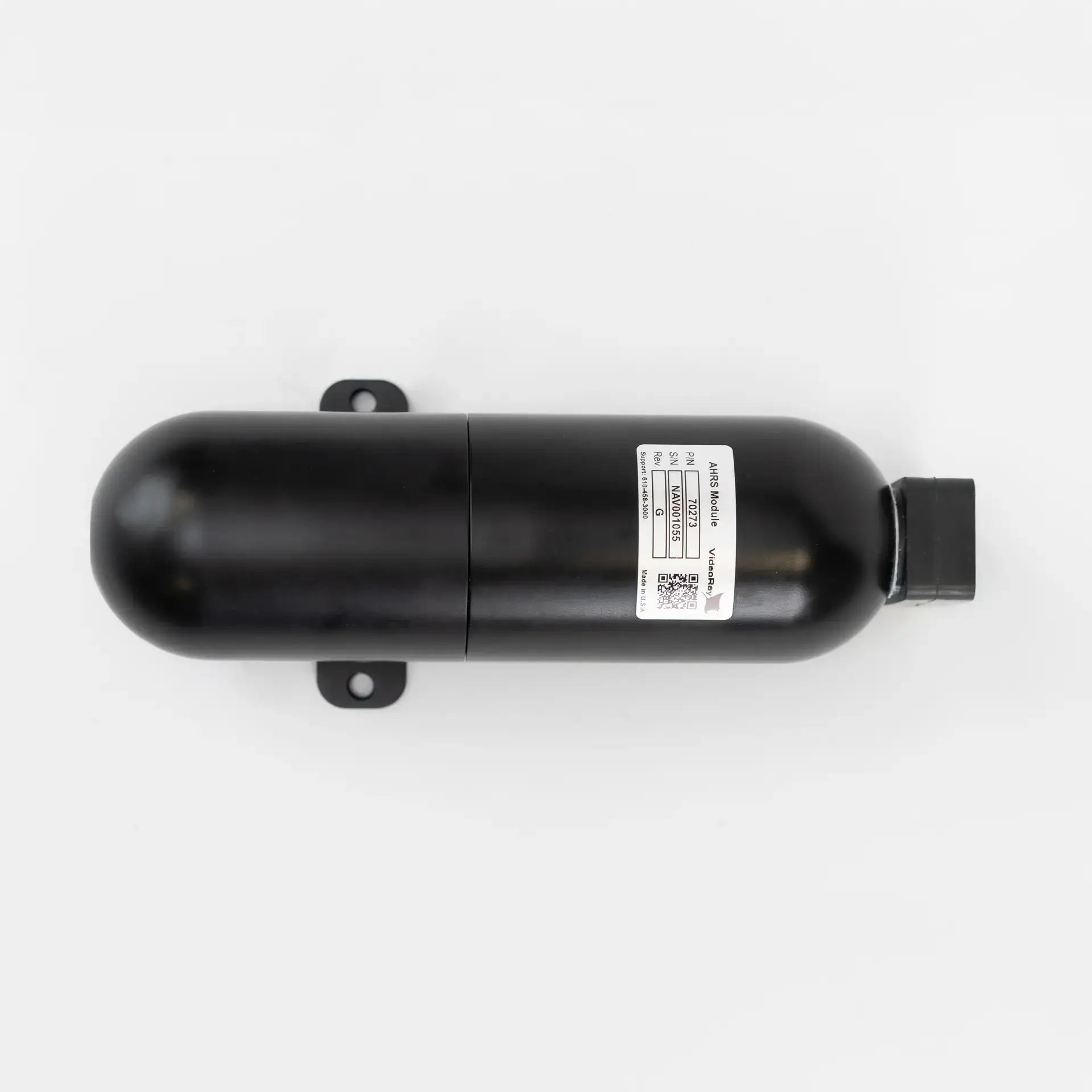

The Mission Specialist AHRS module (Attitude and Heading Reference System), also referred to as an IMU (Inertial Measurement Unit), provides feedback on the submersible’s orientation. Measurements include magnetic heading, attitude (pitch and roll) and rates of change. The AHRS module also includes a pressure sensor to determine depth.
See the Mission Specialist range for the vehicles it supports.
Combines accelerometer, gyroscope, and magnetometer data for accurate real-time orientation feedback across all axes.
Enables precise heading determination, essential for navigation and mission planning in subsea environments.
Delivers static pitch and roll readings within ±0.2°, and dynamic measurements within ±0.5°—ensuring confident control during movement.
Measures yaw with an accuracy of ±1.0°, supporting consistent heading alignment and directional awareness.
Includes a pressure-based sensor rated to 100 Bar as standard (with a 400 Bar option), providing accurate depth data across a wide range of operating conditions.
Features a gyro bias stability of just 18°/hour, delivering low-drift performance for longer-duration missions.
By combining heading, pitch, roll, and depth data, the AHRS module provides reliable real-time orientation—crucial for maintaining precise positioning in dynamic underwater environments.
With high-resolution motion sensing and low drift, operators can trust the data for steady piloting, even during extended operations or in low-visibility conditions.
The module’s compact, all-in-one design delivers essential telemetry—reducing the need for multiple sensors and simplifying ROV system architecture.
9 DOF IMU and Magnetic Compass
Pressure-based depth sensor – 100 Bar, with 400 Bar optional
0.2° Static Roll/Pitch
0.5° Dynamic Roll/Pitch
1.0° Yaw
18°/h Gyro Bias Stability
